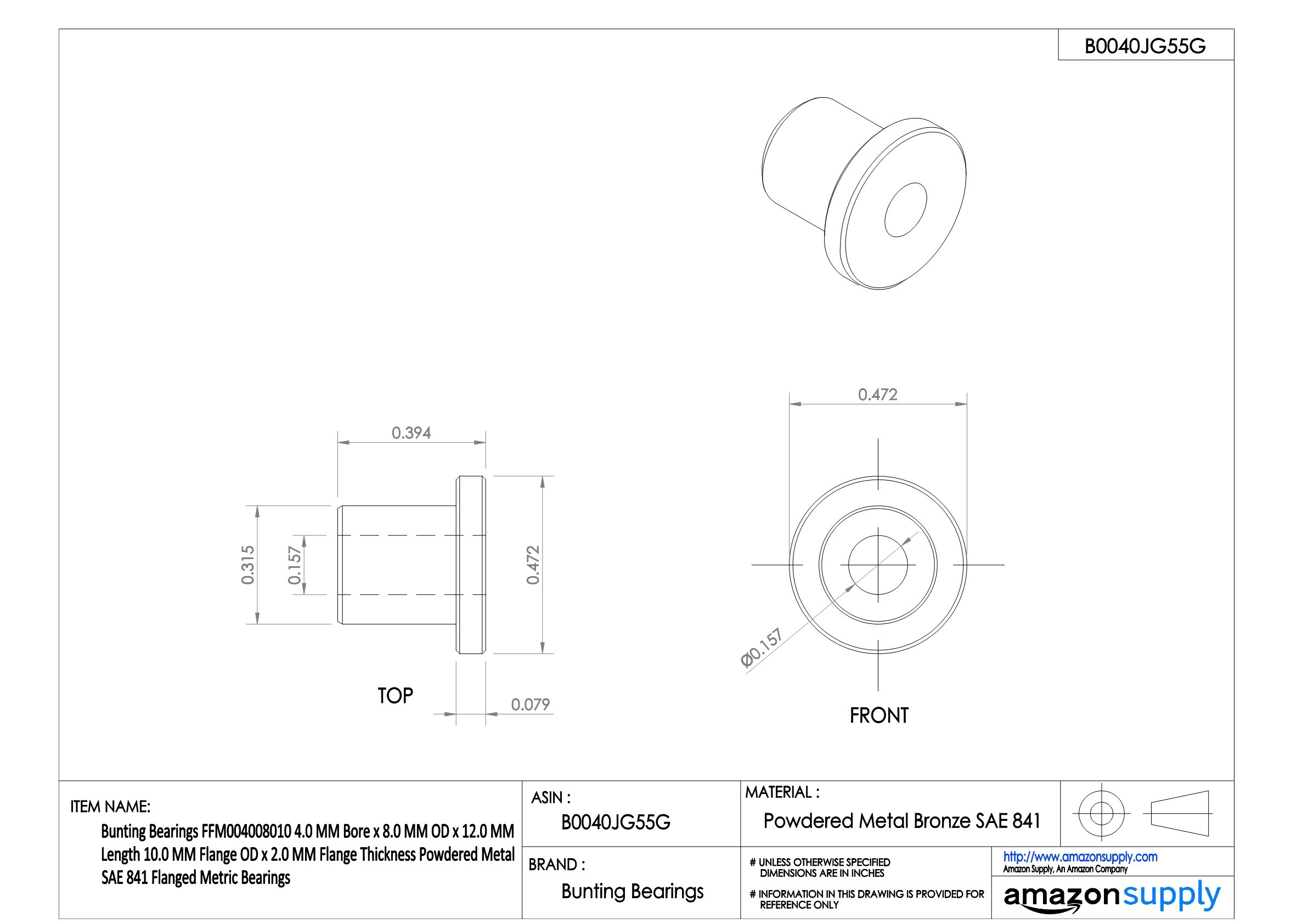

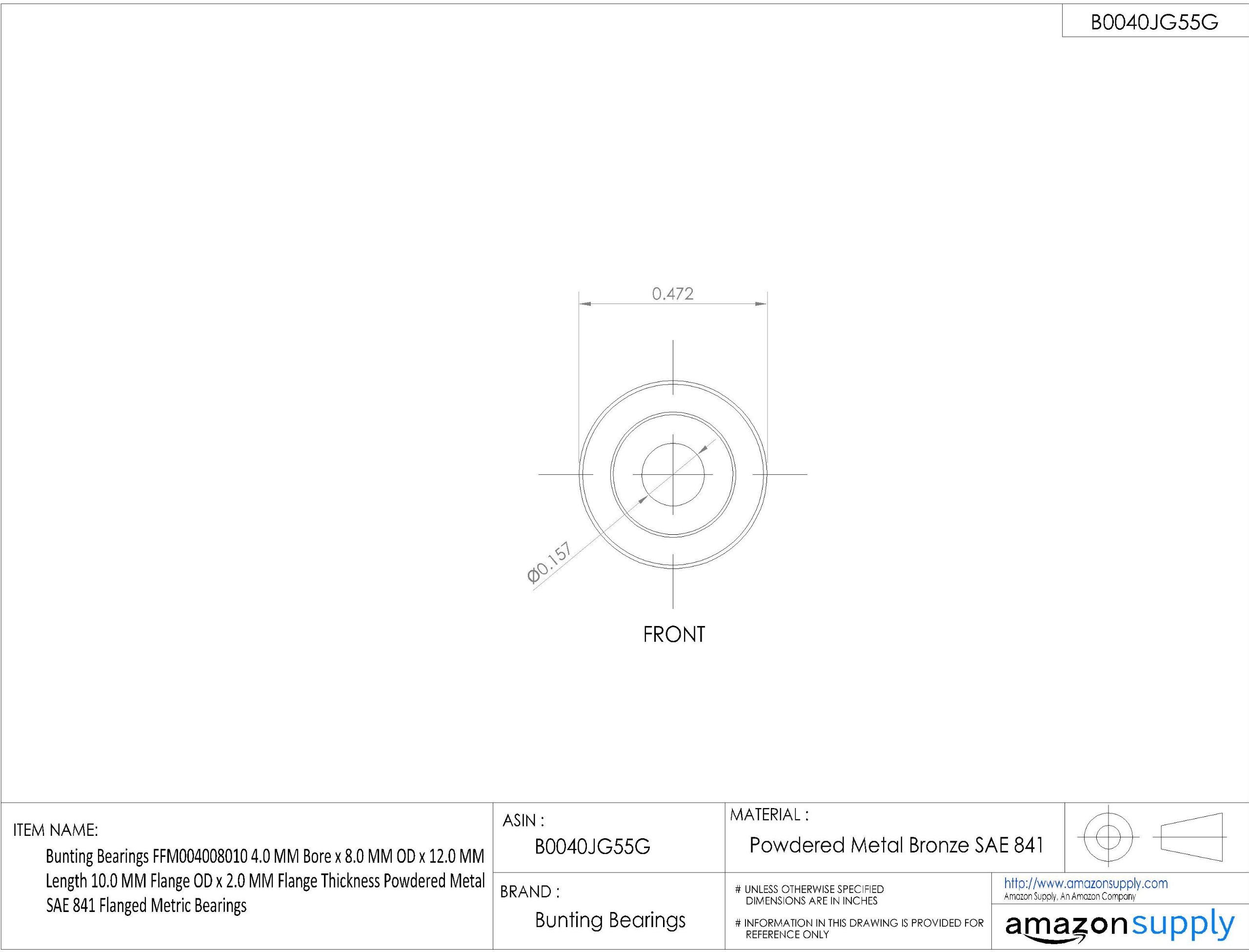

Bunting Bearings FFM004008010 4.0 MM Bore x 8.0 MM OD x 12.0 MM Length 10.0 MM Flange OD x 2.0 MM Flange Thickness Powdered Metal SAE 841 Flanged Metric Bearings

Be the first to review this item

ASIN B0040JG55G

Specifications for this item
Overall Width
12.0  millimeters
Bore Diameter
4.0  millimeters
Bearing Number
FFM004008010
Part Number
FFM004008010
Brand Name
Bunting Bearings
Number of Items
1
Bore Diameter Tolerance
+0.0040/+0.0160  millimeters
Material Type
Powdered Metal Bronze
Outside Diameter
8.0  millimeters
Upper Temperature Range
220  Degrees Fahrenheit
Outside Diameter Tolerance
+0.0230/+0.0380  millimeters
Flange Thickness
2.0  millimeters
System of Measurement
Metric
Overall Length
12.0  millimeters
Price:
$3.51
Quantity:

In Stock (6)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 13 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Self Lubricating Bronze Bearing; SAE 30 Oil provides ideal lubrication in most applications^Large Working Temperature Range, 10 F to 220 F^Conformance to ASTM chemical and physical properties^Non Magnetic^Corrosion resistant

Package Details

Shipping Weight: 0.01 pounds
Package Size: 2 x 1 x 0.5 inches

Product Description

Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
