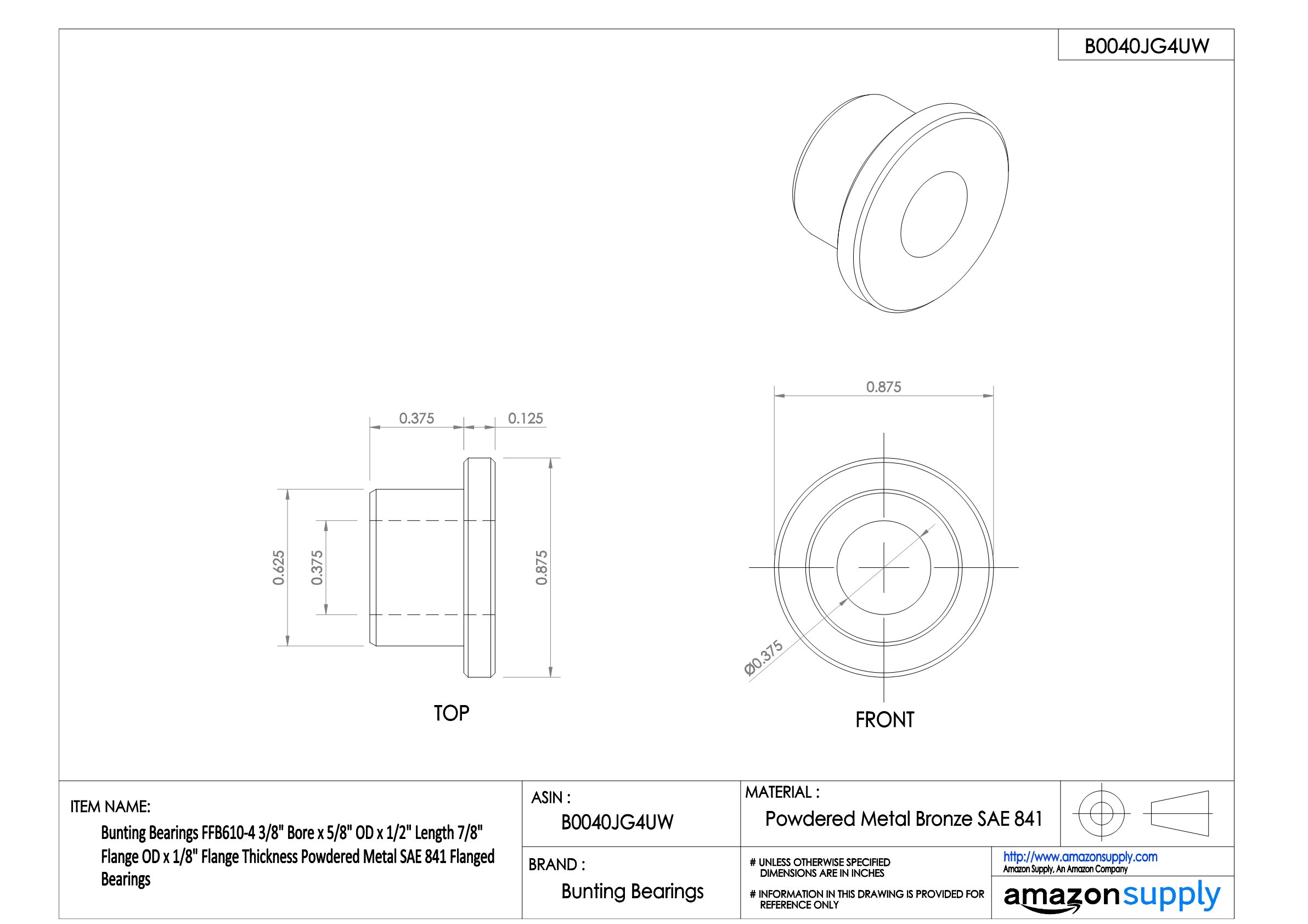

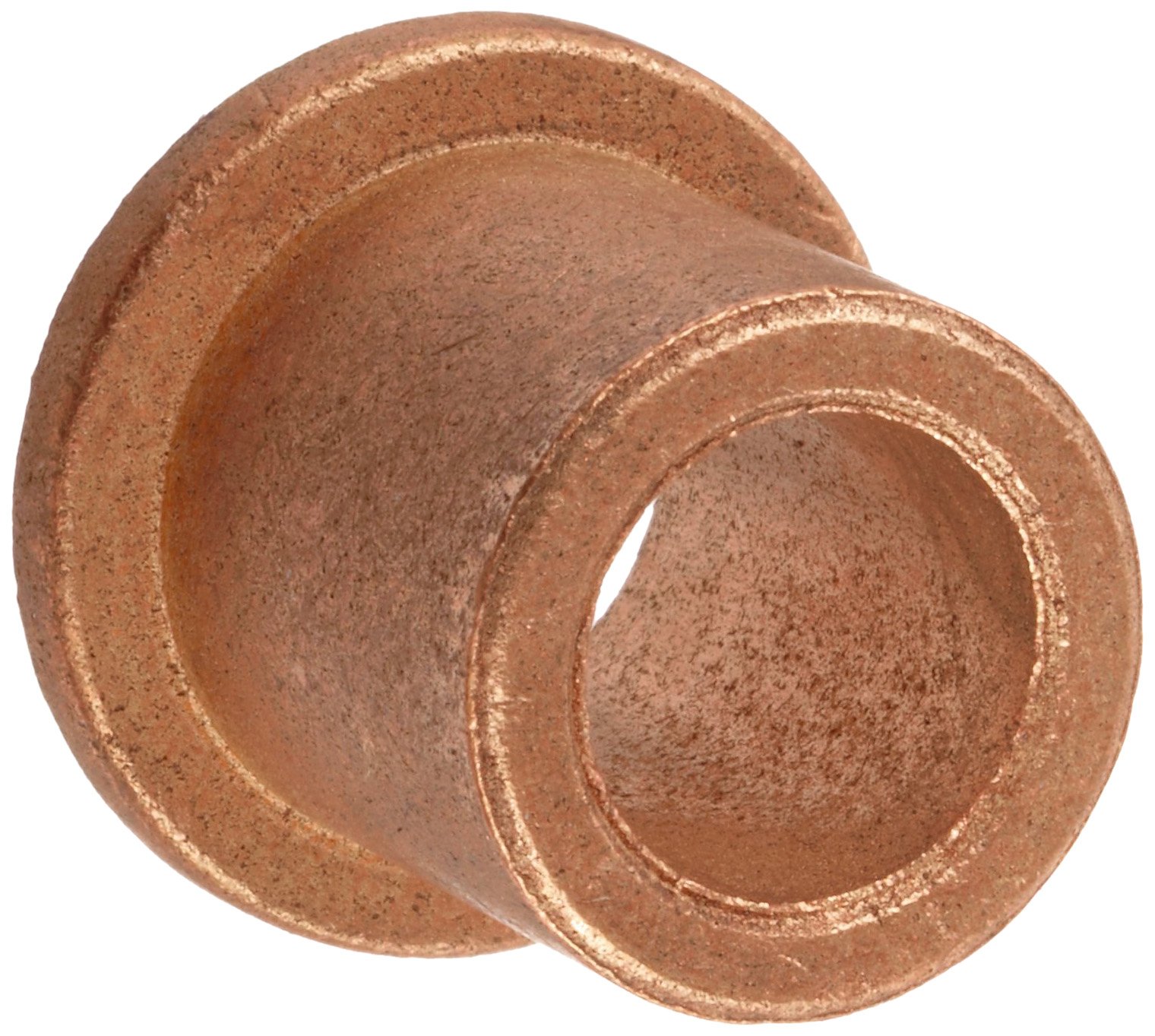

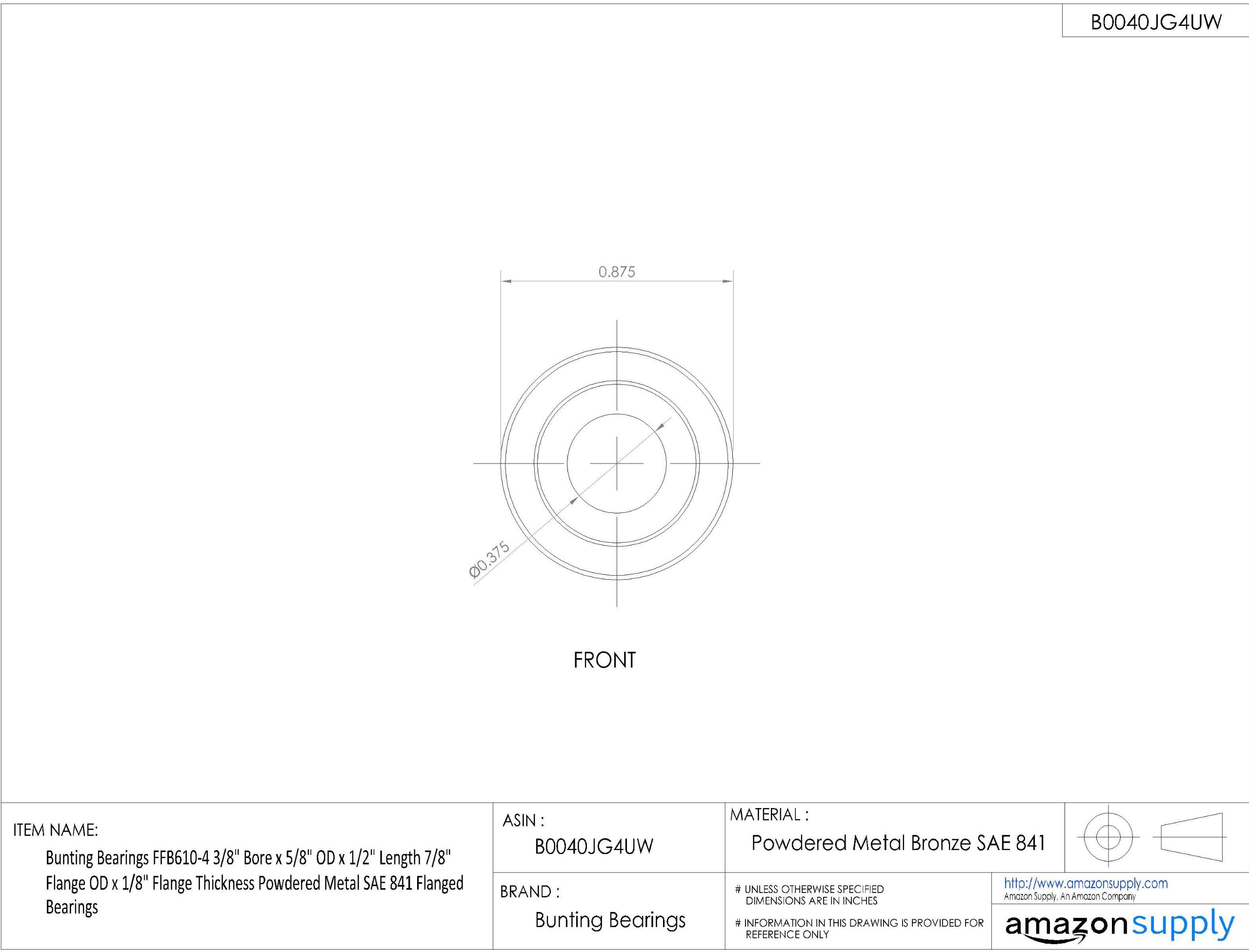

Bunting Bearings FFB610-4 3/8" Bore x 5/8" OD x 1/2" Length 7/8" Flange OD x 1/8" Flange Thickness Powdered Metal SAE 841 Flanged Bearings
Be the first to review this item
ASIN B0040JG4UW
Specifications for this item
- Bearing Number
- FFB610-4
- Bore Diameter
- 3/8 inches
- Bore Diameter Tolerance
- +0.0010/+0.0020 inches
- Brand Name
- Bunting Bearings
- EAN
- 0717905091537
- Flange OD
- 7/8 inches
- Flange Thickness
- 1/8 inches
- Length
- 1/2 inches
- Material Type
- Powdered Metal Bronze
- Number of Items
- 1
- Outside Diameter
- 5/8 inches
- Outside Diameter Tolerance
- +0.0010/+0.0020 inches
- Part Number
- FFB610-4
- System of Measurement
- Inch
- UPC
- 717905091537
- Upper Temperature Range
- 220 Degrees Fahrenheit
- Width
- 1/2 inches
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 3 hours 59 minutes and choose One-Day Shipping at checkout.
Key Features
- Self Lubricating Bronze Bearing; SAE 30 Oil provides ideal lubrication in most applications^Large Working Temperature Range, 10 F to 220 F^Conformance to ASTM chemical and physical properties^Non Magnetic^Corrosion resistant
Package Details
Shipping Weight:
0.1 pounds
Package Size:
2.7 x 1 x 0.5 inches
Product Description
Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
