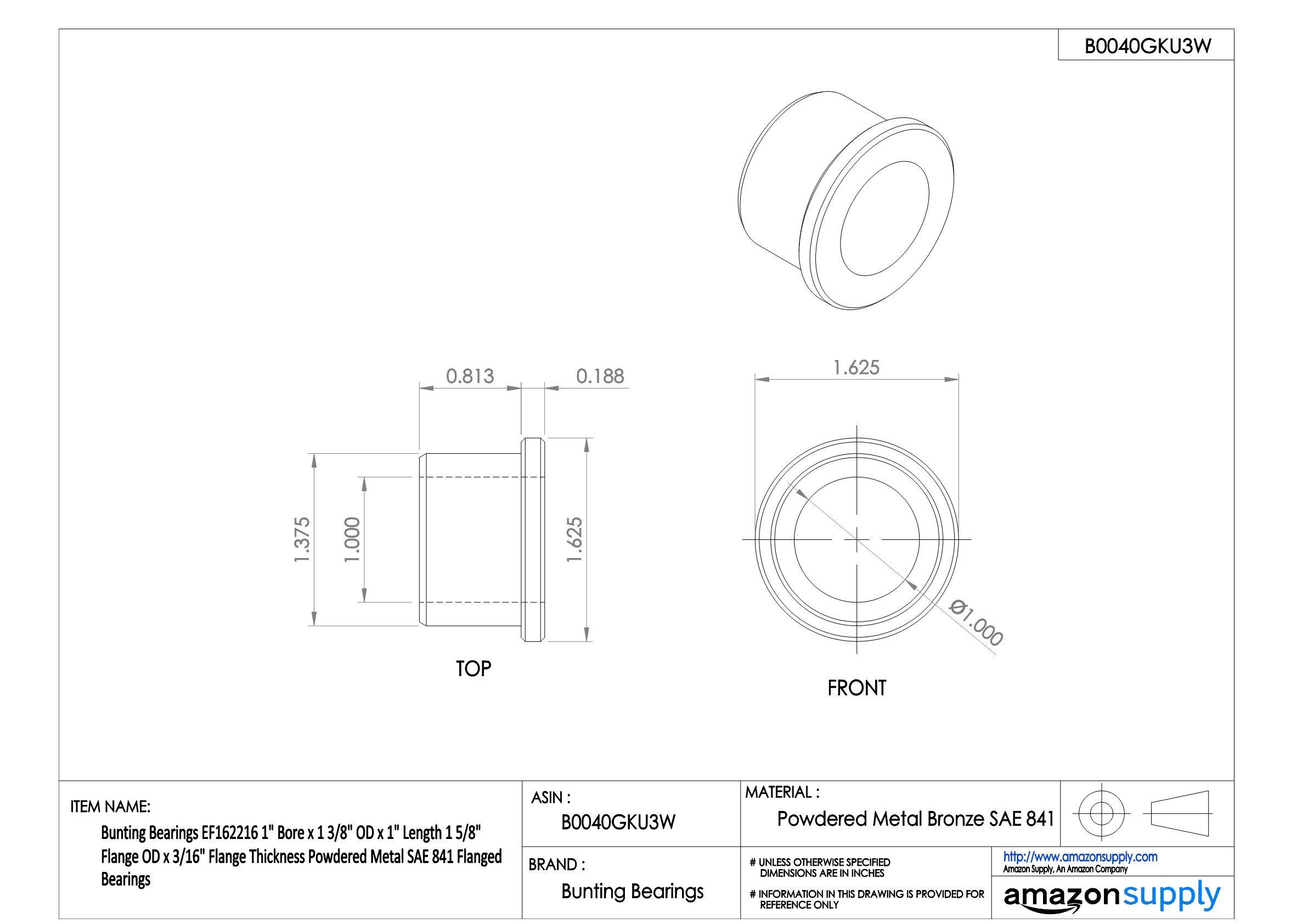

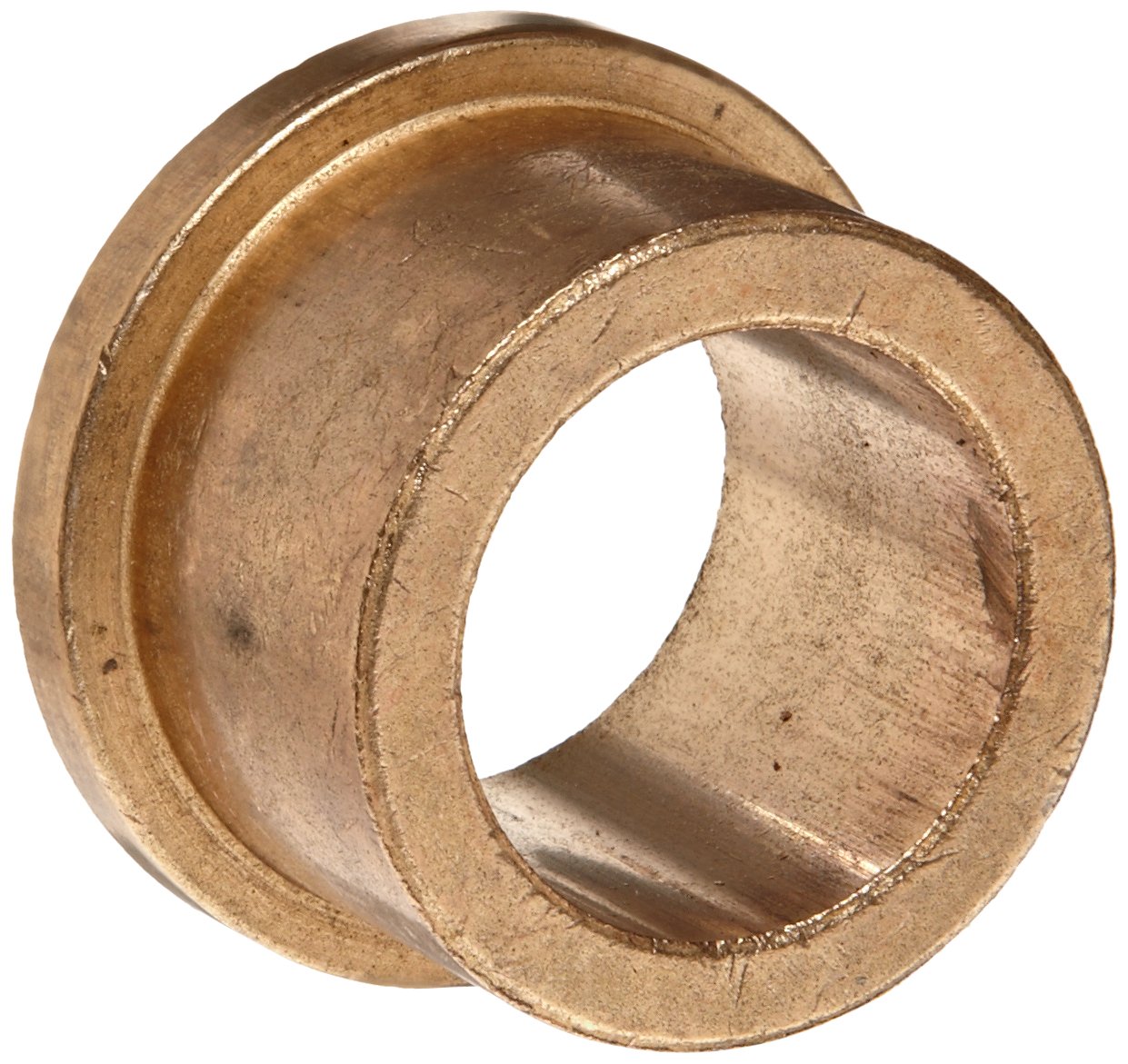

Bunting Bearings EF162216 Flanged Bearings, Powdered Metal SAE 841, 1" Bore x 1 3/8 " OD x 1 " Length 1 5/8 " Flange OD x 3/16 " Flange Thickness (3 Pack)

Be the first to review this item


Specifications for this item
Overall Width
1  inches
Flange Outside Diameter
1 5/8  inches
Bore Diameter
1  inches
Bearing Number
Part Number
Brand Name
Bunting Bearings
Number of Items
Bore Diameter Tolerance
+0.0020/+0.0030  inches
Material Type
Powdered Metal Coppered Iron
Outside Diameter
1 3/8  inches
Outside Diameter
1 3/8  inches
Upper Temperature Range
220  Degrees Fahrenheit
Outside Diameter Tolerance
+0.0030/+0.0040  inches
Flange Thickness
3/16  inches
Overall Length
1  inches
System of Measurement

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Self Lubricating Bronze Bearing. SAE 30 Oil provides ideal lubrication in most applications
  • Large Working Temperature Range 10 F to 220 F
  • Conformance to ASTM chemical and physical properties
  • Non Magnetic
  • Corrosion resistant
  • Self Lubricating Bronze Bearing; SAE 30 Oil provides ideal lubrication in most applications^Large Working Temperature Range, 10 F to 220 F^Conformance to ASTM chemical and physical properties^Non Magnetic^Corrosion resistant

Package Details

Shipping Weight: 0.3 pounds
Package Size: 3.3 x 2.1 x 0.4 inches

Product Description

Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
