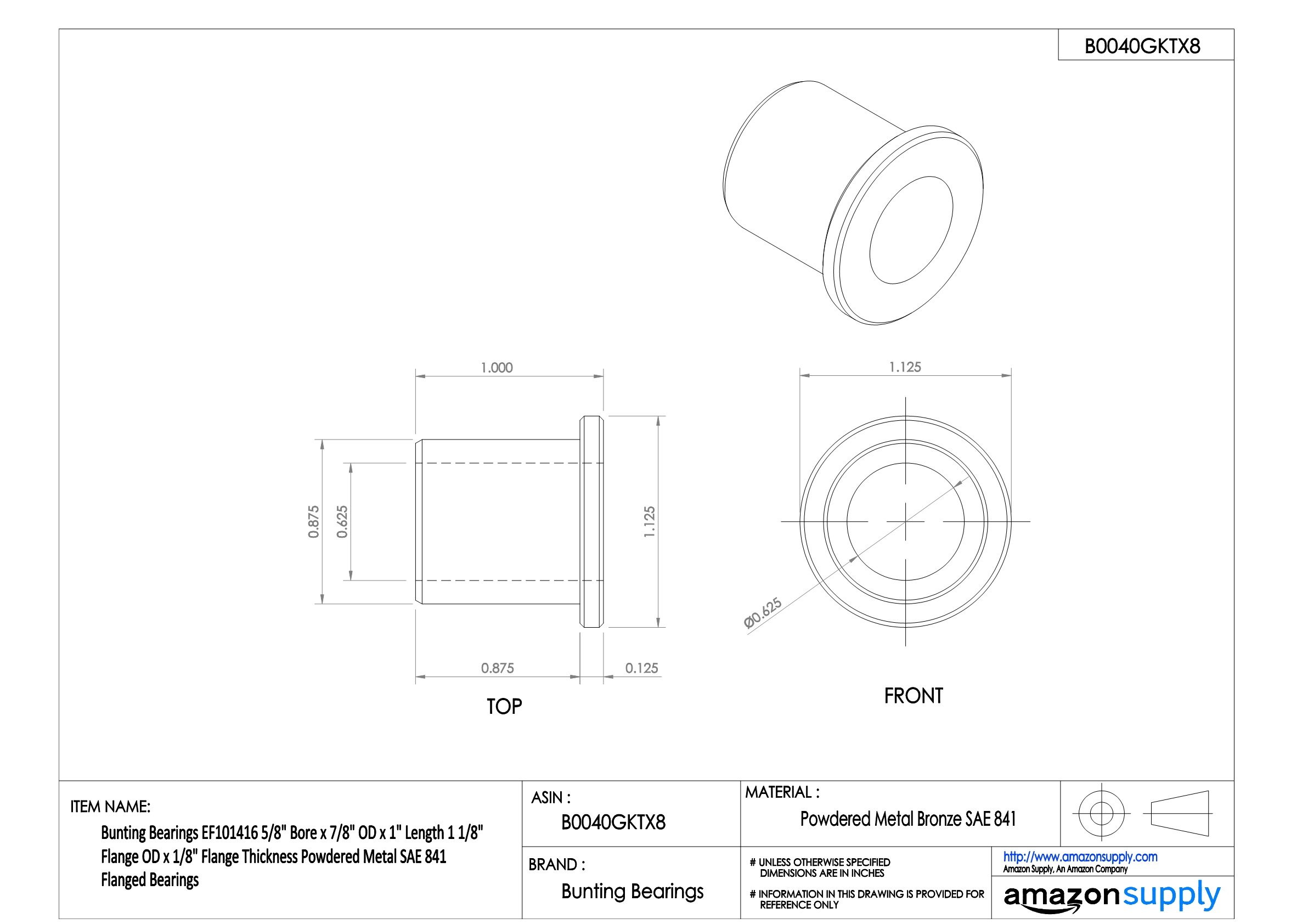

Bunting Bearings EF101416 5/8" Bore x 7/8" OD x 1" Length 1 1/8" Flange OD x 1/8" Flange Thickness Powdered Metal SAE 841 Flanged Bearings

Be the first to review this item

ASIN B0040GKTX8

Specifications for this item
Overall Width
1  inches
Bore Diameter
5/8  inches
Flange Outside Diameter
1 1/8  inches
Bearing Number
EF101416
Part Number
EF101416
Brand Name
Bunting Bearings
Number of Items
1
Bore Diameter Tolerance
+0.0010/+0.0020  inches
Material Type
Powdered Metal Bronze
Outside Diameter
7/8  inches
Upper Temperature Range
220  Degrees Fahrenheit
Outside Diameter Tolerance
+0.0030/+0.0040  inches
Flange Thickness
1/8  inches
System of Measurement
Inch
Overall Length
1  inches
Price:
$2.46
Quantity:

In Stock (12)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 18 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Self Lubricating Bronze Bearing; SAE 30 Oil provides ideal lubrication in most applications^Large Working Temperature Range, 10 F to 220 F^Conformance to ASTM chemical and physical properties^Non Magnetic^Corrosion resistant

Package Details

Shipping Weight: 0.05 pounds
Package Size: 2.3 x 2 x 0.2 inches

Product Description

Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
