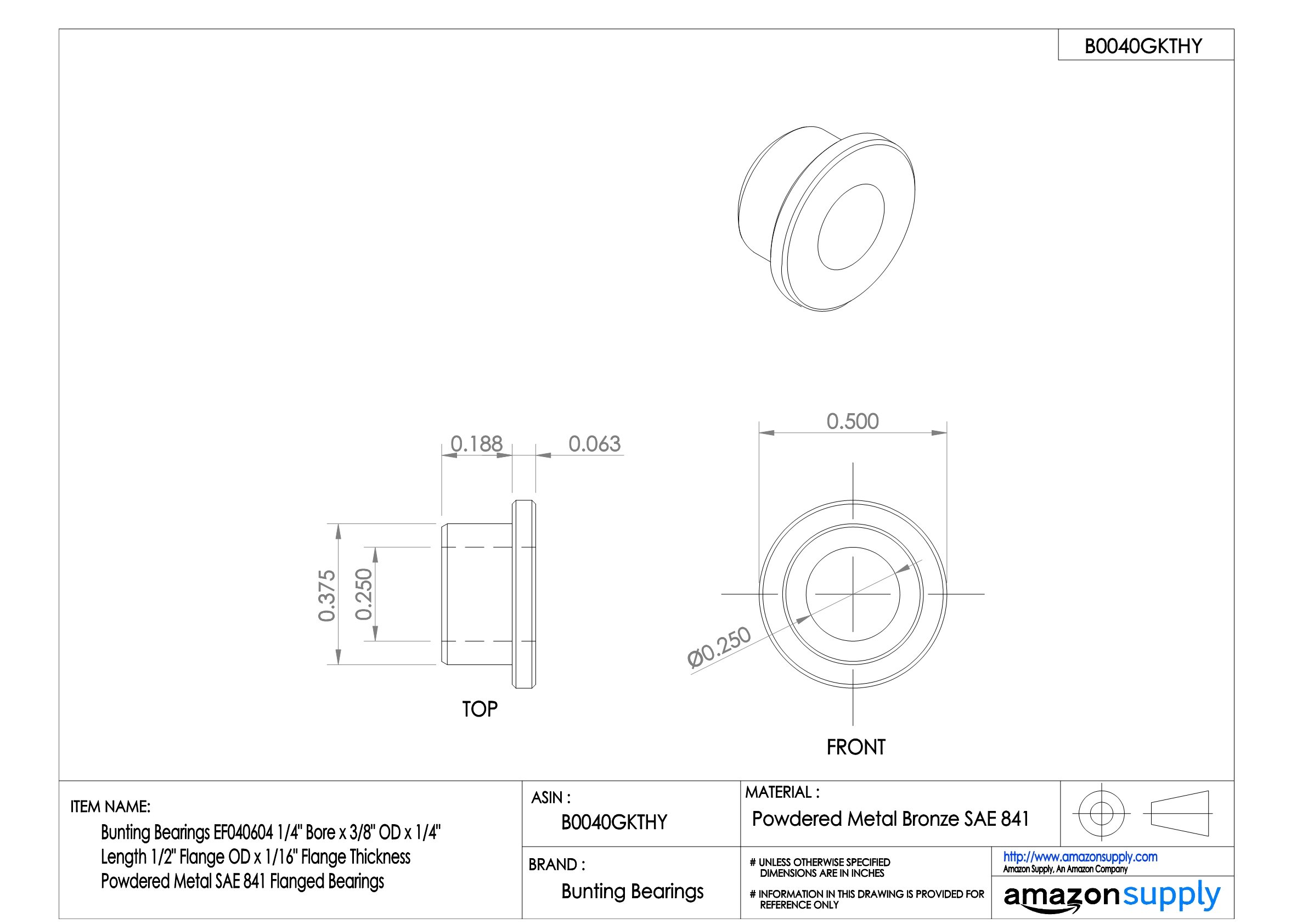

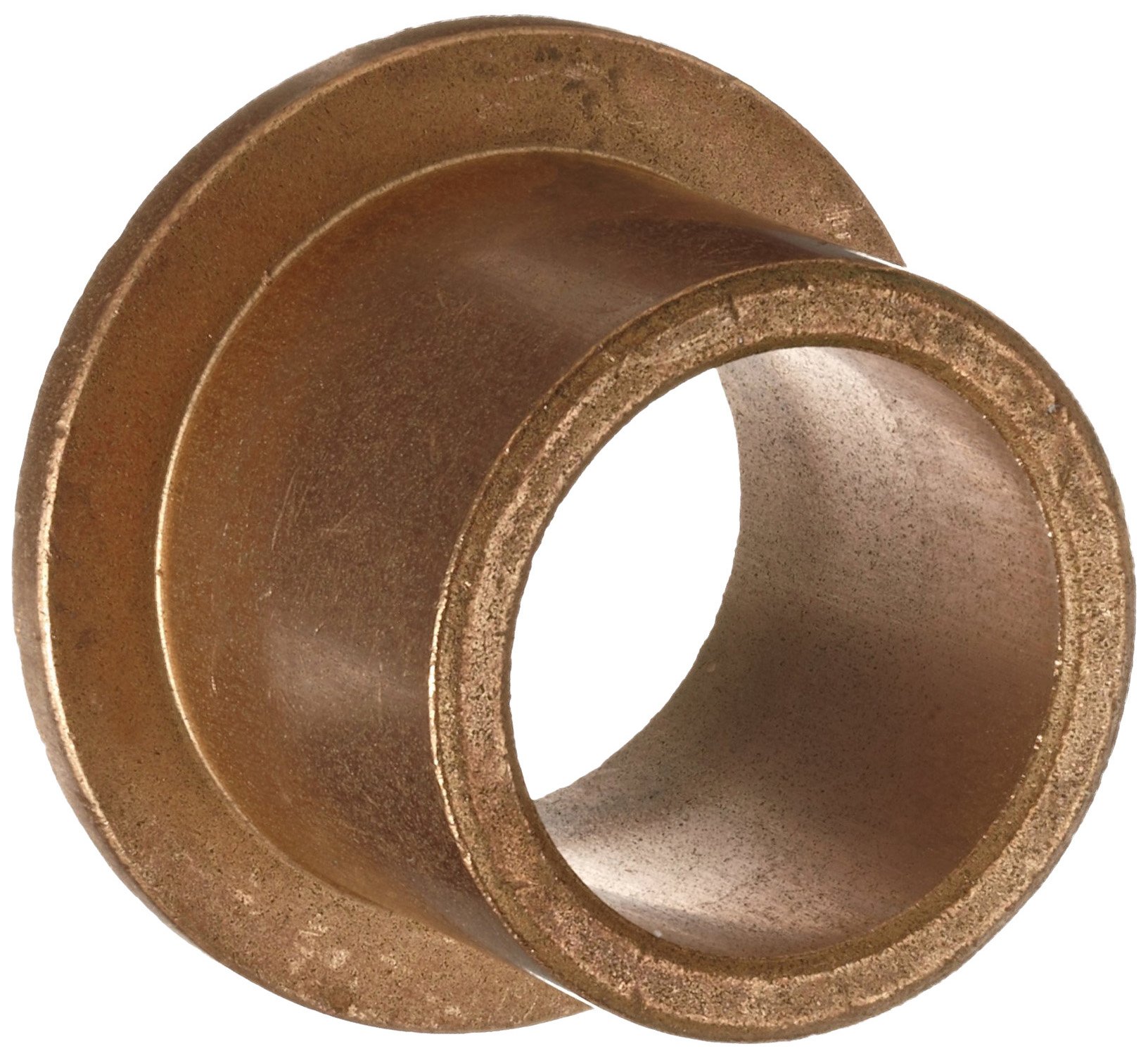

Bunting Bearings EF040604 1/4" Bore x 3/8" OD x 1/4" Length 1/2" Flange OD x 1/16" Flange Thickness Powdered Metal SAE 841 Flanged Bearings

Be the first to review this item

ASIN B0040GKTHY

Specifications for this item

Bearing Number: EF040604
Bore Diameter: 1/4 inches
Bore Diameter Tolerance: +0.0010/+0.0020 inches
Brand Name: Bunting Bearings
EAN: 0717905072475
Flange OD: 1/2 inches
Flange Thickness: 1/16 inches
Length: 1/4 inches
Material Type: Powdered Metal Bronze

Number of Items: 1
Outside Diameter: 3/8 inches
Outside Diameter Tolerance: +0.0020/+0.0030 inches
Part Number: EF040604
System of Measurement: Inch
UPC: 717905072475
Upper Temperature Range: 220 Degrees Fahrenheit
Width: 1/4 inches

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

Key Features

Self Lubricating Bronze Bearing; SAE 30 Oil provides ideal lubrication in most applications^Large Working Temperature Range, 10 F to 220 F^Conformance to ASTM chemical and physical properties^Non Magnetic^Corrosion resistant

Package Details

Shipping Weight: 0.2 pounds
Package Size: 1 x 0.8 x 0.1 inches

Product Description

Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
