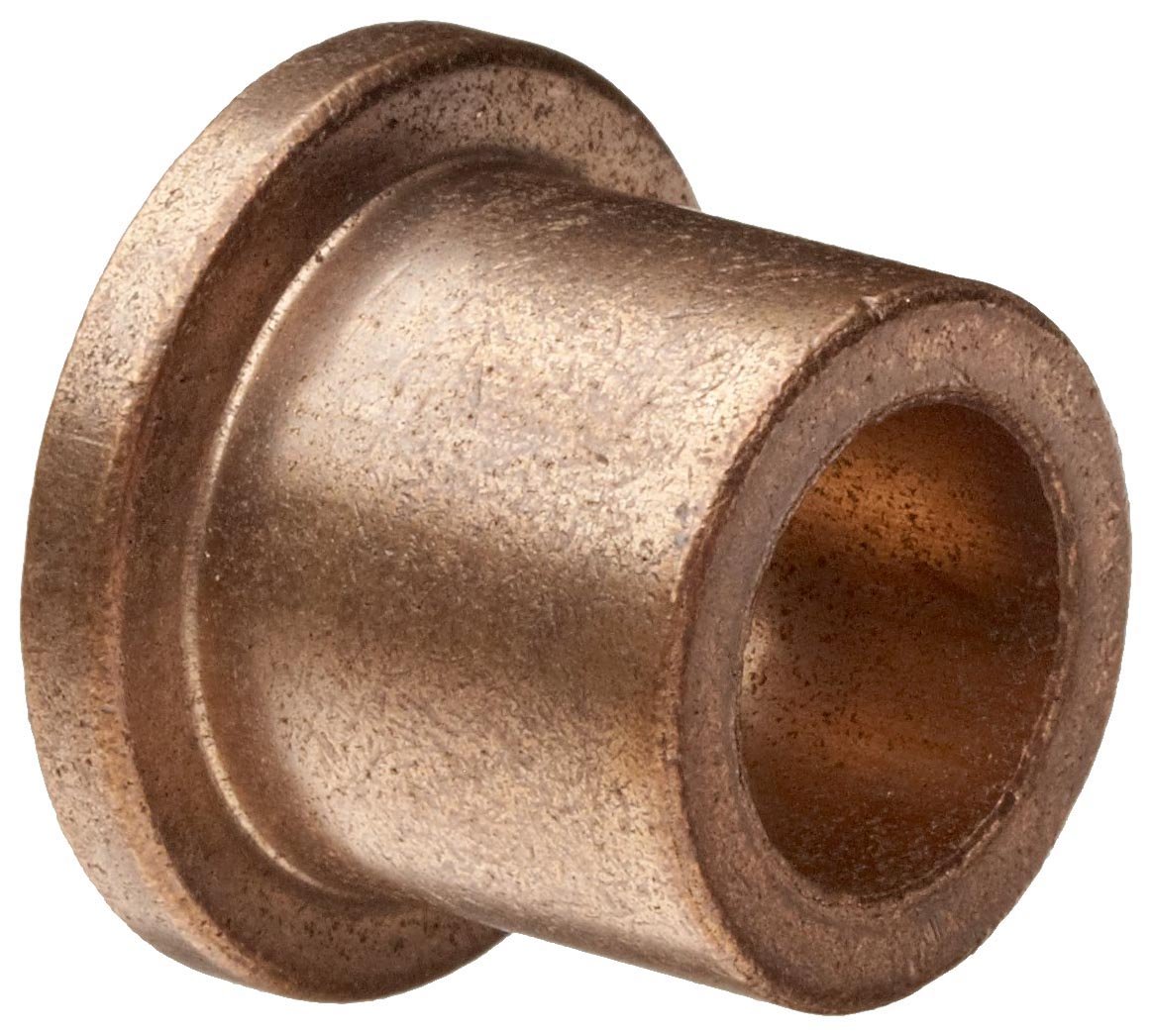

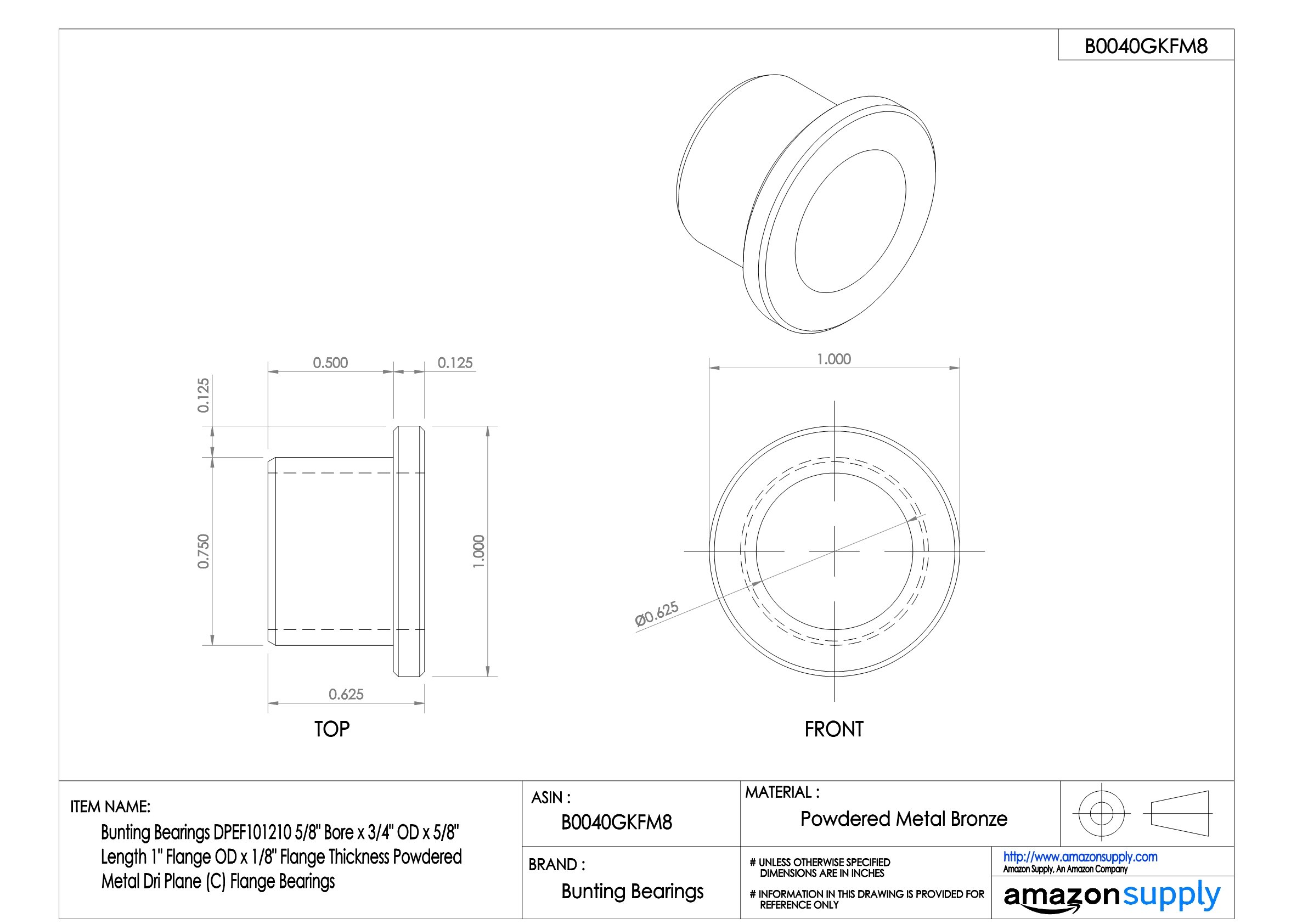

Bunting Bearings DPEF101210 5/8" Bore x 3/4" OD x 5/8" Length 1" Flange OD x 1/8" Flange Thickness Powdered Metal Dri Plane (C) Flange Bearings
Be the first to review this item
ASIN B0040GKFM8
Specifications for this item
- Bearing Number
- DPEF101210
- Bore Diameter
- 5/8 inches
- Bore Diameter Tolerance
- +0.0010/+0.0020 inches
- Brand Name
- Bunting Bearings
- EAN
- 0717905231186
- Flange OD
- 1 inches
- Flange Thickness
- 1/8 inches
- Length
- 5/8 inches
- Material Type
- Powdered Metal Bronze
- Number of Items
- 1
- Outside Diameter
- 3/4 inches
- Outside Diameter Tolerance
- +0.0020/+0.0030 inches
- Part Number
- DPEF101210
- System of Measurement
- Inch
- UPC
- 717905231186
- Upper Temperature Range
- 700 Degrees Fahrenheit
- Width
- 5/8 inches
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 2 hours 25 minutes and choose One-Day Shipping at checkout.
Key Features
- No oil for lubrication, therefore cleaner and no out gassing^Able to withstand high heat sources, Approximately 700 F^Conformance to ASTM chemical and physical properties^Non Magnetic^Corrosion resistant
Package Details
Shipping Weight:
1 pounds
Package Size:
0.6 x 0.5 x 0.4 inches
Product Description
Bunting Bearings offers a high performance sintered bearing called “Dri-Plane” using a proprietary metal compound for dry lubrication and/or high temperature applications. Contact the Bunting “Dri-Plane” Bearing Specialist for more information.
