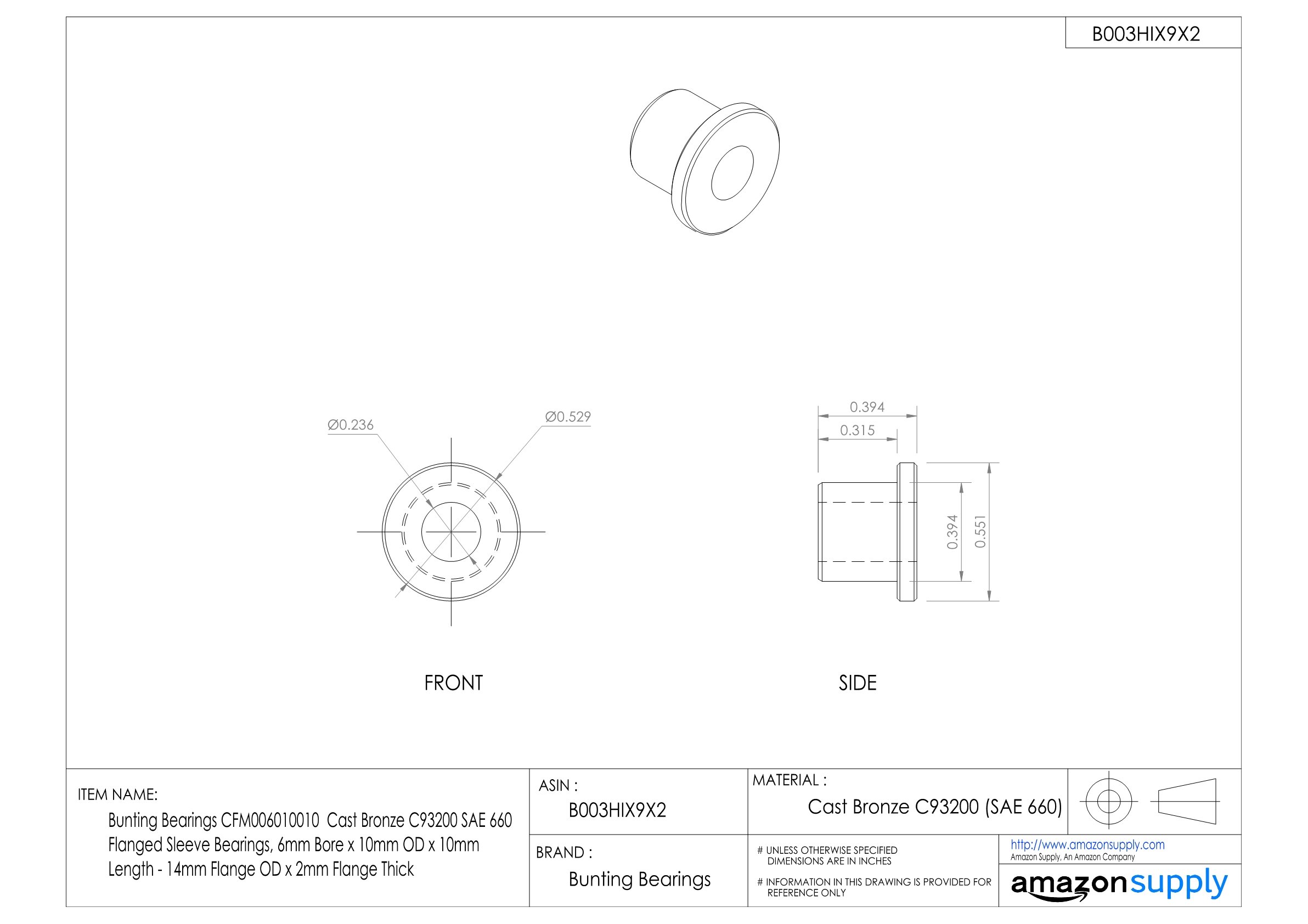

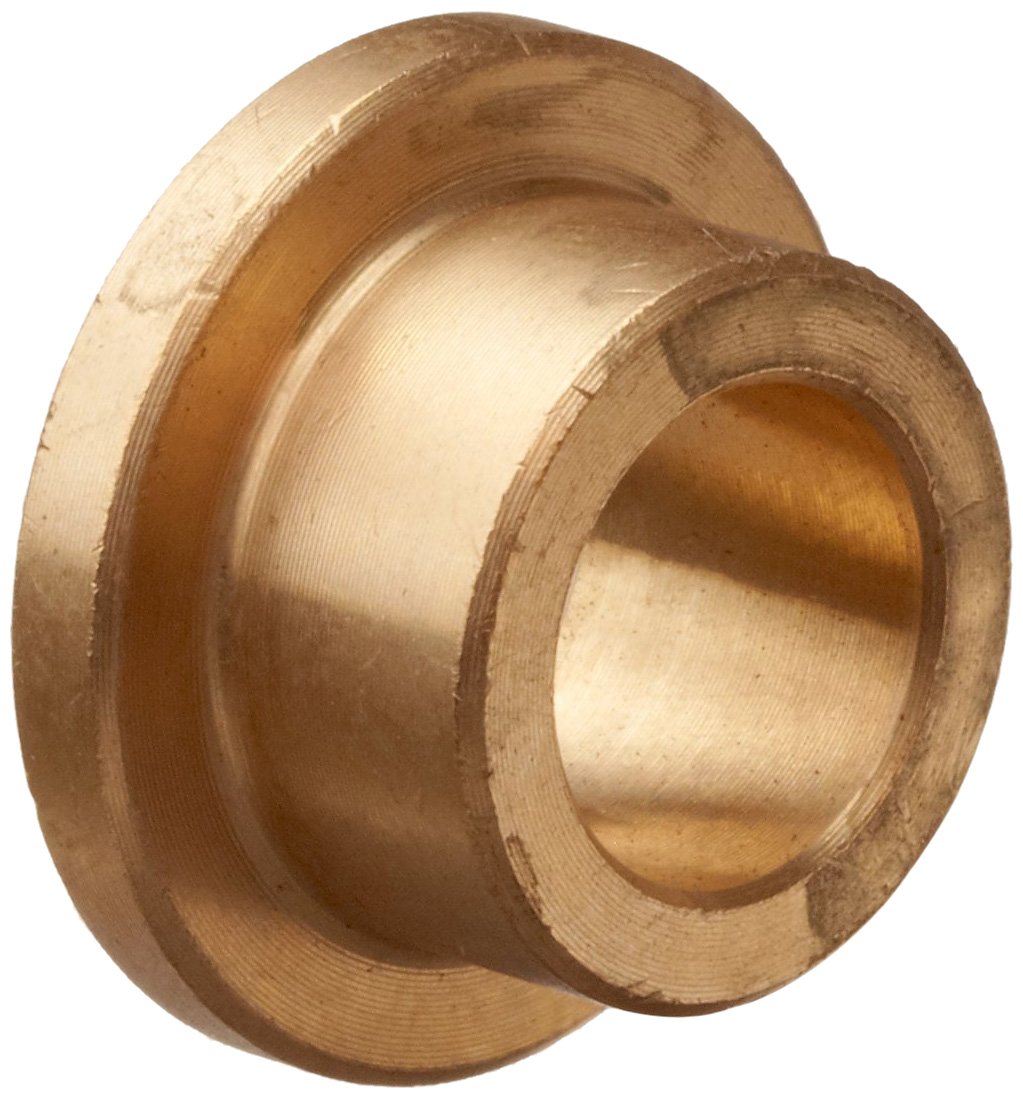

Bunting Bearings CFM006010010 Sleeve (Flanged) Bearings, Cast Bronze C93200 (SAE 660), 06mm Bore x 10mm OD x 10mm Length - 14mm Flange OD x 2mm Flange Thk (Pack of 5)

Be the first to review this item

ASIN B003HIX9X2

Specifications for this item
Overall Width
10  millimeters
Bore Diameter
06  millimeters
Bearing Number
CFM006010010
Part Number
CFM006010010
Brand Name
Bunting Bearings
Number of Items
1
Bore Diameter Tolerance
+/- 0.025  millimeters
Material Type
Cast Bronze C93200 (SAE 660)
Outside Diameter
10  millimeters
Upper Temperature Range
500  Degrees Fahrenheit
Outside Diameter Tolerance
+ 0.050 /+ 0.076  millimeters
UNSPSC Code
31171509
System of Measurement
Metric
Overall Length
10  millimeters

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Precision machined on all surfaces for smooth running and ease of installation^Wide working temperature range, - 40 F to 500 F^High load carrying capacity up to 4000 Psi^Non Magnetic^Corrosion resistant

Package Details

Shipping Weight: 0.1 pounds
Package Size: 1 x 1 x 0.5 inches

Product Description

Bunting cast bronze bearings are machined from continuous cast C93200 (SAE 660) bronze for superior quality and performance. The continuous casting process assures a uniform bronze structure throughout the bearing, free from porosity and hard particle inclusions commonly found in other cast processes. Our standard bearing line features over 900 sizes, these standards provide off-the-shelf economy for most applications, and may be easily resized, oil grooved, or graphited to meet special requirements
