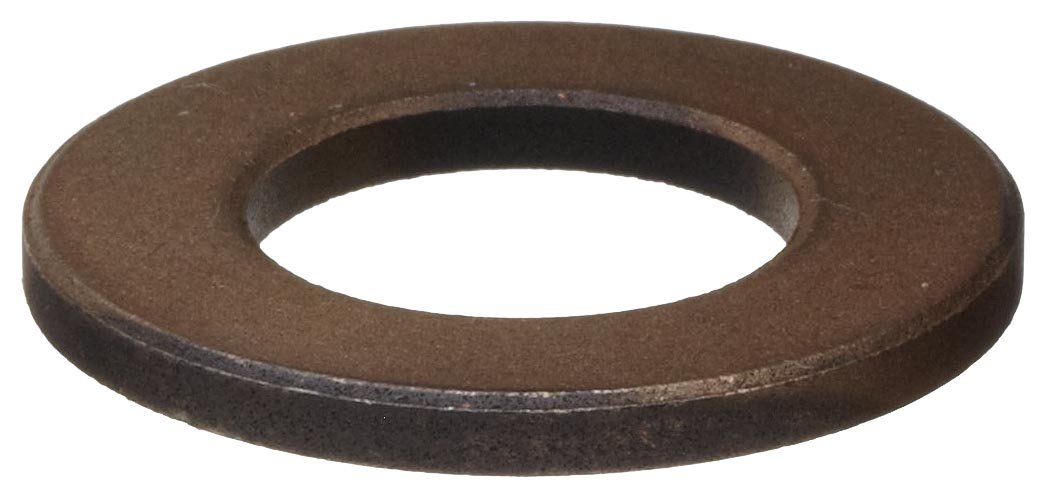

Bunting Bearings Thrust Washer, BB-16 Powdered Metal, Inch

Be the first to review this item

Product Specifications
Brand Name
Bunting Bearings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 10 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Bore diameter string Item diameter string Item width string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-18 of 18
1 3/4 inches 2 5/8 inches   B0040GKEH4 1 $9.02 Buy Options
1 inches 1 1/2 inches   B0040GKED8 12 $8.65 Buy Options
1 inches 1 1/2 inches   B0040GKEBK Temporarily out of stock. Order now and we'll deliver when available. $6.28 Buy Options
1-1/2 inches 2-1/2 inches   B0040GKEGA 4 $7.26 Buy Options
1-1/4 inches 2 inches   B0040GKEEM 16 $6.85 Buy Options
1-1/4 inches 2 inches   B0040GKEE2 10 $3.22 Buy Options
1/2 inches 1 inches 1/8 inches B0040GKDX4 7 $5.41 Buy Options
2 inches 3 inches   B0040GKEHE 1 $9.61 Buy Options
3/4 inches 1 1/4 inches   B0040GKE6A 1 $5.74 Buy Options
3/4 inches 1 1/4 inches   B0040GKE74 1 $6.36 Buy Options
3/4 inches 1 3/8 inches   B0040GKE7O 10 $7.94 Buy Options
3/4 inches 1 9/16 inches   B0040GKE88 1 $7.67 Buy Options
3/8 inches 3/4 inches 1/16 inches B0040GKDUW 2 $7.52 Buy Options
5/8 inches 1 3/16 inches   B0040GKE4C 22 $8.77 Buy Options
7/8 inches 1 1/2 inches   B0040GKEB0 2 $7.67 Buy Options
7/8 inches 1 1/2 inches   B0040GKEAG 1 $6.36 Buy Options
9/16 inches 1 1/4 inches   B0040GKE0Q 1 $7.21 Buy Options
9/16 inches 1 1/4 inches   B0040GKE06 1 $5.77 Buy Options

Key Features

  • Thrust washer for supporting high axial loads
  • Sintered powdered metal for strength and resistance to wear and shock
  • Impregnated with oil to provide a lubricating film over the entire bearing surface
  • Maximum load (P) value of 8,000 psi and maximum pressure velocity (PV) value of 75,000
  • Operating temperature range of 10 to 220 degrees F (-12 to 104 degrees C)

Product Description

This Bunting Bearings BB-16 powdered metal thrust washer supports high axial loads. It is made of sintered BB-16 powdered metal for strength and resistance to wear and shock. The bearing material is impregnated with an extreme pressure oil to provide a lubricating film over the entire bearing surface. The bearing has a maximum load value of 8,000 psi (pounds per square inch), a maximum velocity value of 35 sfpm (surface feet per minute), and a maximum pressure velocity (PV) value of 75,000. It operates over a temperature range of 10 to 220 degrees F (-12 to 104 degrees C). This thrust washer is for use in various applications such as automobiles, pumps, office machines, and home appliances, among others.

Specifications

Chemical and physical propertiesAerospace Materials Specification AMS 4805
Chemical, physical, and mechanical requirements, and dimensional tolerancesASTM International ASTM B438
Chemical and physical properties Metal Powder Industries Federation MPIF CT-1000-K26

Plain bearings provide low-friction sliding contact for relative motion between parts of a machine. They are the simplest type of bearing, with no rolling elements, and there are three basic types of plain bearings: radial plain bearings (also called sleeve bearings or bushings) to support rotating or reciprocating shafts, thrust bearings (also called washers) to support axial loads on shafts, and linear bearings to support and guide the motion of parts in a straight line. Flanged sleeve bearings have a flange on one end to support axial loads. Spherical plain bearings are radial bearings that allow for angular misalignment of the shaft. Plain bearings are made from durable, low-friction materials such as sintered or cast bronze alloys, plastic, or a combination of a metal shell and a plastic bearing surface. They can be lubricated externally or by a lubricant embedded in the bearing material. Plain bearings are used in automobiles, construction and mining equipment, textile manufacturing equipment, and robotics, among others.

Bunting Bearings LLC manufactures a variety of bearings that meet standards for quality assurance established by the Society of Automotive Engineers (SAE), ASTM International, and the International Organization for Standardization (ISO), among others. Founded in 1907, Bunting Bearings LLC is based in Holland, Ohio.
