Buna O-Ring, 50A Durometer, Round, Black

Be the first to review this item

Product Specifications
Material Type
Nitrile Rubber
Color Name
Black
Brand Name
Small Parts
Cross Section Shape
Round
Upper Temperature Range
250  Degrees Fahrenheit
Specification Met
AS568A
Hardness
50 A Durometer
UNSPSC Code
31410000
LowerTemperature Range
-30  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 14 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 99 Next 20 »
Dash Size Nominal ID Nominal OD Nominal Width Actual ID Actual OD Actual Width Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All
Currently showing 1-20 of 99 Next 20 »
004 5/64" 13/64" 1/16" 0.07" 0.21" 0.07" 100 B0051XWWYI 5 $8.78 Buy Options
005 3/32" 7/32" 1/16" 0.101" 0.241" 0.07" 100 B0051XWX0G 4 $9.00 Buy Options
006 1/8" 1/4" 1/16" 0.114" 0.254" 0.07" 150 B0051XWX42 3 $9.19 Buy Options
007 5/32" 9/32" 1/16" 0.145" 0.285" 0.07" 125 B0051XWX8S Usually ships in 3 to 4 weeks $8.77 Buy Options
008 3/16" 5/16" 1/16" 0.176" 0.316" 0.07" 125 B0051XWXCE 78 $9.17 Buy Options
009 7/32" 11/32" 1/16" 0.208" 0.348" 0.07" 125 B0051XWXEC 4 $9.40 Buy Options
010 1/4" 3/8" 1/16" 0.239" 0.379" 0.07" 120 B0051XWXGK 2 $10.00 Buy Options
011 5/16" 7/16" 1/16" 0.301" 0.441" 0.07" 115 B0051XWXMY 1 $9.97 Buy Options
012 3/8" 1/2" 1/16" 0.364" 0.504" 0.07" 110 B0051XWXOC 3 $9.90 Buy Options
013 7/16" 9/16" 1/16" 0.426" 0.566" 0.07" 90 B0051XWXRE 1 $9.60 Buy Options
014 1/2" 5/8" 1/16" 0.489" 0.629" 0.07" 80 B0051XWXVK 3 $9.07 Buy Options
015 9/16" 11/16" 1/16" 0.551" 0.691" 0.07" 80 B0051XWXXS 1 $7.46 Buy Options
016 5/8" 3/4" 1/16" 0.614" 0.754" 0.07" 75 B0051XWY00 4 $9.50 Buy Options
017 11/16" 13/16" 1/16" 0.676" 0.816" 0.07" 70 B0051XWY1O 5 $9.80 Buy Options
018 3/4" 7/8" 1/16" 0.739" 0.879" 0.07" 65 B0051XWY32 7 $9.11 Buy Options
019 13/16" 15/16" 1/16" 0.801" 0.941" 0.07" 60 B0051XWY7S 4 $8.62 Buy Options
020 7/8" 1" 1/16" 0.864" 1.004" 0.07" 60 B0051XWY8M Usually ships in 3 to 4 weeks $10.00 Buy Options
021 15/16" 1-1/16" 1/16" 0.926" 1.066" 0.07" 50 B0051XWY9Q Usually ships in 3 to 4 weeks $9.10 Buy Options
024 1-1/8" 1-1/4" 1/16" 1.114" 1.254" 0.07" 45 B0051XWYBE 5 $10.00 Buy Options
027 1-5/16" 1-7/16" 1/16" 1.301" 1.441" 0.07" 35 B0051XWYEQ Usually ships in 3 to 4 weeks $7.79 Buy Options

Key Features

  • Made of Buna-nitrile (also called Buna-N) for use with a variety of fluids from petroleum to aliphatic hydrocarbons
  • Durometer (hardness) of 50A for resistance to penetration
  • Round cross-section to provide a seal between cylindrical overlapping surfaces
  • For use across a wide temperature range from -30 degrees F/-34 degrees C to 250 degrees F/121 degrees C
  • Meets standards defined by Aerospace Standard AS568A

Product Description

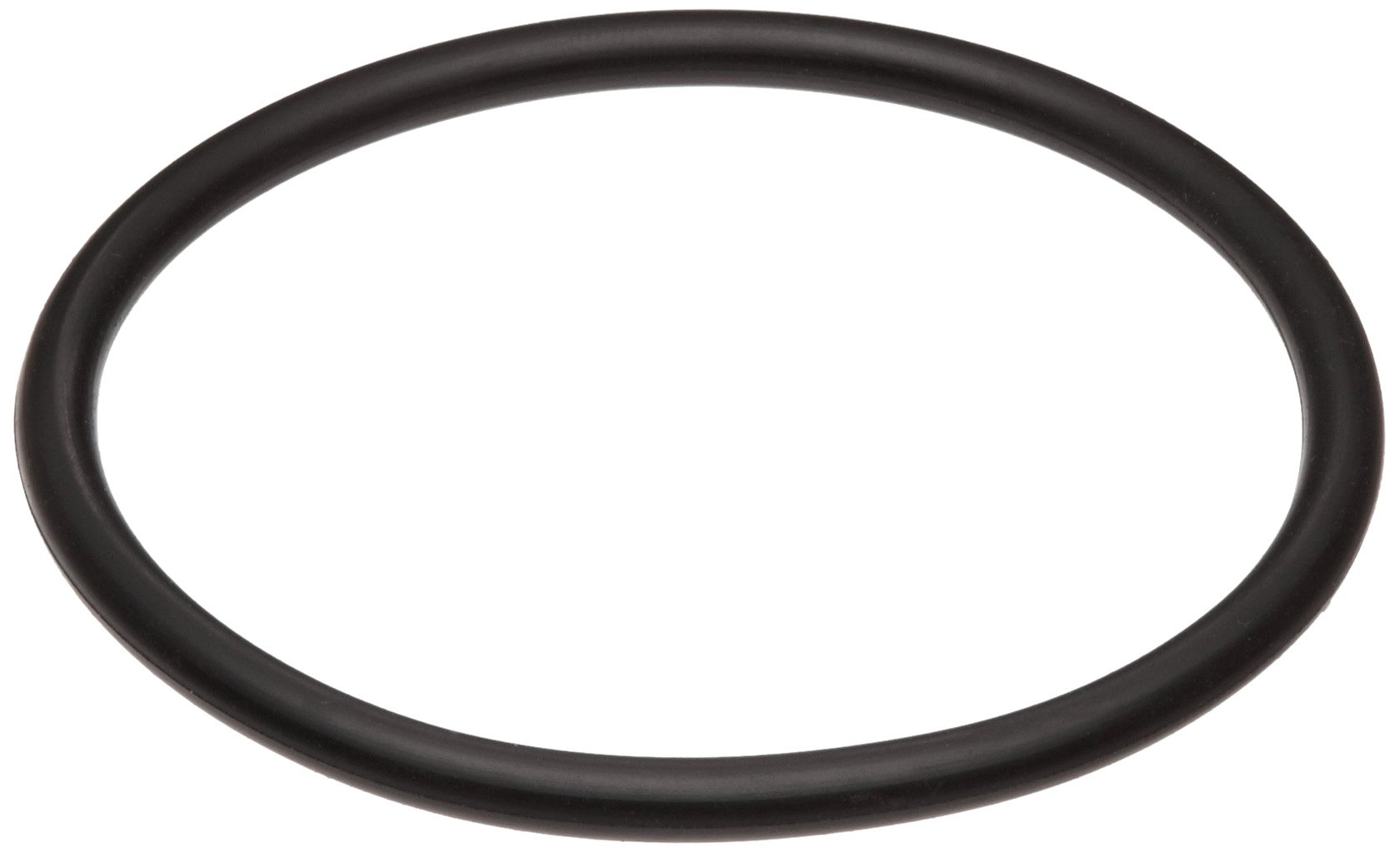

This O-ring is made of black Buna-nitrile (Buna-N) and has a durometer of 50A. It has a round cross-section and can be used across a wide temperature range (-30 degrees F/-34 degrees C to 250 degrees F/121 degrees C). Designed for use in a wide variety of sealing applications, this Buna-nitrile O-ring meet standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.

Buna-nitrile can have high tensile strength, as well as abrasion, tear, and compression set resistance. It is compatible for use with petroleum, hexafluoroacetone (HFA), hexafluoro-2-butyne (HFB) and hydrofluorocarbon (HFC) fluids, vegetable oil, alcohol, acids, and aliphatic hydrocarbons. Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight and weathering, and should not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.

The durometer hardness of this Buna O-ring is 50A. Durometers measure the hardness of a material and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation. On a scale of 0 to 100, a value of 0 indicates that a sample was completely penetrated, while a value of 100 shows no indentation in the sample. The letter following the number identifies the shore scale, which is either shore A or D. Shore A is used for softer plastics, while shore D is used for harder plastics.

O-rings provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section, and a hole in the center, similar to a doughnut. O-rings are available in various AS568A dash sizes, which is the standardized sizing for O-rings, and defines the nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter of an O-ring.
