Buna O-Ring, 70A Durometer, Round, Black

Be the first to review this item

Product Specifications
Material Type
Nitrile Rubber
Color Name
Black
Brand Name
Small Parts
Cross Section Shape
Round
Upper Temperature Range
250  Degrees Fahrenheit
Specification Met
AS568A
Hardness
70 A Durometer
UNSPSC Code
31410000
LowerTemperature Range
-30  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 14 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 706 Next 20 »
Dash Size Nominal ID Nominal OD Nominal Width Actual ID Actual OD Actual Width Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All
Currently showing 1-20 of 706 Next 20 »
001 1/32" 3/32" 1/32" 0.029" 0.109" 0.04" 100 B000FMUESQ yes $2.01 Buy Options
001-1/2 1/16" 1/8" 1/32" 0.070" 0.150" 0.040" 100 B005282S4G yes $6.38 Buy Options
002 3/64" 9/64" 3/64" 0.042" 0.142" 0.05" 100 B000FMUETU yes $1.94 Buy Options
003 1/16" 3/16" 1/16" 0.056" 0.176" 0.06" 100 B000FN0UTS yes $2.01 Buy Options
004 5/64" 13/64" 1/16" 0.07" 0.21" 0.07" 100 B000FMURGK yes $4.09 Buy Options
005 3/32" 7/32" 1/16" 0.101" 0.241" 0.07" 100 B000FN0UXY yes $3.67 Buy Options
006 1/8" 1/4" 1/16" 0.114" 0.254" 0.07" 100 B000FN0V06 yes $3.80 Buy Options
007 5/32" 9/32" 1/16" 0.145" 0.285" 0.07" 100 B000FMWLPK yes $4.28 Buy Options
008 3/16" 5/16" 1/16" 0.176" 0.316" 0.07" 100 B000FMWLR8 yes $2.08 Buy Options
009 7/32" 11/32" 1/16" 0.208" 0.348" 0.07" 100 B000FMYOG4 yes $4.26 Buy Options
010 1/4" 3/8" 1/16" 0.239" 0.379" 0.07" 100 B000FN0V6A yes $4.31 Buy Options
011 5/16" 7/16" 1/16" 0.301" 0.441" 0.07" 100 B000FMYOK0 yes $4.74 Buy Options
012 3/8" 1/2" 1/16" 0.364" 0.504" 0.07" 100 B000FMWLW8 yes $10.71 Buy Options
013 7/16" 9/16" 1/16" 0.426" 0.566" 0.07" 100 B000FMYONC yes $2.76 Buy Options
014 1/2" 5/8" 1/16" 0.489" 0.629" 0.07" 100 B000FN0VCY yes $2.87 Buy Options
015 9/16" 11/16" 1/16" 0.551" 0.691" 0.07" 100 B000FMWM1I yes $3.30 Buy Options
016 5/8" 3/4" 1/16" 0.614" 0.754" 0.07" 100 B000FMYOSC yes $3.83 Buy Options
017 11/16" 13/16" 1/16" 0.676" 0.816" 0.07" 100 B0051XXWEC yes $4.09 Buy Options
018 3/4" 7/8" 1/16" 0.739" 0.879" 0.07" 100 B000FMWM5E yes $3.53 Buy Options
019 13/16" 15/16" 1/16" 0.801" 0.941" 0.07" 100 B0051XXWPQ yes $5.61 Buy Options

Key Features

  • Made of Buna-nitrile (also called Buna-N) for use with a variety of fluids and hydrocarbons
  • Can be used across a wide temperature range from -30 degrees F (-34 degrees C) to 250 degrees F (121 degrees C)
  • Round in cross-section to provide a seal between cylindrical overlapping surfaces
  • Durometer (hardness) of 70A for resistance to penetration
  • Meets standards defined by Aerospace Standard AS568A

Product Description

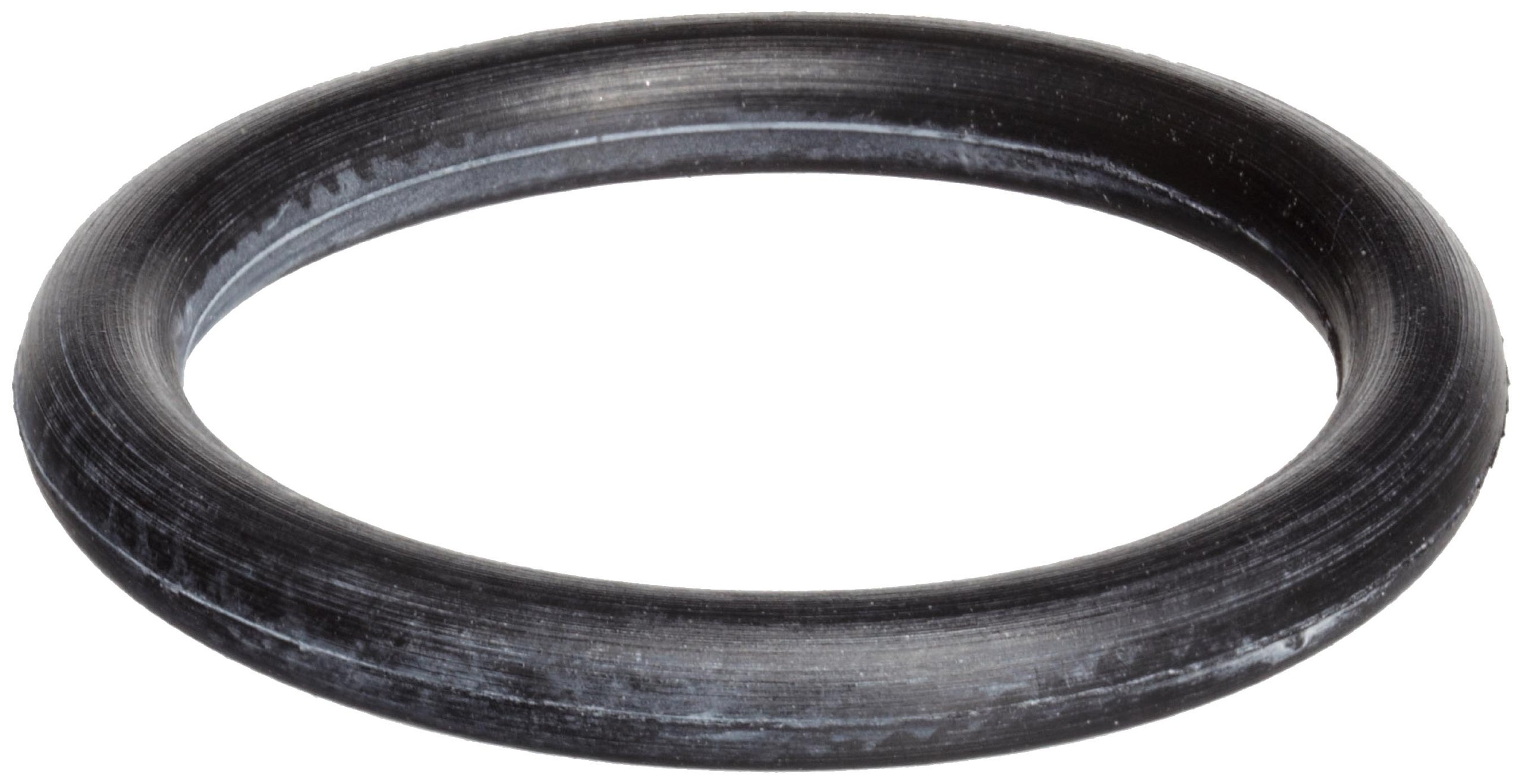

This O-ring is made of black Buna-nitrile, is round in cross-section, has a durometer of 70A, and is designed for use in a wide variety of sealing applications.

Buna-nitrile can have high tensile strength, and abrasion, tear, and compression set resistance. It can be used in temperatures between -30 degrees F (-34 degrees C) to 250 degrees F (121 degrees C), and is compatible for use with petroleum, HFA, HFB and HFC fluids, vegetable oil, alcohol, acids and aliphatic hydrocarbons. Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight and weathering and should therefore not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.

This Buna O-ring has a shore durometer of 70A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.

O-rings commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section, and a hole in the center, similar to a doughnut. O-rings are available in various sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.

These Buna-nitrile O-rings meet standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.
