Buna O-Ring, 70A Durometer, Quad, Black

Be the first to review this item

Product Specifications

Brand Name: Small Parts
Color Name: Black
Cross Section Shape: Quad
Hardness: 70 A Durometer
LowerTemperature Range: -30 Degrees Fahrenheit

Material Type: Nitrile Rubber
Specification Met: AS568A
System of Measurement: Inch
Upper Temperature Range: 250 Degrees Fahrenheit

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

Javascript is disabled in your browser. Please enable Javascript for your browser or visit our non JavaScript version of the page with limited functionality.

Currently showing 20 of 123 Show All
Dash Size	Nominal ID	Nominal OD	Nominal Width	Actual ID	Actual OD	Actual Width	Pkg Qty	ASIN The Amazon Standard Item Number (ASIN) uniquely identifies the item in the AmazonSupply.com (and Amazon) catalog.	Available If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available. You can also order more than we currently have in stock. Read more about back orders in our help section.	Price
All	All	All	All	All	All	All	All		In Stock Only
Currently showing 20 of 123 Show All
022	1"	1-1/8"	1/16"	0.989"	1.129"	0.07"	50	B0051XZO6Q	In Stock (7)	$10.89
023	1-1/16"	1-3/16"	1/16"	1.051"	1.191"	0.07"	50	B0051XZO7K	In Stock (2)	$11.89
024	1-1/8"	1-1/4"	1/16"	1.114"	1.254"	0.07"	50	B0051XZO98	In Stock (1)	$12.07
025	1-3/16"	1-5/16"	1/16"	1.176"	1.316"	0.07"	50	B0051XZOCA	In Stock (1)	$12.18
026	1-1/4"	1-3/8"	1/16"	1.239"	1.379"	0.07"	50	B0051XZOF2	In Stock (2)	$14.20
027	1-5/16"	1-7/16"	1/16"	1.301"	1.441"	0.07"	50	B0051XZOJ8	In Stock (1)	$13.00
028	1-3/8"	1-1/2"	1/16"	1.364"	1.504"	0.07"	50	B0051XZOLG	In Stock (2)	$10.24
029	1-1/2"	1-5/8"	1/16"	1.489"	1.629"	0.07"	50	B0051XZONE	In Stock (1)	$14.10
030	1-5/8"	1-3/4"	1/16"	1.614"	1.754"	0.07"	50	B0051XZOO8	In Stock (1)	$15.86
031	1-3/4"	1-7/8"	1/16"	1.739"	1.879"	0.07"	50	B0051XZOPM	Usually ships in 3 to 5 weeks	$19.20
032	1-7/8"	2"	1/16"	1.864"	2.004"	0.07"	50	B0051XZOUM	Usually ships in 3 to 5 weeks	$8.94
033	2"	2-1/8"	1/16"	1.989"	2.129"	0.07"	50	B0051XZOY8	In Stock (1)	$19.38
034	2-1/8"	2-1/4"	1/16"	2.114"	2.254"	0.07"	50	B0051XZP56	In Stock (2)	$23.88
040	2-7/8"	3"	1/16"	2.864"	3.004"	0.07"	25	B0051XZP8I	In Stock (1)	$17.90
041	3"	3-1/8"	1/16"	2.989"	3.129"	0.07"	25	B0051XZPD8	In Stock (1)	$19.32
042	3-1/4"	3-3/8"	1/16"	3.239"	3.379"	0.07"	25	B0051XZPH4	In Stock (1)	$22.02
044	3-3/4"	3-7/8"	1/16"	3.739"	3.879"	0.07"	25	B0051XZPK6	In Stock (1)	$28.77
045	4"	4-1/8"	1/16"	3.989"	4.129"	0.07"	25	B0051XZPNI	In Stock (1)	$31.28
121	1-1/16"	1-1/4"	3/32"	1.049"	1.255"	0.103"	100	B0051XZPS8	In Stock (1)	$22.80
122	1-1/8"	1-5/16"	3/32"	1.112"	1.318"	0.103"	100	B0051XZPWE	In Stock (1)	$23.59

022(1)
023(1)
024(1)
025(1)
026(1)
027(1)
028(1)
029(1)
030(1)
031(1)
032(1)
033(1)
034(1)
040(1)
041(1)
042(1)
044(1)
045(1)
121(1)
122(1)
123(1)
124(1)
125(1)
126(1)
127(1)
128(1)
129(1)
130(1)
131(1)
132(1)
133(1)
136(1)
137(1)
147(1)
148(1)
149(1)
151(1)
152(1)
153(1)
155(1)
161(1)
215(1)
216(1)
217(1)
218(1)
219(1)
231(1)
232(1)
233(1)
234(1)
235(1)
236(1)
237(1)
238(1)
262(1)
313(1)
318(1)
320(1)
322(1)
324(1)
325(1)
326(1)
327(1)
328(1)
329(1)
330(1)
331(1)
332(1)
333(1)
334(1)
335(1)
336(1)
337(1)
338(1)
339(1)
340(1)
341(1)
342(1)
343(1)
344(1)
345(1)
346(1)
347(1)
348(1)
349(1)
350(1)
351(1)
352(1)
353(1)
354(1)
355(1)
356(1)
357(1)
358(1)
360(1)
363(1)
425(1)
426(1)
427(1)
429(1)
430(1)
431(1)
433(1)
437(1)
438(1)
439(1)
440(1)
441(1)
442(1)
443(1)
444(1)
445(1)
448(1)
449(1)
450(1)
451(1)
452(1)
453(1)
455(1)
460(1)
461(1)
462(1)
466(1)

11/16"(1)
1"(2)
1-1/16"(3)
1-1/8"(4)
1-3/16"(3)
1-1/4"(4)
1-5/16"(3)
1-3/8"(3)
1-7/16"(1)
1-1/2"(3)
1-9/16"(1)
1-5/8"(3)
1-11/16"(1)
1-3/4"(3)
1-13/16"(1)
1-7/8"(2)
2"(3)
2-1/16"(1)
2-1/8"(2)
2-1/4"(1)
2-3/8"(1)
2-1/2"(1)
2-5/8"(2)
2-11/16"(1)
2-3/4"(3)
2-13/16"(1)
2-7/8"(3)
3"(4)
3-1/8"(2)
3-1/4"(4)
3-3/8"(2)
3-1/2"(3)
3-5/8"(1)
3-3/4"(2)
3-7/8"(1)
4"(3)
4-1/8"(1)
4-1/4"(1)
4-3/8"(1)
4-1/2"(2)
4-5/8"(2)
4-3/4"(2)
4-7/8"(1)
5"(2)
5-1/8"(2)
5-1/4"(2)
5-3/8"(1)
5-1/2"(3)
5-5/8"(1)
5-7/8"(1)
6"(1)
6-1/4"(1)
6-1/2"(2)
6-3/4"(1)
7"(2)
7-1/4"(1)
7-1/2"(1)
7-3/4"(1)
8"(1)
9-1/2"(1)
10"(1)
10-1/2"(1)
11"(1)
11-1/2"(1)
12"(1)
13"(1)
15-1/2"(1)
16"(1)
16-1/2"(1)
18-1/2"(1)

1-1/16"(1)
1-1/8"(1)
1-3/16"(1)
1-1/4"(2)
1-5/16"(3)
1-3/8"(4)
1-7/16"(3)
1-1/2"(4)
1-9/16"(2)
1-5/8"(3)
1-11/16"(1)
1-3/4"(3)
1-13/16"(1)
1-7/8"(3)
1-15/16"(1)
2"(3)
2-1/8"(2)
2-3/16"(1)
2-1/4"(3)
2-3/8"(1)
2-1/2"(1)
2-5/8"(1)
2-3/4"(1)
2-7/8"(3)
2-15/16"(1)
3"(4)
3-1/8"(3)
3-3/16"(1)
3-1/4"(2)
3-3/8"(3)
3-7/16"(1)
3-1/2"(2)
3-5/8"(2)
3-11/16"(1)
3-3/4"(2)
3-7/8"(2)
4"(1)
4-1/8"(2)
4-3/16"(1)
4-1/4"(1)
4-3/8"(1)
4-1/2"(1)
4-5/8"(1)
4-3/4"(1)
4-7/8"(1)
5"(2)
5-1/8"(2)
5-1/4"(2)
5-3/8"(1)
5-1/2"(2)
5-5/8"(2)
5-11/16"(1)
5-3/4"(2)
5-7/8"(1)
6"(2)
6-1/4"(1)
6-1/2"(1)
6-3/4"(1)
6-7/8"(1)
7"(1)
7-1/4"(2)
7-1/2"(1)
7-3/4"(1)
8"(1)
8-1/4"(1)
8-1/2"(1)
10"(1)
10-1/2"(1)
11"(1)
11-1/2"(1)
12"(1)
12-1/2"(1)
13-1/2"(1)
16"(1)
16-1/2"(1)
17"(1)
19"(1)

0.662"(1)
0.975"(1)
0.989"(1)
1.046"(1)
1.049"(1)
1.051"(1)
1.1"(1)
1.109"(1)
1.112"(1)
1.114"(1)
1.171"(1)
1.174"(1)
1.176"(1)
1.225"(1)
1.234"(1)
1.237"(1)
1.239"(1)
1.296"(1)
1.299"(1)
1.301"(1)
1.35"(1)
1.362"(1)
1.364"(1)
1.424"(1)
1.475"(1)
1.487"(1)
1.489"(1)
1.549"(1)
1.6"(1)
1.612"(1)
1.614"(1)
1.674"(1)
1.725"(1)
1.737"(1)
1.739"(1)
1.799"(1)
1.85"(1)
1.864"(1)
1.975"(1)
1.987"(1)
1.989"(1)
2.05"(1)
2.1"(1)
2.114"(1)
2.225"(1)
2.35"(1)
2.475"(1)
2.6"(1)
2.609"(1)
2.675"(1)
2.725"(1)
2.734"(1)
2.737"(1)
2.8"(1)
2.85"(1)
2.859"(1)
2.864"(1)
2.975"(1)
2.984"(1)
2.987"(1)
2.989"(1)
3.1"(1)
3.109"(1)
3.225"(1)
3.234"(1)
3.237"(1)
3.239"(1)
3.35"(1)
3.359"(1)
3.475"(1)
3.484"(1)
3.487"(1)
3.6"(1)
3.725"(1)
3.739"(1)
3.85"(1)
3.975"(1)
3.987"(1)
3.989"(1)
4.1"(1)
4.225"(1)
4.35"(1)
4.475"(2)
4.6"(2)
4.725"(2)
4.85"(1)
4.975"(2)
5.1"(2)
5.225"(2)
5.35"(1)
5.475"(2)
5.487"(1)
5.6"(1)
5.85"(1)
5.975"(1)
6.225"(1)
6.475"(2)
6.725"(1)
6.975"(1)
6.984"(1)
7.225"(1)
7.475"(1)
7.725"(1)
7.975"(1)
9.475"(1)
9.975"(1)
10.475"(1)
10.975"(1)
11.475"(1)
11.975"(1)
12.975"(1)
15.475"(1)
15.955"(1)
16.455"(1)
18.455"(1)

1.082"(1)
1.129"(1)
1.191"(1)
1.254"(1)
1.255"(1)
1.316"(1)
1.318"(1)
1.324"(1)
1.379"(1)
1.38"(1)
1.387"(1)
1.395"(1)
1.441"(1)
1.443"(1)
1.449"(1)
1.504"(1)
1.505"(1)
1.512"(1)
1.52"(1)
1.568"(1)
1.574"(1)
1.629"(1)
1.63"(1)
1.645"(1)
1.693"(1)
1.754"(1)
1.755"(1)
1.77"(1)
1.818"(1)
1.879"(1)
1.88"(1)
1.895"(1)
1.943"(1)
2.004"(1)
2.005"(1)
2.02"(1)
2.129"(1)
2.145"(1)
2.193"(1)
2.254"(1)
2.256"(1)
2.27"(1)
2.395"(1)
2.52"(1)
2.645"(1)
2.77"(1)
2.881"(1)
2.887"(1)
2.895"(1)
2.943"(1)
3.004"(1)
3.006"(1)
3.012"(1)
3.02"(1)
3.129"(1)
3.137"(1)
3.145"(1)
3.193"(1)
3.262"(1)
3.27"(1)
3.379"(1)
3.387"(1)
3.395"(1)
3.443"(1)
3.512"(1)
3.52"(1)
3.637"(1)
3.645"(1)
3.693"(1)
3.762"(1)
3.77"(1)
3.879"(1)
3.895"(1)
4.02"(1)
4.129"(1)
4.145"(1)
4.193"(1)
4.27"(1)
4.395"(1)
4.52"(1)
4.645"(1)
4.77"(1)
4.895"(1)
5.02"(1)
5.025"(1)
5.145"(1)
5.15"(1)
5.27"(1)
5.275"(1)
5.395"(1)
5.52"(1)
5.525"(1)
5.645"(1)
5.65"(1)
5.693"(1)
5.77"(1)
5.775"(1)
5.895"(1)
6.02"(1)
6.025"(1)
6.27"(1)
6.525"(1)
6.775"(1)
6.895"(1)
7.025"(1)
7.262"(1)
7.275"(1)
7.525"(1)
7.775"(1)
8.025"(1)
8.275"(1)
8.525"(1)
10.025"(1)
10.525"(1)
11.025"(1)
11.525"(1)
12.025"(1)
12.525"(1)
13.525"(1)
16.025"(1)
16.505"(1)
17.005"(1)
19.005"(1)

Key Features

Made of Buna-nitrile for use with a variety of fluids and hydrocarbons
Four-lobe shape for lower friction and resistance to twisting
Can be used across a wide temperature range from -30 degrees F (-34 degrees C) to 250 degrees F (121 degrees C)
Quad-ring, four-lobe design for increased sealing surface and resistance to leakage
Durometer of 70A for resistance to penetration

Product Description

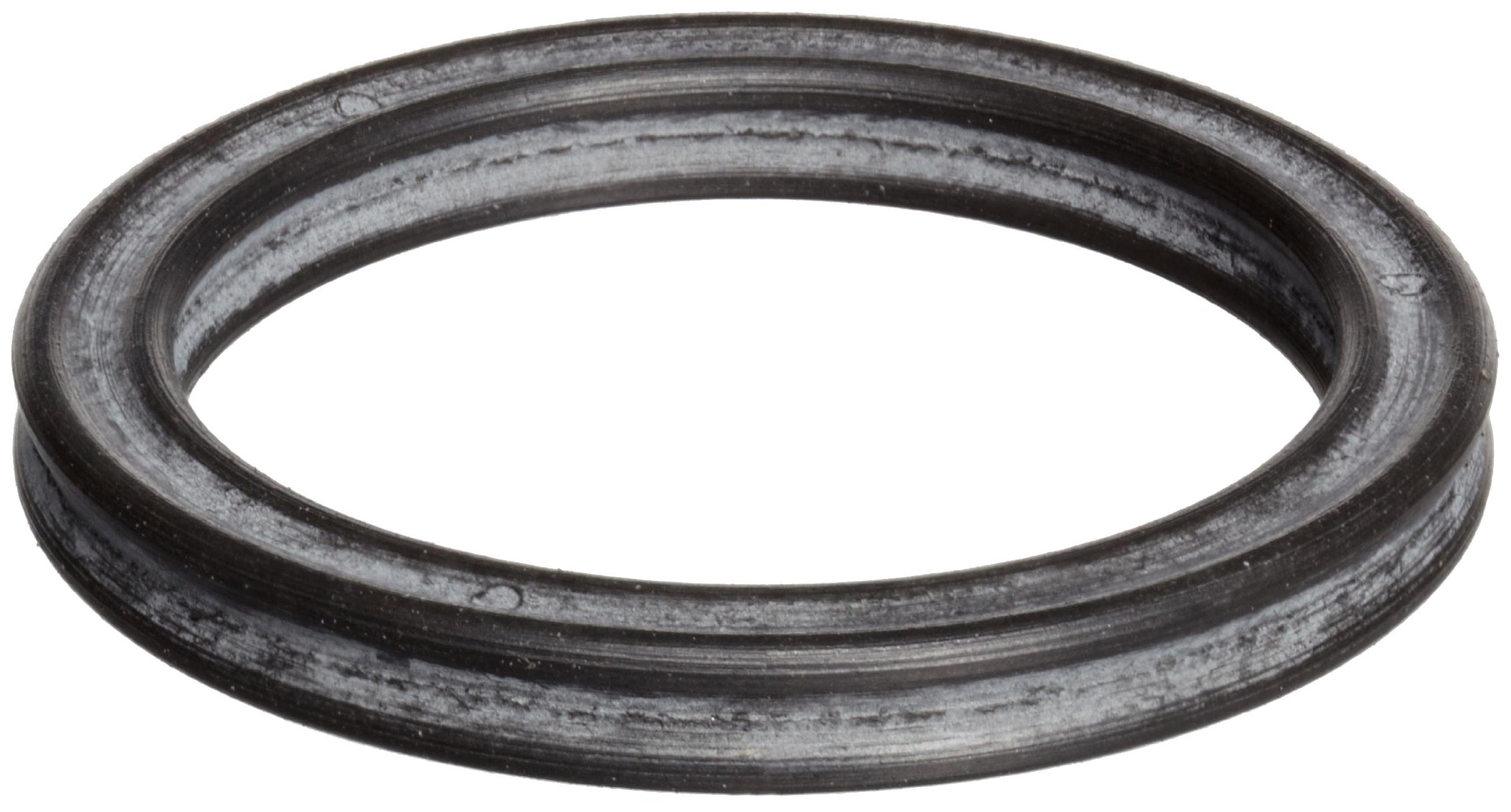

This quad-ring is made of black Buna-nitrile (also called Buna-N), has a durometer (hardness) of 70A, and can be used in a wide variety of static and dynamic sealing applications.

This Buna-nitrile quad-ring has high tensile strength, and abrasion, tear, and compression set resistance. Buna-nitrile is acceptable for temperature applications between -30 degrees F (-34 degrees C) to 250 degrees F (121 degrees C). It is compatible for use with petroleum, HFA, HFB, and HFC fluids, vegetable oil, and other aliphatic hydrocarbons. Buna-nitrile is vulnerable to ozone, sunlight, and weathering and should therefore not be used in ozone-generating electric motors, welding equipment, or in applications with direct exposure to UV light.

Buna-nitrile quad-rings have a shore durometer of 70A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.

Quad-rings, also called X-rings, provide a pressure and fluid seal between overlapping surfaces in static and dynamic sealing applications, and are commonly used in engines, faucets, flanges, valves, and various cylinders. They have a four-lobe design, to provide two contact points, which results in less friction, twisting and leakage. Quad-rings are available in a number of different sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.

Buna quad-rings meet standards defined by Aerospace Standard AS568A, Aerospace Size Standard for O-rings.
