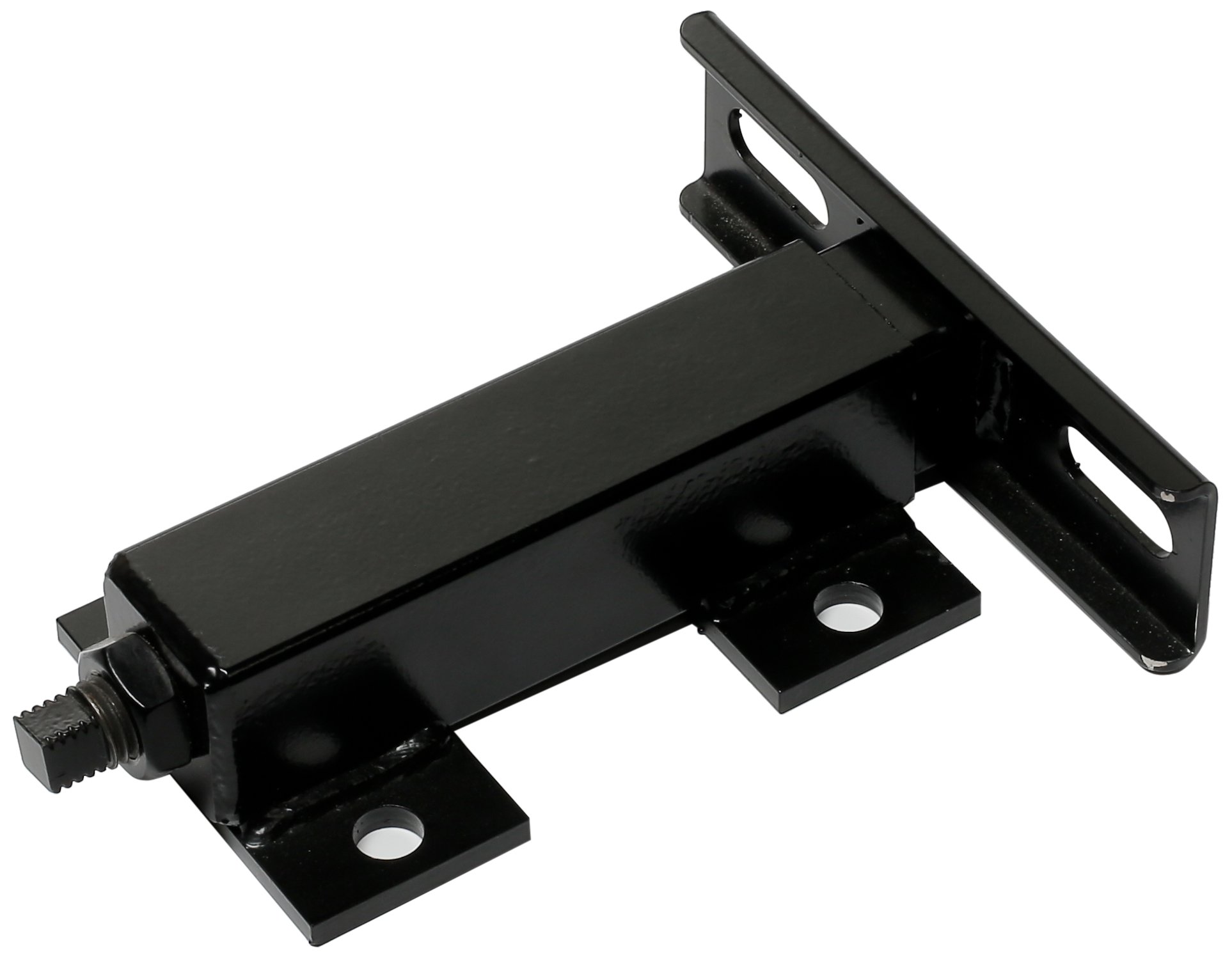

Bryant 51008 Conveyor Take-Up Tensioner, Painted Steel, 9" Adjustment, 1/2"-1" Bore

Be the first to review this item


Specifications for this item
Number of Items
Bore Diameter
1/2  inches
Material Type
Painted Steel
Part Number
Brand Name

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 20? Order in-stock items in the next 5 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Spring-loaded tensioner for use on conveyor belt systems with bearing bore sizes from 1/2 to 1"
  • Powder-coated mild steel construction for strength, durability, and resistance to corrosion
  • 9" take-up stroke with a maximum holding force of 700 lb.
  • 0.625-11UNC-2A adjusting rod for precise tension adjustment
  • Retracted body length of 14.375" with mounting bolt holes spaced 2.625" apart vertically and 11.063" horizontally for secure mounting

Package Details

Shipping Weight: 5 pounds
Package Size: 14.5 x 5.5 x 1.5 inches

Product Description

This Bryant 51008 conveyor take-up tensioner has a 9" take-up stroke and a maximum holding force of 700 lb. It is suitable for use on conveyor belt systems and accommodates pillow block bearings with bores from 1/2 to 1". Its spring compression system compensates for expansion or contraction of the conveyor belt due to changes in temperature, shock caused by startup loads or sudden application of heavy loads, and slack caused by belt wear. The tensioner is constructed of powder-coated mild steel for strength, durability, and resistance to corrosion and has a retracted length of 14.375" and an expanded length of 23.375". It has a 0.625-11 Unified National Coarse (UNC) threaded Class 2A adjusting rod that allows for precise tension adjustment. The foot mounts for the tensioner have four 0.563" bolt holes spaced 2.625" apart vertically and 11.063" horizontally for a secure mount on the conveyor. This conveyor take-up tensioner is suitable for use on conveyor belt systems in a range of industrial settings.

Belt and chain tensioners reduce belt or chain slack that occurs in power transmission drive systems through normal operation. Slack reduces drive efficiency and decreases the life of drive components. Belt and chain tensioners help to maintain the correct drive belt or chain tension in a system by reducing this slack and transmitting drive torque uniformly, resulting in reduced noise and vibration and decreased sprocket, pulley, belt, or chain wear. They also reduce the risk of over-tensioning that exists with manual retensioning operations. Tensioners are available in three categories: fixed, adjustable, and automatic. Fixed tensioners must be remounted in order to alter the tension of a drive system. Manual tensioners require operators to adjust screws or reposition parts as belt or chain slack increases. Automatic tensioners apply tension as needed through the use of weight, springs, elastomers, or compressed air. Factors to consider in selecting a proper tensioner include drive power, speed, torque, load, operating cycles, and available mounting space. Belt and chain tensioners are used in industrial machinery, conveyor belts, automobiles, and other applications.

Bryant Products manufactures tensioners, rollers, pulleys, and chemical coatings for warehousing, distribution, mining, and baggage applications. The company, founded in 1988, is headquartered in Ixonia, WI.
