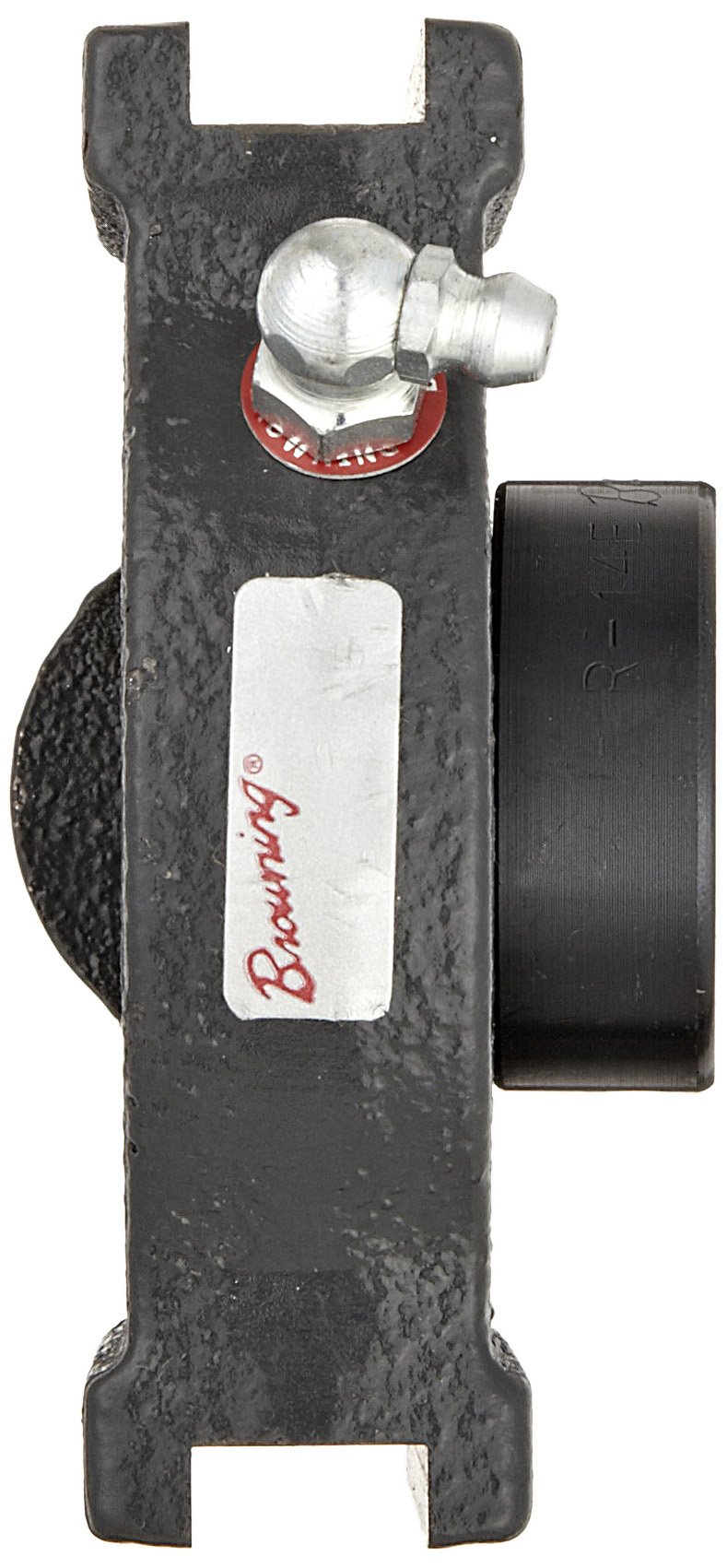

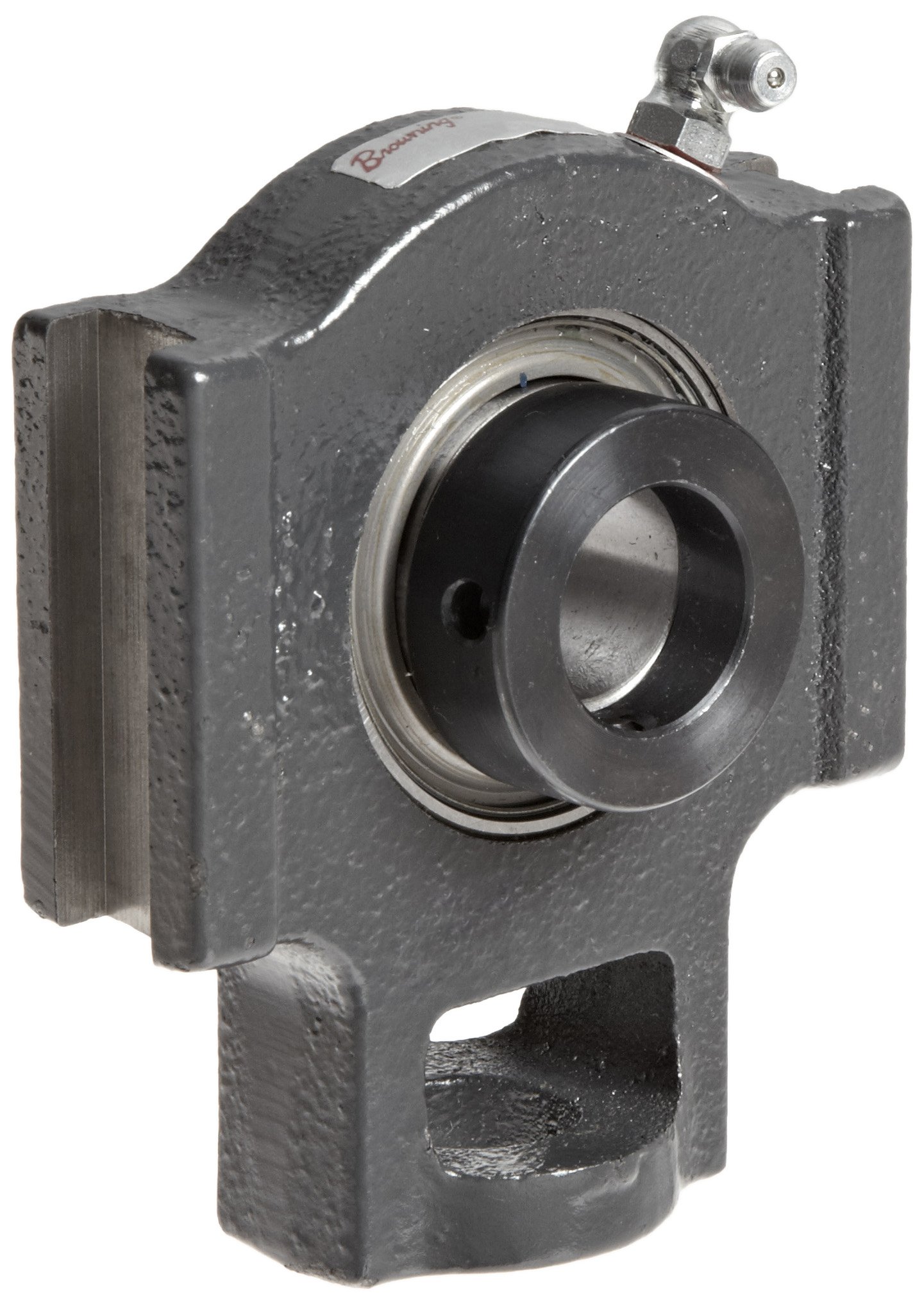

Browning VTWE 100 Series Ball Bearing Take-Up Unit, Intermediate Duty, Eccentric Lock, Non-Expansion, Regreasable, Contact Seal, Cast Iron, Inch

Be the first to review this item

ASIN B007Q3NUKQ

Specifications for this item
Manufacturer Series Number
VTWE
UNSPSC Code
31171500
Brand Name
Browning

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cast iron wide-slot take-up unit for use with take-up frames in applications requiring shaft or belt adjustments
  • Intermediate-duty ball bearing insert supports radial or combination radial and thrust loads
  • Single lip contact seals help retain lubricant and prevent contamination
  • Eccentric locking collar for securing the bearing onto the shaft
  • Nylon retainer spaces balls to help distribute the load and minimize friction, vibration, and noise

Product Description

This Browning VTWE 100 series ball bearing take-up unit with an eccentric lock, cast iron housing, and contact seals is designed for use with take-up frames in applications that require adjusting shafts or belt tension, such as conveyor systems. The one-piece housing is made of cast iron for rigidity and vibration damping, has a semi-solid base to provide mounting stability, and slotted sides that fit into a take-up frame to allow movement within the frame. The intermediate-duty, deep-groove ball bearing insert in the housing is made of 52100 chromium steel supports average radial loads and combination radial and thrust loads. For increased shaft support and holding power, the bearing has an extended inner ring and a zone-hardened inner race. A rivet on the outer ring prevents rotation of the ring in the housing, reducing heat buildup and prolonging the bearing life. This self-aligning bearing has a spherical outer surface that compensates for misalignments, and honed races for quiet operation. The bearing has an eccentric (asymmetric) self-locking collar that fits over one side of the inner ring extension to lock the collar on the shaft. A set screw further secures the bearing. This locking type is suitable for applications where the shaft rotates in a single direction. Single lip contact seals on both sides of the bearing help retain lubricant applied at manufacture and prevent contamination. A nylon retainer spaces the ball rollers for even load distribution and prevents contact to minimize friction, vibration, and noise. This bearing has a grease fitting on the outer surface for reapplying lubricant. Operating temperatures for this bearing range from -20 to +200 degrees F. This wide-slot take-up bearing unit is suitable for applications including conveyors, food processing equipment, and agricultural equipment, among others.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Browning Bearings manufactures V-belt drives, gearing, bearings, and other power transmission components. The company, founded in 1886, is headquartered in Maysville, KY.
