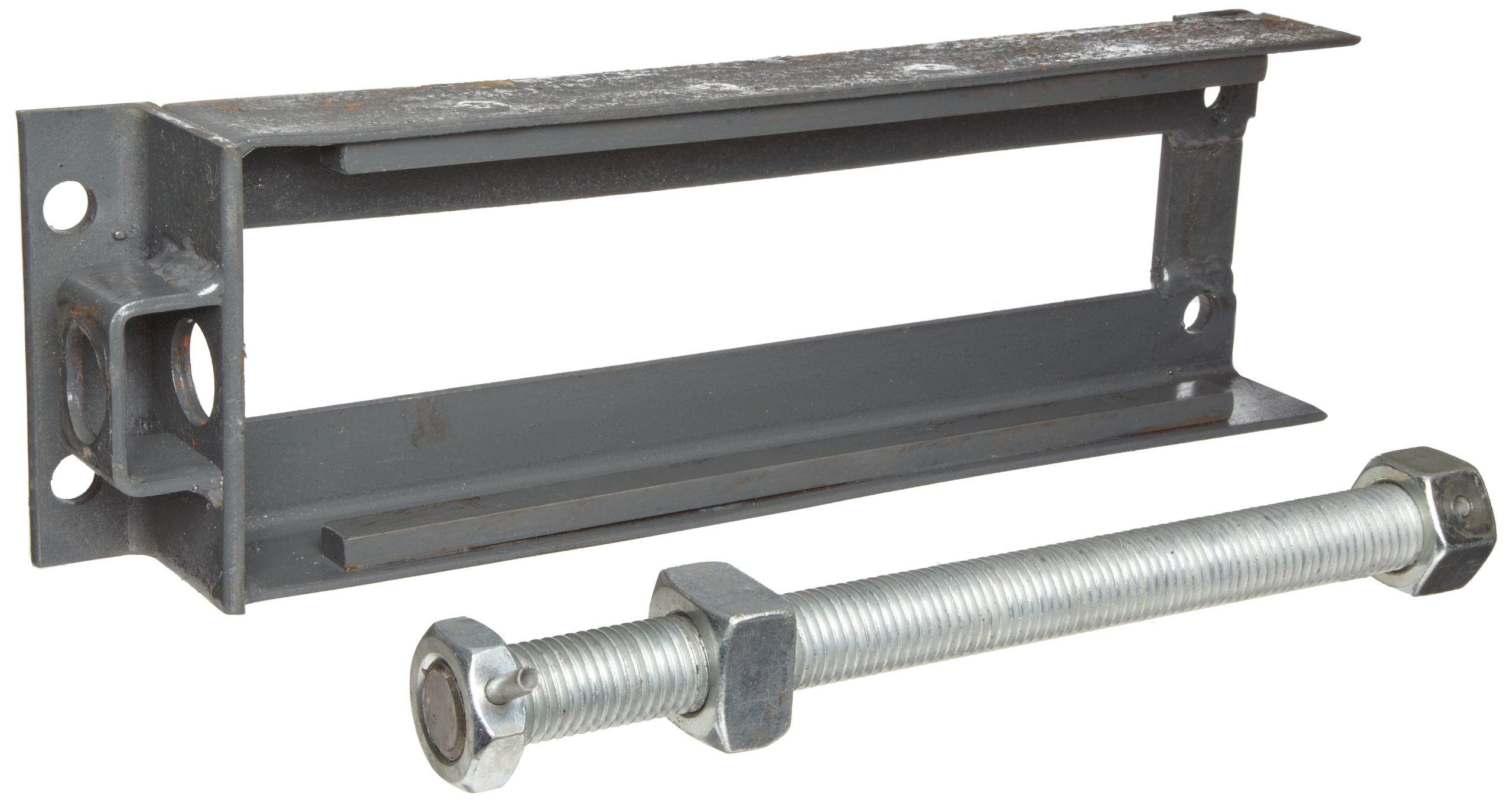

Browning SF Series Center Pull Take-Up Frame, 4 Bolt, Standard Duty, Cast Iron, Inch

Be the first to review this item

ASIN B007Q3N2CW

Specifications for this item
UNSPSC Code
31171500
Brand Name
Browning

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Center-pull take-up frame mounts with take-up bearings for shaft positioning or belt tightening in conveyor applications
  • Four bolt holes provide secure side-mounting to conveyor systems
  • Cast iron for structural rigidity and vibration damping
  • Threaded adjustment rod and nut centered in the frame provides even tensioning and positions the bearing
  • Side rails guide movement of the slotted bearing in the frame

Product Description

This Browning SF series center pull take-up frame with four bolt holes is suitable for use with take-up bearings (sold separately) to position shafts or tighten belts in conveyor applications. The frame is made of cast iron for structural rigidity and vibration damping and has four bolt holes for secure mounting to a conveyor system. A threaded rod and adjustment nut in the center of the frame positions the bearing along the frame and provides consistent conveyor belt tensioning. Side rails in the frame guide movement of the take-up bearing along the frame length. This standard duty take-up frame is suitable for applications including conveyors, food processing equipment, and agricultural equipment, among others.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Browning Bearings manufactures V-belt drives, gearing, bearings, and other power transmission components. The company, founded in 1886, is headquartered in Maysville, KY.
