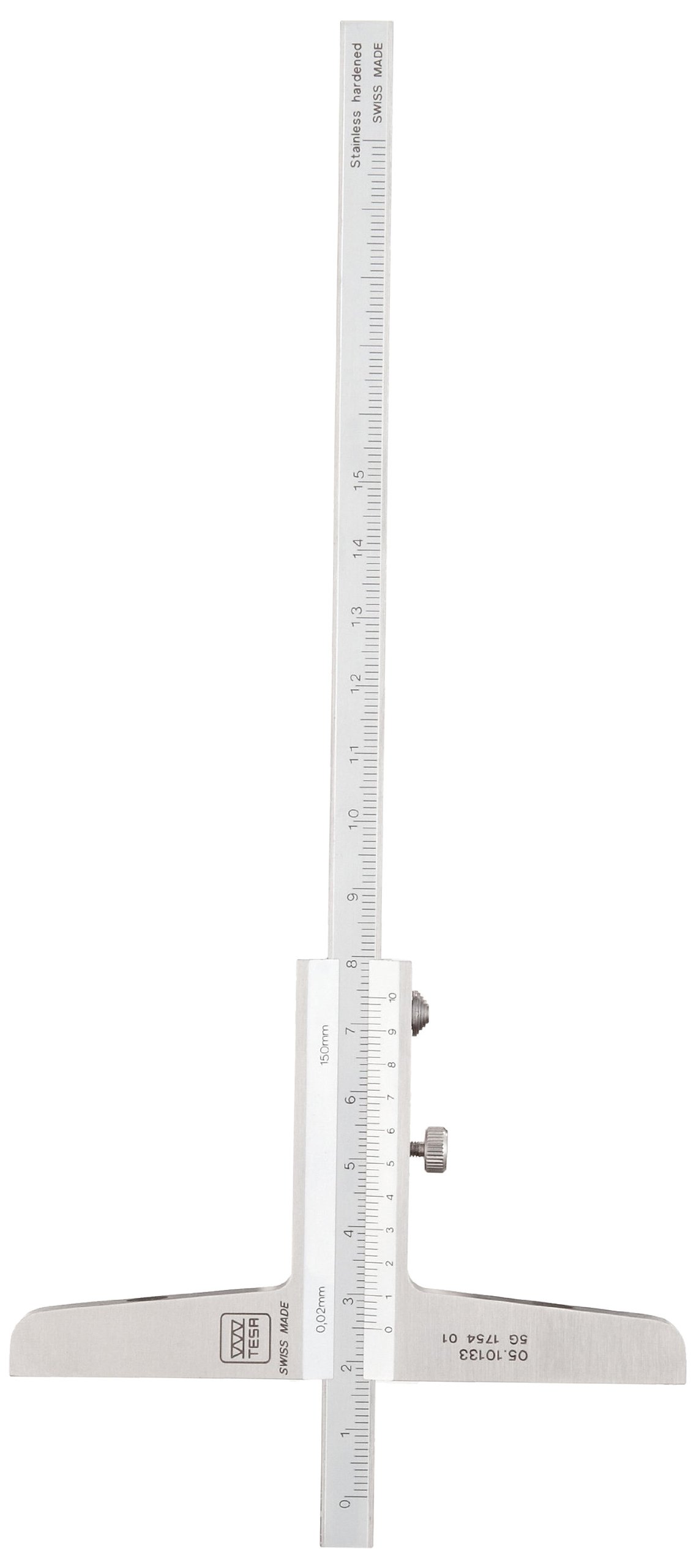

Brown & Sharpe TESA Vernier Depth Gauges, With a Flat Measuring Face, Caliper Type, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Depth Caliper
Material Type
Stainless Steel
Style Name
Vernier
UNSPSC Code
41112401
Brand Name
Brown & Sharpe
System of Measurement
Metric

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-2 of 2
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-2 of 2
0-150mm 0.02mm +/-0.03mm 00510133 B001BXZIJS yes $108.93 Buy Options
0-250mm 0.02mm +/-0.03mm 00510143 B001BXXFB6 yes $151.82 Buy Options

Key Features

  • Measurement range for series of 0 up to 250mm, and resolution of 0.02mm
  • Vernier scale for precise measurement in fine units
  • Satin chrome scale background for readability with main scale set back for durability
  • Hardened stainless steel for durability and accurate measurements
  • Conforms to DIN 862 and NF E 11-096 standards

Product Description

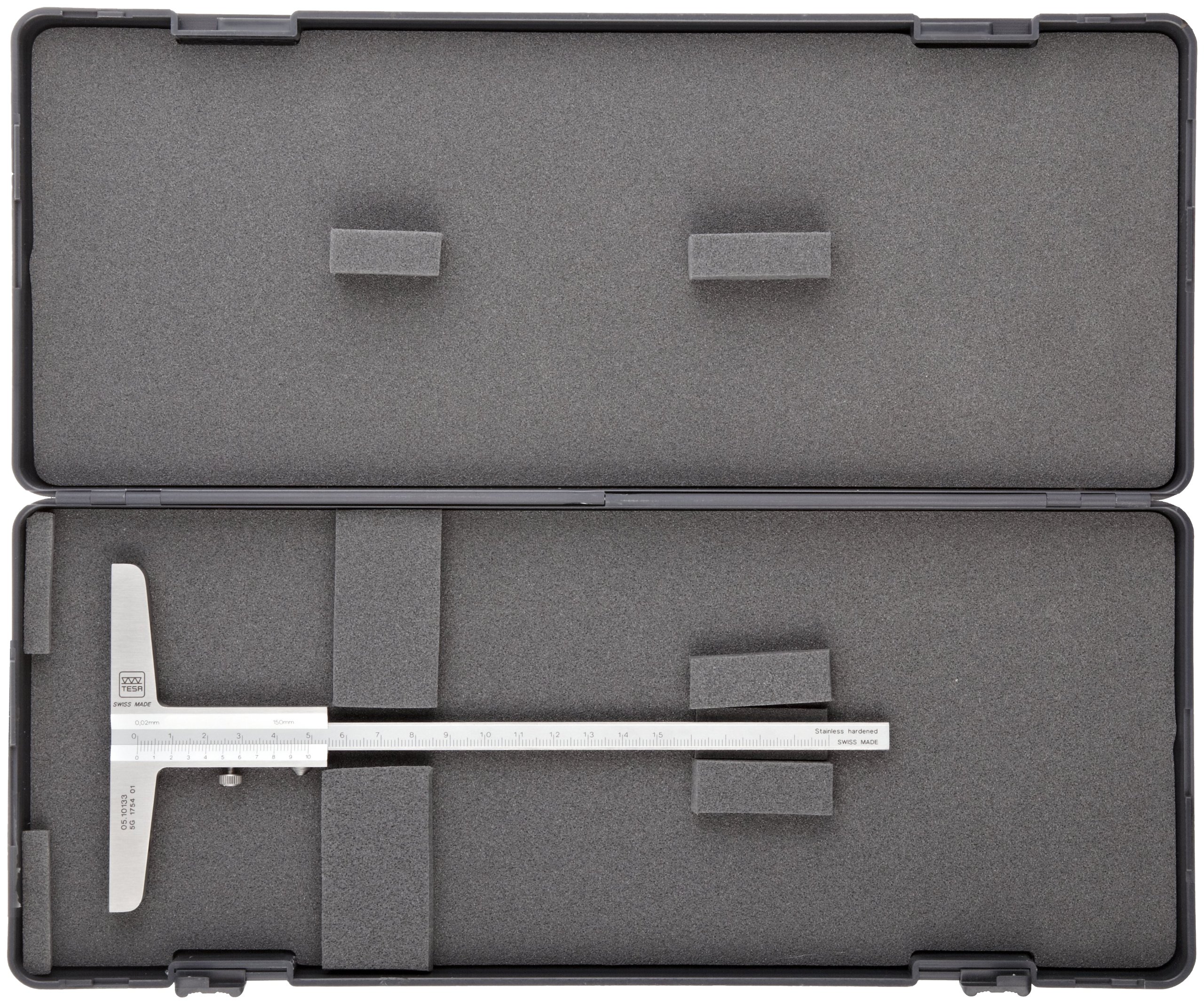

The Brown & Sharpe TESA Vernier Depth Gauges, With a Flat Measuring Face, Caliper Type, Metric, depending on the model, has a measurement range of 0 to 150mm or 0 to 250mm, and are graduated in 0.02mm intervals, with + or - 0.03mm of accuracy. The vernier scale provides precise, fine measurements. The depth gauges have a scale background of satin-chrome for readability and the scale is slightly set back from the front edge for durability. They are made of hardened stainless steel for accurate measurements and conform to the Deutsches Institut für Normung (DIN) 862 (style C-2) and Norme Française (NF) E 11-096 standards. The units come with a plastic case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, is headquartered in North Kingstown, RI.
