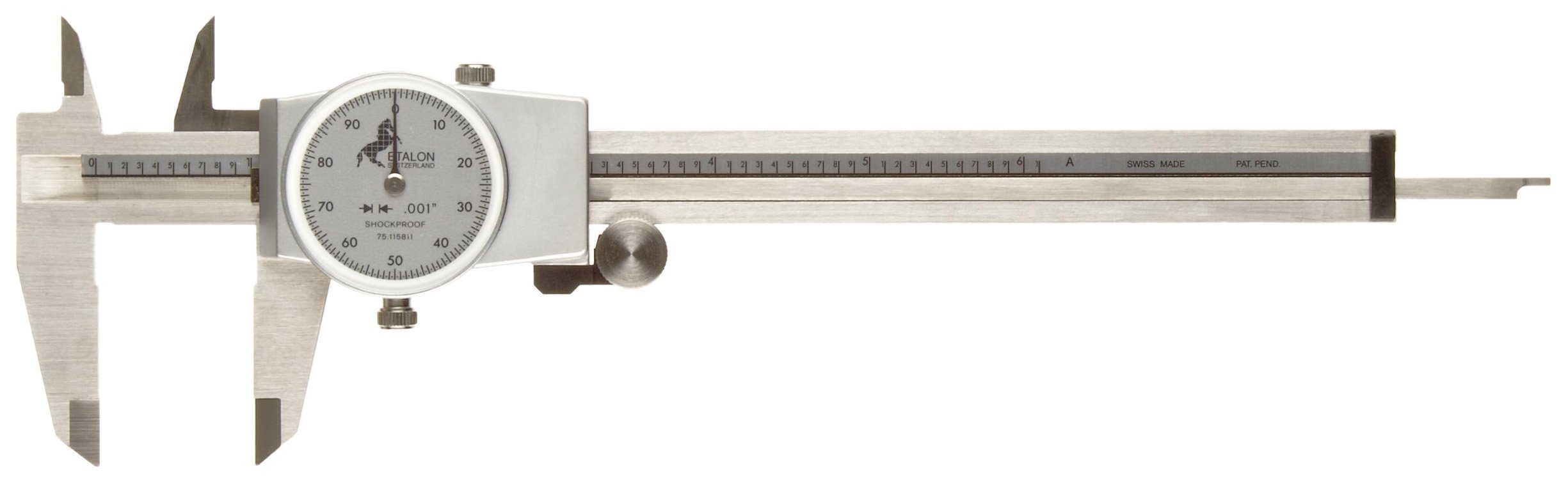

Brown & Sharpe 75 Series Dial Caliper, Stainless Steel, Inch, Standard Jaw, For Depth, Inside, Outside, Step Measurements

Be the first to review this item

Product Specifications
Manufacturer Series Number
75 Series
Specific Uses For Product
Depth , Inside , Outside , Step
Tip Description
Standard
Material Type
Stainless Steel
Brand Name
Brown & Sharpe TESA
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 14 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Range Accuracy Graduation Dial Face Color Max Groove Depth Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-2 of 2
0-6" +/-0.001" 0.1" White 40mm Thumb roller, inspection report with a declaration of conformity 75.115811 B0037QFFI6 9 $156.19 Buy Options
0-6" +/-0.001" 0.1" Black 40mm Thumb roller, inspection report with a declaration of conformity 75.116550 B0002FTZ0O 12 $138.24 Buy Options

Key Features

  • Accuracy of 0.001", with one revolution equivalent to 0.100" for precise measurements
  • Hardened stainless steel construction for corrosion resistance and long life
  • 1.25" diameter rotating dial has a lock screw to hold the sliding jaw in position, to help ensure consistent measuring
  • Covered rack keeps foreign matter from clogging the gear, to help prevent measurement error
  • Linear accuracy meets DIN 862 standards

Product Description

The Brown & Sharpe TESA Etalon dial caliper has an accuracy of 0.001", a 1.25" diameter rotating dial with a lock, is made of stainless steel, and measures in inches. The covered rack helps prevent measurement error by protecting the gear from foreign matter. Linear accuracy meets Deutsches Institut für Normung (DIN) 862 standards. These calipers are for use in measuring inside dimensions (ID), outside dimensions (OD), depth, and step.

The caliper measures 0.100" per revolution of the dial. The lock screw locks the dial and holds the sliding jaw in position. Adjustable zero set allows the user to set zero at a convenient distance. The depth rod is integrated into the rack of the caliper, unlike many calipers that offer a detachable depth rod, or none at all. The hardened stainless steel components, including the bar, measuring surfaces, rack, gears, and depth rod, offer corrosion resistance, increased accuracy, and long life. Spring anti-backlash control offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls, which prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash; spring anti-backlash systems use a spring to add a compressive force, thereby minimizing backlash.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001 and is headquartered in North Kingstown, RI.

What’s in the Box?

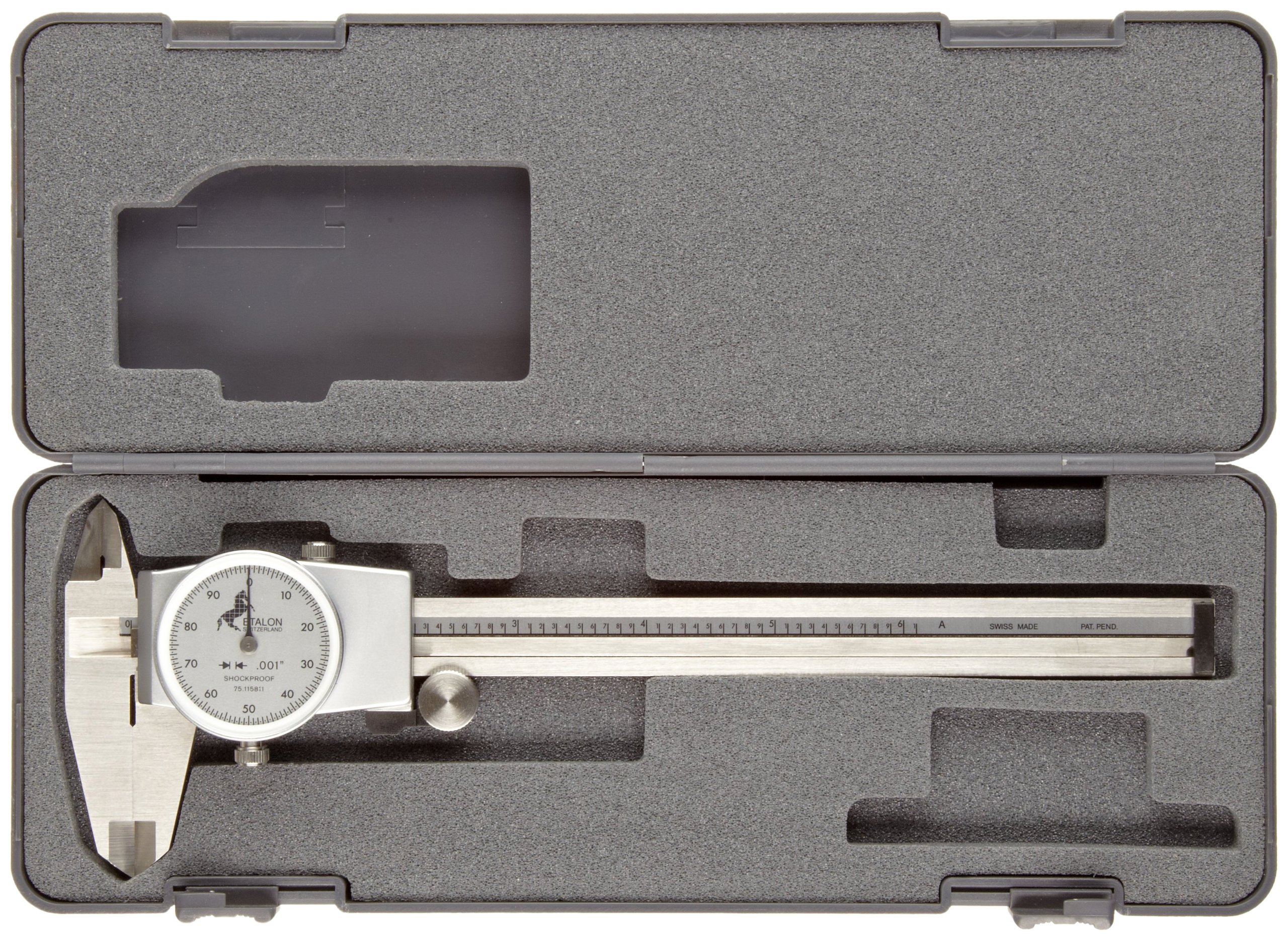

  • Brown & Sharpe TESA Etalon dial caliper
  • Inspection report with declaration of conformity
  • Plastic case
