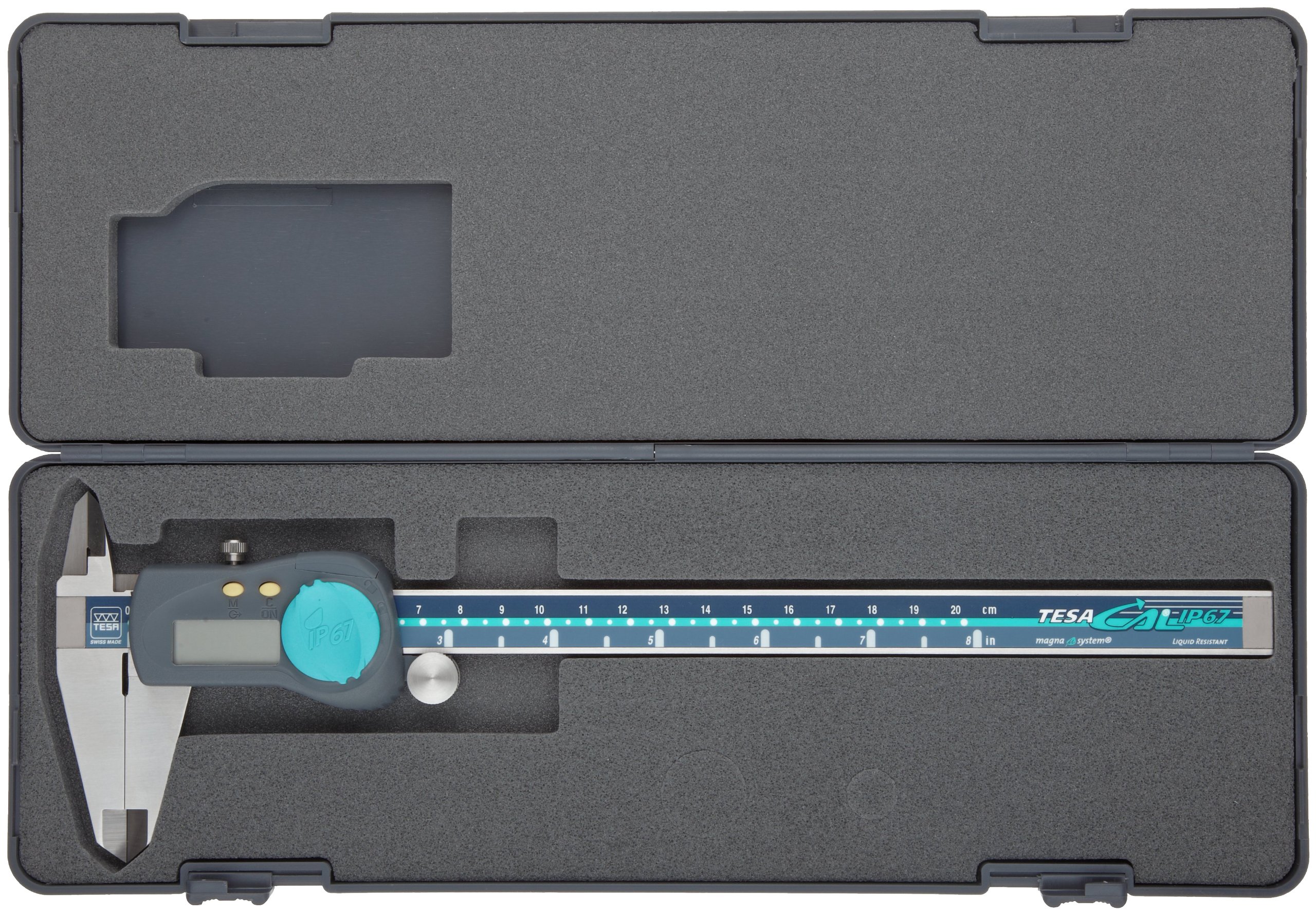

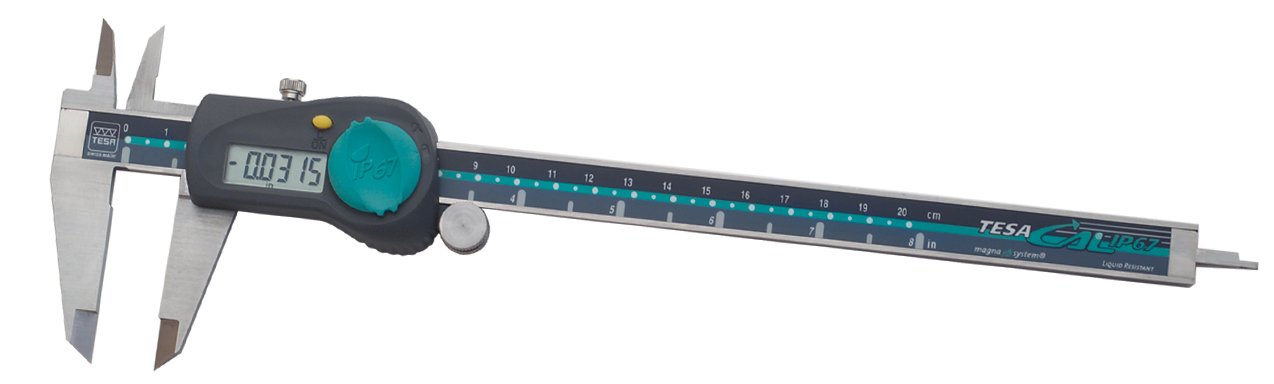

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Brown & Sharpe TESA Digital Caliper, LCD, Battery Powered, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
IP67
Material Type
Stainless Steel
Power Source Type
Battery Powered
Style Name
LCD
UNSPSC Code
41111600
Brand Name
Brown & Sharpe
System of Measurement
Inch and Metric

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share
Currently showing 1-0 of 0
Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price

Currently showing 1-0 of 0

No results match your selection criteria.

Key Features

  • Electronic measuring system is immune to magnetic fields
  • Hardened stainless steel construction for corrosion resistance and long life
  • Measure in inches or millimeters
  • IP67 rating, to help ensure protection against coolant, water, dirt, and dust
  • Linear accuracy meets DIN 862 standards

Product Description

The Brown & Sharpe TESA digital caliper uses an electronic measuring system that is immune to magnetic fields. The caliper is made of stainless steel, measures in inches or millimeters, and has a 1/4" high LCD for readability. Linear accuracy meets Deutsches Institut für Normung (DIN) 862 standards. This caliper is Ingress Protection 67 (IP67) rated, which means that the electronic components are resistant to debris and to submersion under standard conditions for up to 30 minutes. These calipers are suitable for use in applications where the highest accuracy is required, especially in scientific research and in industries where parts must fit exactly.

Stainless steel resists corrosion, rust, and staining. The caliper works with one CR 2032 3V lithium battery, which will provide approximately 1.5 years of use (sold separately). The caliper preserves battery life by entering an idle mode after 10 minutes of inactivity and automatically shutting off after 2 hours.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001 and is headquartered in North Kingstown, RI.
