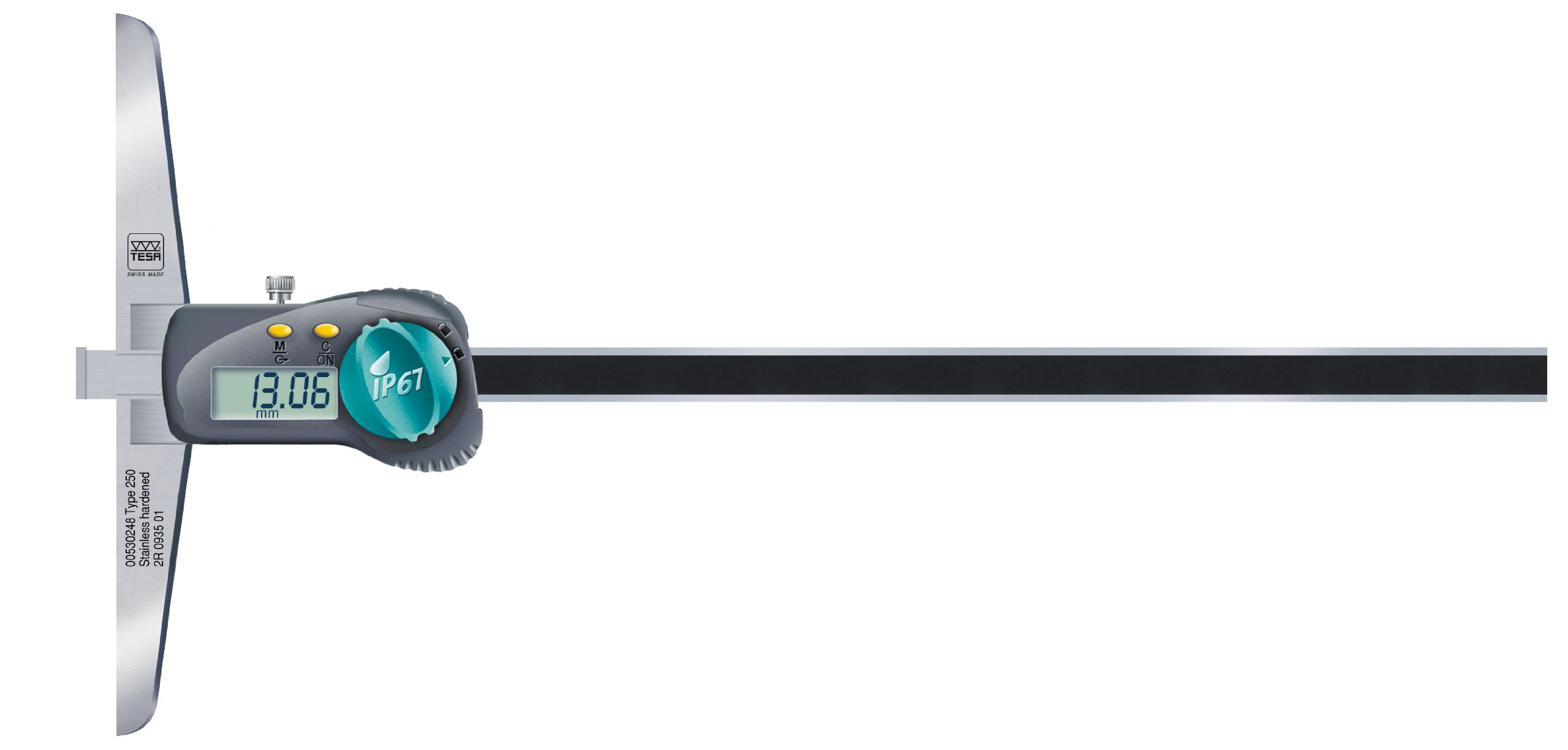

Brown & Sharpe TESA 00530248 IP67 LCD Depth Gauge, Caliper Type, 0-10"/0-250mm Range, 0.0005"/0.01mm Resolution, +/-0.05mm Accuracy, With Rotary Stop Plate

Be the first to review this item

ASIN B001BXVITM

Specifications for this item
Range
0-250mm
Part Number
00530248
Resolution
0.01mm
Brand Name
Brown & Sharpe
Measurement Accuracy
+/-0.03mm
Specification Met
IP67
Maximum Measurement
0-250mm
Style Name
LCD
Special Features
With Rotary Stop Plate
Number of Items
1
Material Type
Stainless Steel
UPC
622419247465
Manufacturer Series Number
IP67 Depth Electronic Caliper
EAN
0622419247465
UNSPSC Code
41112401
System of Measurement
Metric
Overall Length
250  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0 to 10" (0 to 250mm), and resolution of 0.0005" (or 0.01mm)
  • LCD screen displays in U.S./metric
  • Button to lock display for precise measurements
  • Hardened stainless steel construction for durability and accurate measurements
  • Gauge conforms to DIN 862, IP67 (IEC 60529), and CE EN 50081-1 and EN 50082-1 standards

Package Details

Shipping Weight: 2.15 pounds
Package Size: 18 x 7 x 1.3 inches

Product Description

The Brown & Sharpe TESA 00530248 IP67 LCD Depth Gauge, Caliper Type, has a 0 to 10" (0 to 250mm), and a resolution (or smallest graduation interval) of 0.0005" (0.01mm), with + or – 0.05mm of accuracy. The LCD interface is 7mm high and displays in U.S./metric. The gauge has a button to lock the display for accurate measurements and is bi-directional. It is made of hardened stainless steel and has a base of 5.9" (150mm) long. The gauge conforms to the Deutsches Institut für Normung (DIN) 862 (style C-ZS), Ingress Protection 67 (IP67) (IEC 60529), and European Conformity (CE) marking EN 50081-1 and EN 50082-1 standards. The digital interface supports RS232 data output. The unit includes a 3V lithium battery and a protective case. It weighs 2.15 lb. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, is headquartered in North Kingstown, RI.

What's in the Box?
  • Brown & Sharpe TESA 00530248 depth gauge
  • 3V lithium battery, CR 2032
  • Case
