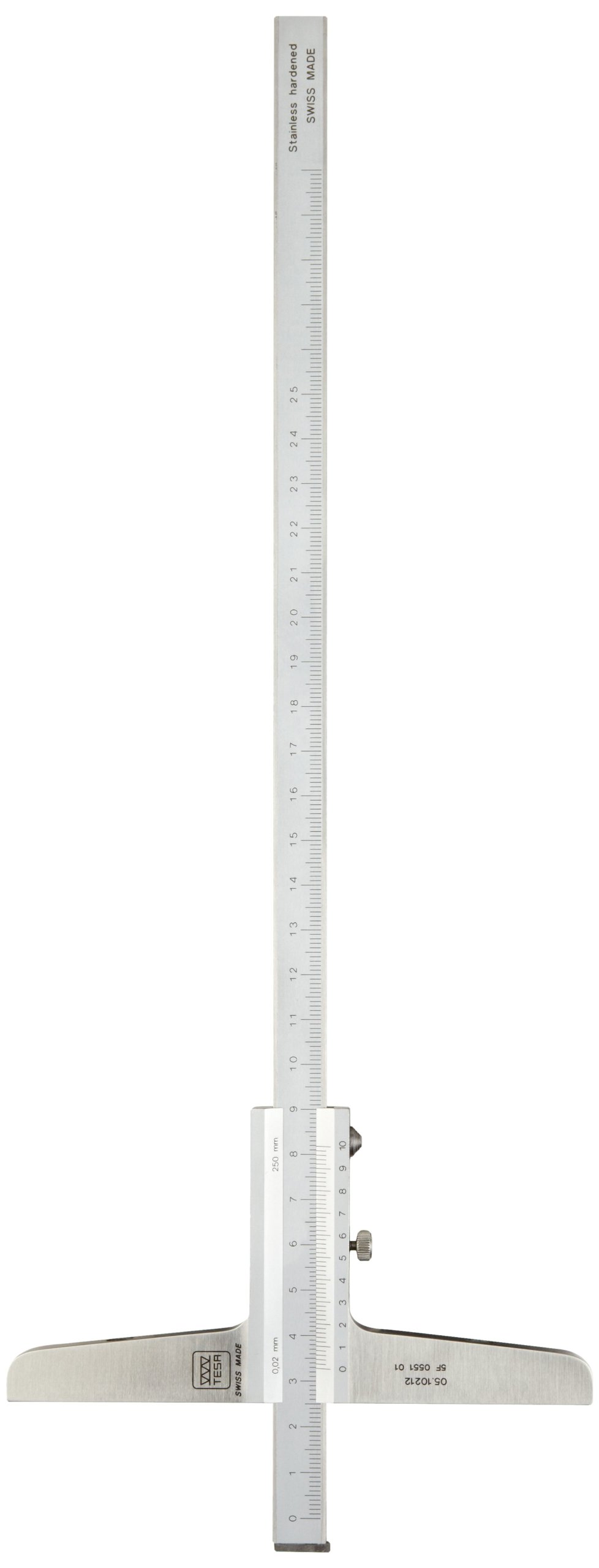

Brown & Sharpe TESA 00510212 Vernier Depth Gauge, Caliper Type, 0-250mm Range, 0.02mm Resolution, +/-0.03mm Accuracy, Rotary Stop Plate

Be the first to review this item

ASIN B001BY1FN0

Specifications for this item
Inside Depth
130  millimeters
Range
0-250mm
Part Number
00510212
Resolution
0.02mm
Brand Name
Brown & Sharpe
Measurement Accuracy
+/-0.03mm
Maximum Measurement
0-250mm
Style Name
Vernier
Special Features
Rotary Stop Plate
Number of Items
1
Material Type
Stainless Steel
UPC
622419228709
Manufacturer Series Number
Depth Caliper
EAN
0622419228709
UNSPSC Code
41112401
System of Measurement
Metric
Overall Length
250  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 10 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0 to 250mm, and resolution of 0.02mm
  • Vernier scale for precise measurement in fine units
  • Satin chrome scale background for readability with main scale set back for durability
  • Hardened stainless steel for durability and accurate measurements
  • Gauge conforms to DIN 862 and NF E 11-096 standards

Package Details

Shipping Weight: 1.75 pounds
Package Size: 18.1 x 7.1 x 1.4 inches

Product Description

The Brown & Sharpe TESA 00510212 Vernier Depth Gauge, Caliper Type, has a measurement range of 0 to 250mm, and a resolution (or smallest graduation interval) of 0.02mm, with + or - 0.03mm of accuracy. The vernier scale provides precise, fine measurement. This depth gauge has a scale background of satin-chrome for readability and the scale is slightly set back from the front edge for durability. It is made of hardened stainless steel for accurate measurements. The gauge conforms to the Deutsches Institut für Normung (DIN) 862 (style C-2) and Norme Française (NF) E 11-096 standards. The shipping weight for this gauge is 1.75 lbs and it comes with a plastic case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, is headquartered in North Kingstown, RI.

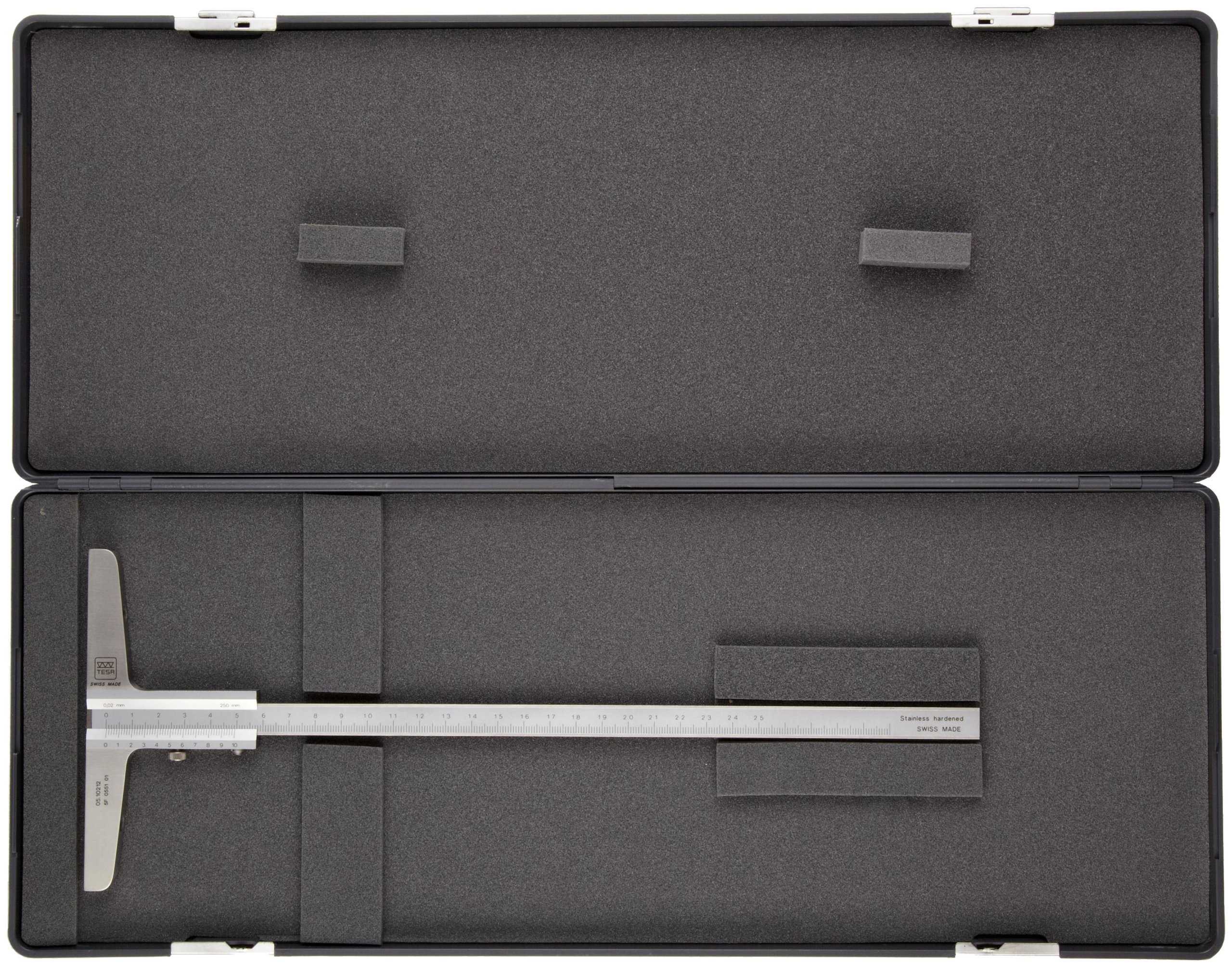

What's in the Box?
  • Brown & Sharpe TESA 00510212 depth gauge
  • Plastic case
