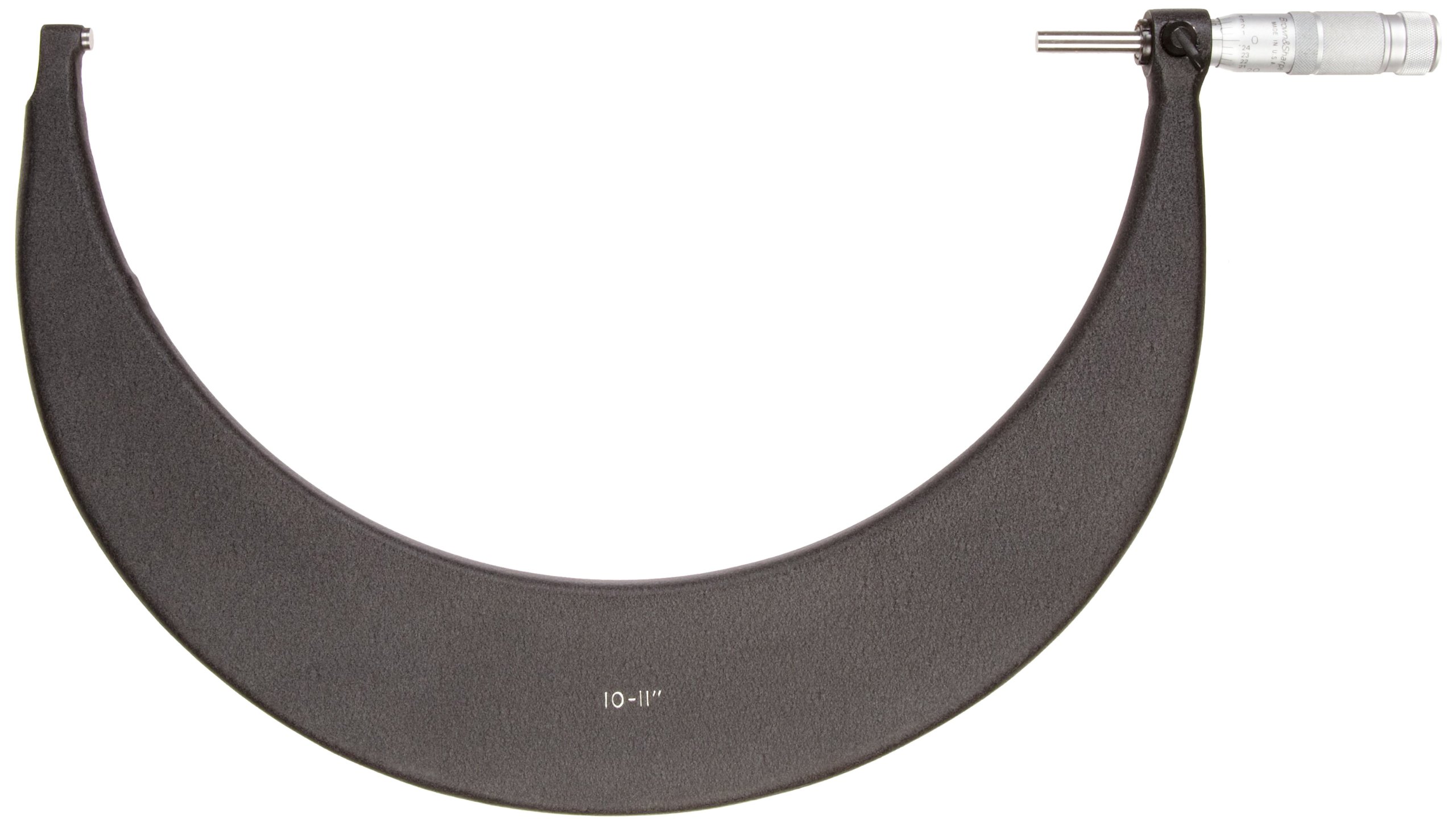

Brown & Sharpe Value Line Outside Micrometer, Friction Thimble, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Value Line Outside Micrometer
Material Type
Carbide Tipped
Brand Name
Brown & Sharpe
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 10 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-12 of 12
0-1" 0.0001" +/-0.004mm 599-1-44 B0006J3GSS yes $94.85 Buy Options
1-2" 0.0001" +/-0.004mm 599-2-44 B0006J3GYW yes $94.85 Buy Options
10-11" 0.0001" +/-0.01mm 599-11-44 B001BY1P6C yes $158.67 Buy Options
11-12" 0.0001" +/-0.009mm 599-12-44 B001BXVNWE yes $67.99 Buy Options
2-3" 0.0001" +/-0.005mm 599-3-44 B0006J3GZ6 yes $108.00 Buy Options
3-4" 0.0001" +/-0.005mm 599-4-44 B001BY1OS6 yes $122.26 Buy Options
4-5" 0.0001" +/-0.006mm 599-5-44 B0006J3H00 yes $136.06 Buy Options
5-6" 0.0001" +/-0.006mm 599-6-44 B001BXXPNO yes $136.73 Buy Options
6-7" 0.0001" +/-0.007mm 599-7-44 B0006J3H0K yes $296.00 Buy Options
7-8" 0.0001" +/-0.007mm 599-8-44 B0006J3H0U yes $52.03 Buy Options
8-9" 0.0001" +/-0.008mm 599-9-44 B000KU62GG yes $192.82 Buy Options
9-10" 0.0001" +/-0.008mm 599-10-44 B0006J3H1O yes $172.63 Buy Options

Key Features

  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Convertible friction drive thimble mechanism helps provide uniform pressure for precise, repeatable measurement
  • Baked enamel finish for protection and durability of frame
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Tungsten carbide facing on spindle and anvil provides wear resistance

Product Description

The Brown & Sharpe Value-Line outside micrometer has a vernier scale in inch units for taking precise outside diameter (OD) measurements, a convertible friction drive thimble mechanism for uniform or variable pressure during adjustment, and tungsten carbide faces for wear resistance.

The micrometer’s frame has a baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.0001”, and has a satin chrome rust- and glare-resistant finish. The ratchet mechanism can be disabled for variable adjustment control. The spindle and anvil have flat measuring faces and are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position.< /p>

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001, and is headquartered in North Kingstown, RI.
