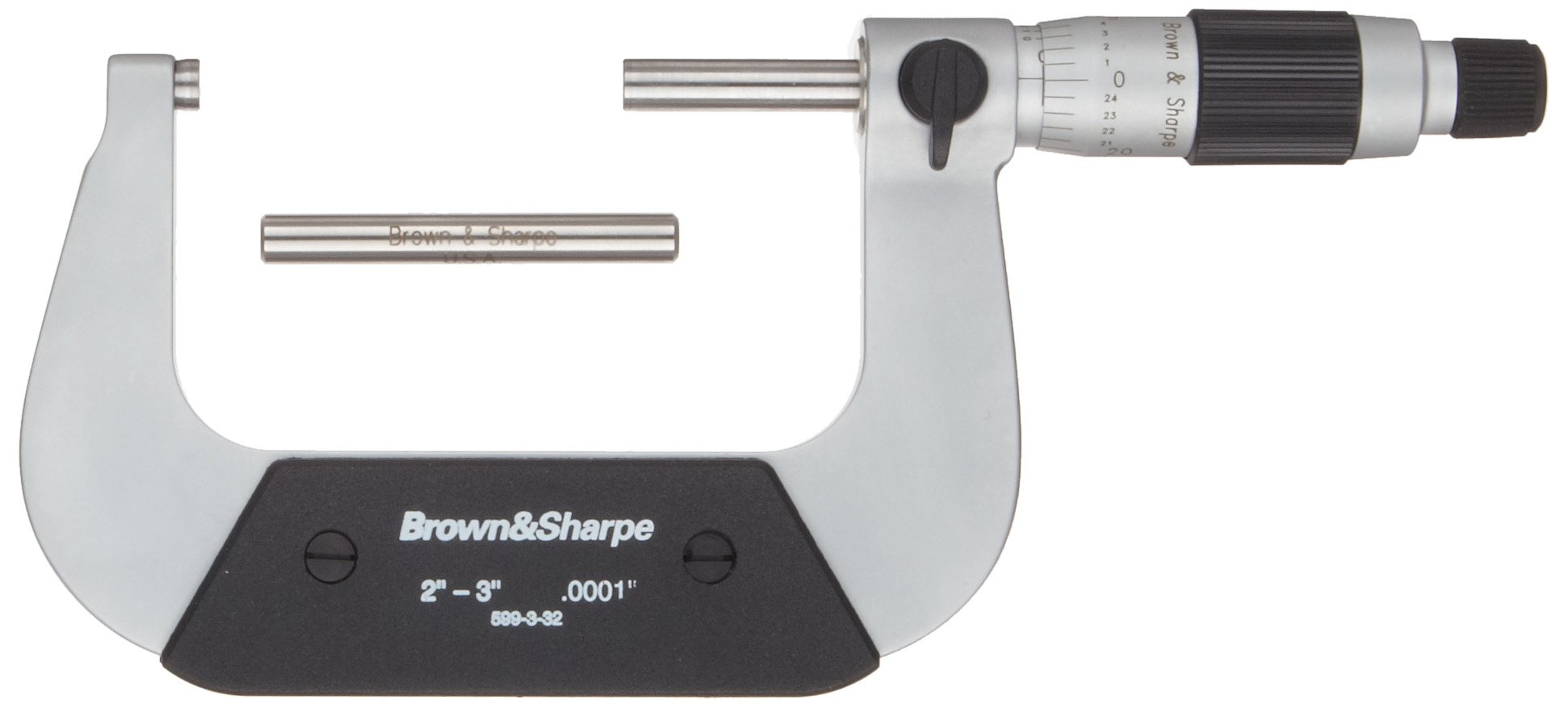

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Brown & Sharpe Chrome Framed Outside Micrometer, Convertible Thimble, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Chrome Framed Outside Micrometer
Material Type
Carbide Tipped
UNSPSC Code
41111601
Brand Name
Brown & Sharpe
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 22 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-7 of 7
0-1" +/-0.004mm 0.0001" Slant/Line Graduations 599-1-31 B0006J4XPI yes $157.49 Buy Options
0-1" +/-0.004mm 0.0001" Slant/Line Graduations, Wooden Case 599-1-31-9 B0006J3EM6 yes $154.99 Buy Options
0-1" +/-0.004mm 0.0001" Straight/Line Graduations 599-1-32 B0006J4XQ2 yes $165.00 Buy Options
0-1" +/-0.004mm 0.0001" Straight/Line Graduations, Wooden Case 599-1-32-9 B0006J3ENA yes $139.56 Buy Options
1-2" +/-0.004mm 0.0001" Straight/Line Graduations 599-2-32 B001BXVN6A yes $210.00 Buy Options
2-3" +/-0.005mm 0.0001" Slant/Line Graduations 599-3-31 B0006J4Y20 yes $238.00 Buy Options
2-3" +/-0.005mm 0.0001" Straight/Line Graduations 599-3-32 B001BXZSGG yes $225.00 Buy Options

Key Features

  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Convertible friction drive thimble mechanism helps provide uniform pressure for precise, repeatable measurement
  • Spindle lock to hold measurements in place
  • Satin chrome finish helps resist rust and reduce glare
  • Tungsten carbide facing on spindle and anvil provides wear resistance

Product Description

The Brown & Sharpe chrome-framed outside micrometer has a vernier scale in inch units for taking precise outside diameter (OD) measurements, a convertible friction drive thimble mechanism for uniform or variable pressure during adjustment, and tungsten carbide faces for wear resistance.

The micrometer’s frame, thimble, and sleeve have a satin chrome rust- and glare-resistant finish. Frames with a base measurement range greater than or equal to 1” are heat-insulated to help reduce temperature-related expansion or contraction. The vernier scale on the thimble and sleeve is graduated to 0.0001”. Depending on the model, graduation markings on the barrel may be straight or slanted to help reduce parallax errors when reading. The ratchet mechanism can be disabled for variable adjustment control. The spindle and anvil have flat measuring faces and are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position. /p>

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001, and is headquartered in North Kingstown, RI.
