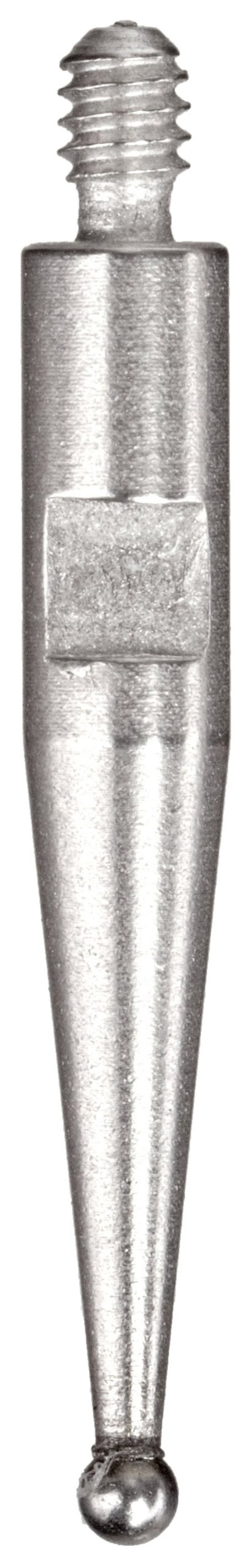

Brown & Sharpe Carbide Ball Contact Points for Bestest Dial Test Indicators, Inch

Be the first to review this item

Product Specifications
Material Type
Carbide
UNSPSC Code
41110000
Brand Name
Brown & Sharpe
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 12 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-7 of 7
0.040" Tip Dia. x 1-7/16" Length 599-7034-40 B0006J3HH8 yes $53.00 Buy Options
0.015" Tip Dia. x 1/2" Length 599-7030-15 B001BY1ACG yes $62.46 Buy Options
0.040" Tip Dia. x 1/2" Length 599-7030-40 B0006J3H2S yes $50.01 Buy Options
0.080" Tip Dia. x 1-7/16" Length 599-7034-80 B0006J3HHS yes $53.00 Buy Options
0.080" Tip Dia. x 1/2" Length 599-7030-80 B001BY1ADK yes $48.96 Buy Options
0.120" Tip Dia. x 1-7/16" Length 599-7034-120 B0006J3HIW yes $53.00 Buy Options
0.120" Tip Dia. x 1/2" Length 599-7030-120 B0006J3HG4 yes $37.03 Buy Options

Key Features

  • Contact point for use with Brown & Sharpe Bestest series dial test indicators
  • Carbide contact point for wear- and magnetic-resistance
  • M1.4x0.3 thread

Product Description

The Brown & Sharpe ball-shaped, carbide contact point has an M1.4x0.3 thread size, and is designed for use with Bestest series dial test indicators. Carbide contact points are resistant to wear and magnetic fields.

Dial indicators are also called dial gauges, dial calipers, and probe indicators. These precision measuring tools are used to accurately measure small linear distances and object sizes. The dial magnifies the measurement so that it can more easily be read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001 and is headquartered in North Kingstown, RI.
