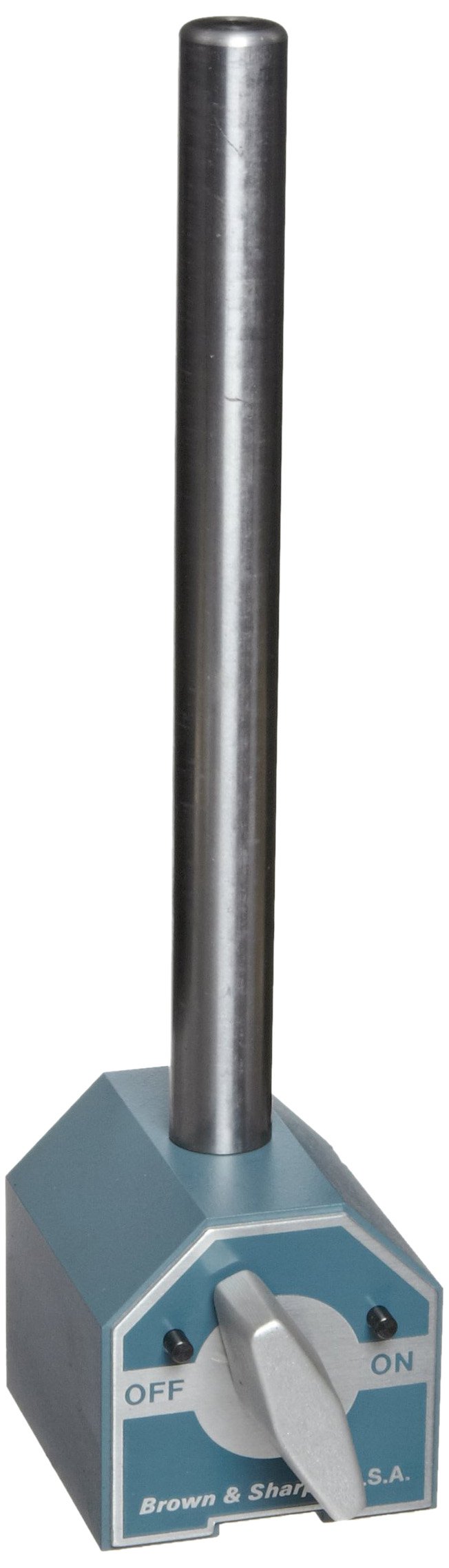

Brown & Sharpe 599-7905 Permanent Magnet Base and Upright, 2.75" Length, 2.4375" Width, 2.4375" Height Base Assembly, 0.738" Upright Diameter

Be the first to review this item

ASIN B001BXV9VE

Specifications for this item
Number of Items
1
Overall Height
2.4375  inches
Overall Width
2.4375  inches
Part Number
599-7905
Outside Diameter
0.738  inches
UPC
622419449647
Brand Name
Brown & Sharpe
EAN
0622419449647
UNSPSC Code
41113600
Overall Length
2.75  inches

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Compatible with Brown & Sharpe dial and dial test indicators, as well as similar indicators from other manufacturers
  • Heavy duty magnetic stand for secure attachment and adhesion to a variety of equipment and work surfaces
  • Simple on/off switch for one-handed operation
  • Dog-house style (with beveled top edges) holds securely upside down and other difficult positions on smooth iron or steel surfaces
  • 85 lbs-force for security

Package Details

Shipping Weight: 5.75 pounds
Package Size: 12.9 x 5 x 4.2 inches

Product Description

The Brown & Sharpe 599-7905 Dog-House Heavy Duty Large Magnetic Base, has a heavy-duty magnetic stand, on/off switch, and holds dial and dial test indicators securely upside down and in other difficult positions on smooth iron or steel surfaces. The 2-7/16 x 2-7/16 x 2-3/44 inch (H x W x D) base grips horizontally, vertically, and upside-down, with a simple on/off switch for one-handed operation. (H is the vertical distance from lowest to highest point; W is the horizontal distance from left to right; D is the horizontal distance from front to back.) Upright base post is 7-13/16” long and 0.987” in diameter. Compatible with Brown & Sharpe dial and dial test indicators, as well as similar indicators from other manufacturers.

Magnetic bases are magnetic fixtures commonly used in metalworking to hold dial indicators, and are also used in other fields, such as optics. Magnetic bases can assist the user with setting up a workpiece in a milling machine, surface grinder, or other machine tool. The vertical post and rod in a magnetic base connect using swiveling connectors, or snugs. This allows free motion of the arm so that the dial indicator can be moved into position on the workpiece. Many magnetic bases have a V-step, which is a V-shaped notch in the base for holding the base to arbors, shafts, and other cylindrical items. The magnetic base has a circular hole through the center. A round permanent magnet is inserted into this hole, and a handle or button is attached to allow the user to rotate the magnet. Rotating the magnet turns the base on and off as this causes the position of the magnetic field to rotate as well. In the on position, the iron is acting as an extension of the magnet, while in the off position, the magnet is acting as a keeper, preventing the magnetic field from extending through the base.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001 and is headquartered in North Kingstown, RI.
