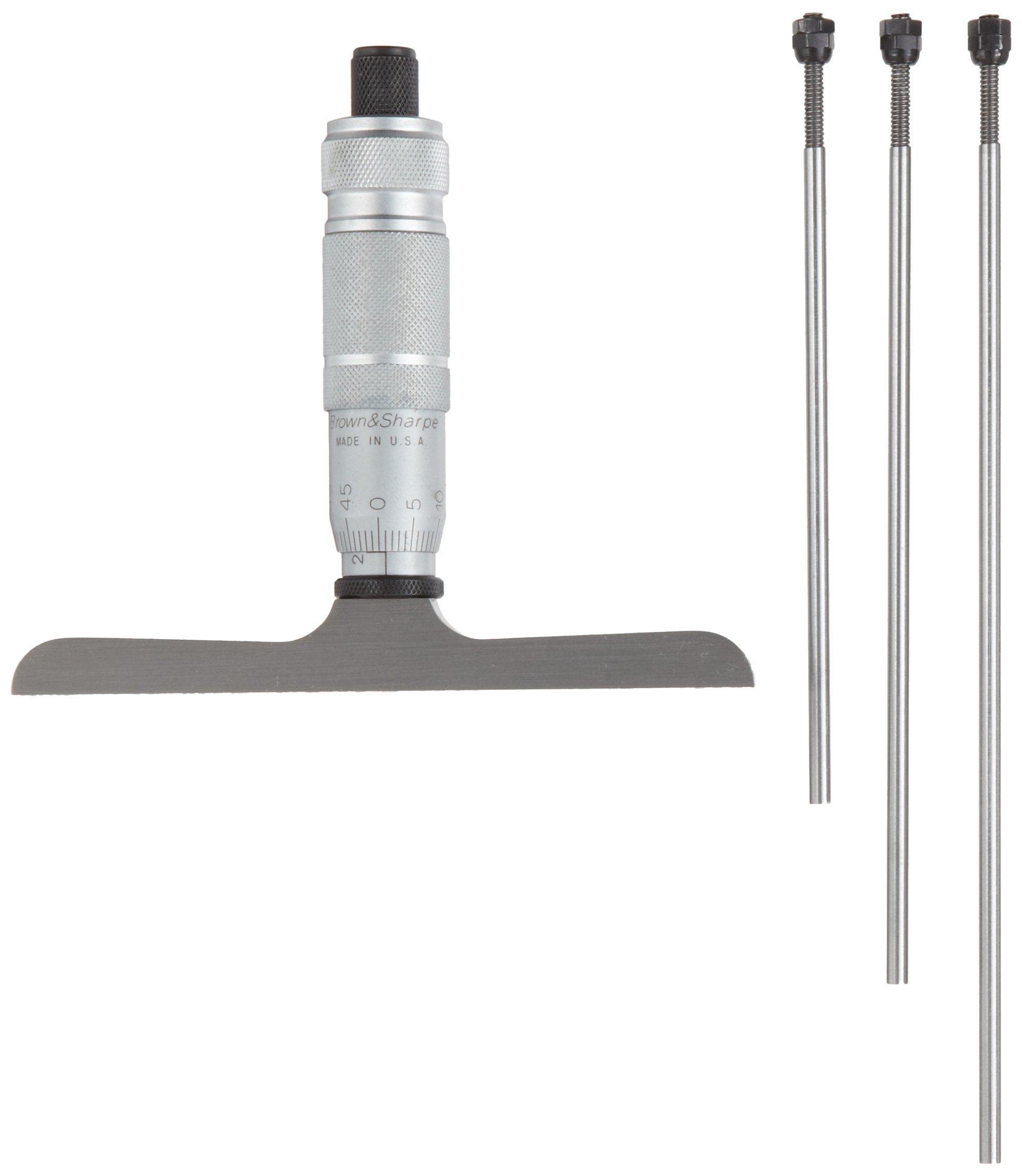

Brown & Sharpe 599-603-243-1 Vernier Depth Gauge, Micrometer Type, 0-75mm Range, 0.01mm Graduation, +/-0.003mm Accuracy

Be the first to review this item

ASIN B0006J3GTW

Product Specifications
Part Number
599-603-243-1
Maximum Measurement
0-75mm
UPC
622419256320
EAN
0622419256320
Measurement Accuracy
+/-0.003mm
Number of Items
1
Range
0-75mm
Resolution
0.01mm
Size Name
0-75mm
Travel
1  inches
Specification for this product family (See all  products)
Manufacturer Series Number
Micrometer Depth Gauge
Material Type
Steel
Style Name
Vernier
UNSPSC Code
41112401
Brand Name
Brown & Sharpe
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 26? Order in-stock items in the next 1 day 10 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range for series of 0 up to 150mm, and resolution of 0.01mm
  • Vernier scale for precise measurement in fine units
  • Friction thimble and hardened base for uniform pressure and accurate measurements
  • Includes three or six, 4mm diameter measuring rods with hardened steel ends for durability and accuracy
  • Conforms to DIN 863 T2 and NF E 11-097 standards

Package Details

Shipping Weight: 2 pounds
Package Size: 15.3 x 5.9 x 1.4 inches

Product Description

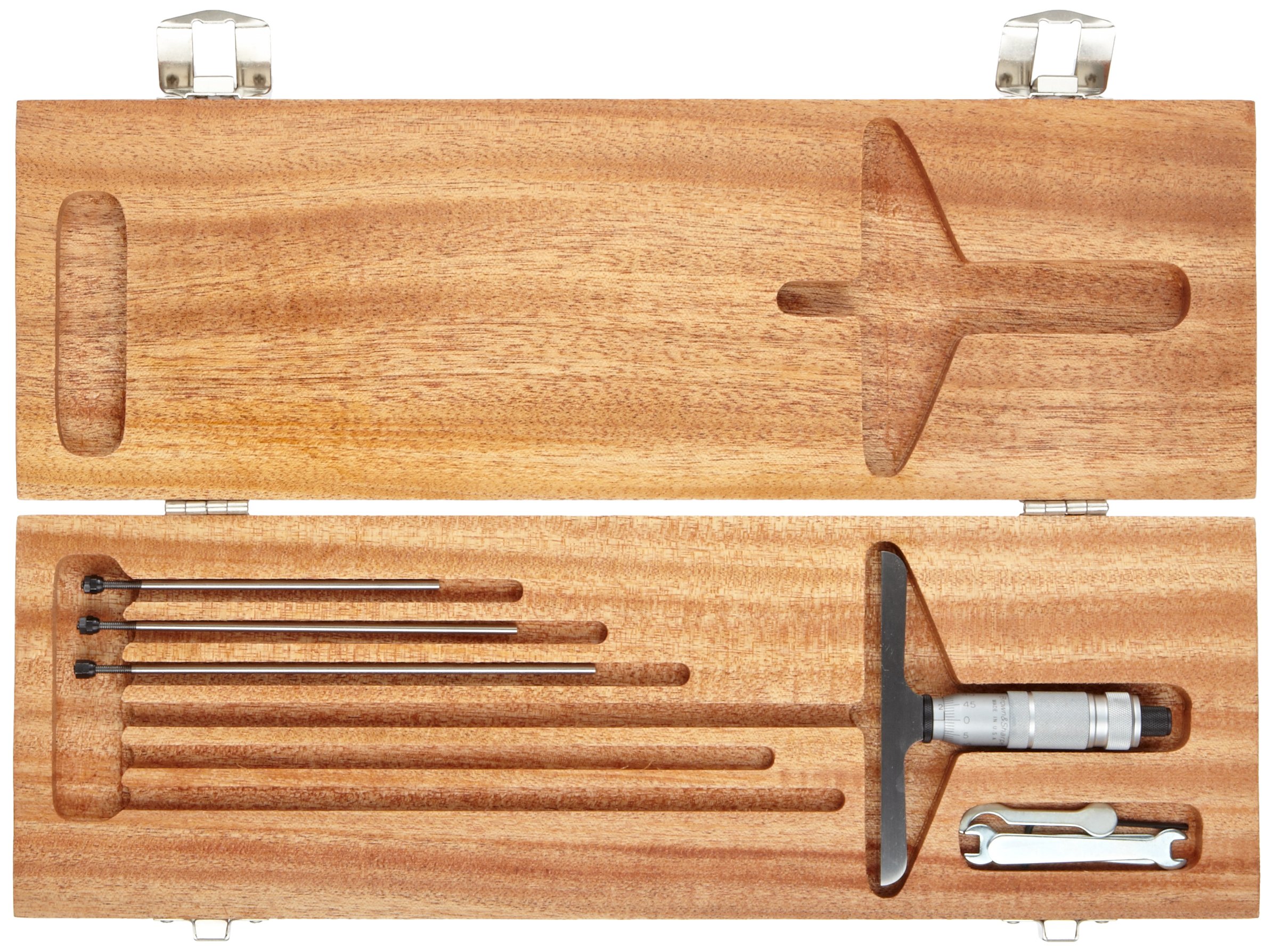

The Brown & Sharpe Vernier Depth Gauges, Micrometer Type, Metric, have a measurement range of 0 to 75mm and 0 to 150mm, and a resolution (or smallest graduation interval) of 0.01mm, with + or - 0.003mm of accuracy. The vernier scale provides precise, fine measurements. These depth gauges have a 100 mm long hardened, precision base,that is used as a reference for measurements. They have a friction thimble for uniform measurements. They include three or six 4mm diameter rods, depending on the model. These gauges conform to the Deutsches Institut für Normung (DIN) 863 T2 (style T) and Norme Française (NF) E 11-097 standards. They have a satin-chrome finish to reduce glare when reading measurements and come with a fitted wooden case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, is headquartered in North Kingstown, RI.
