Brown & Sharpe 599-603-126-3 Vernier Depth Gauge, Micrometer Type, 0-6" Range, 0.001" Resolution, +/-0.003mm Accuracy, 2.5" Base, 6 Rods

Be the first to review this item

ASIN B0006J3GKQ

Specifications for this item
Number of Items
1
Range
0-6"
Travel
1  inches
Material Type
Steel
Part Number
599-603-126-3
Resolution
0.0001"
UPC
622419256252
Brand Name
Brown & Sharpe
EAN
0622419256252
Manufacturer Series Number
Depth Micrometer
Measurement Accuracy
+/-0.003mm
Maximum Measurement
0-6"
Style Name
Vernier
Special Features
2.5" Base, 6 Rods
System of Measurement
Inch
Price:
$229.00
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 11 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0 to 6", and resolution of 0.0001"
  • Vernier scale for precise measurement in fine units
  • Friction thimble and hardened base for uniform pressure and accurate measurements
  • Includes six, 0.125" measuring rods with hardened steel ends for durability and accuracy
  • Gauge conforms to DIN 863 T2 and NF E 11-097 standards

Package Details

Shipping Weight: 2.15 pounds
Package Size: 15.3 x 5.7 x 1.3 inches

Product Description

The Brown & Sharpe 599-603-126-3 Vernier Depth Gauge, Micrometer Type, has a measurement range of 0 to 6", and a resolution (or smallest graduation interval) of 0.0001", with + or - 0.0001" of accuracy. The vernier scale provides precise, fine measurement. This depth gauge has a hardened, precision base that is 2.5" long, and is used as a reference for measurements. It has a friction thimble for uniform measurements. It includes six, 0.125" rods. The gauge conforms to the Deutsches Institut für Normung (DIN) 863 T2 (style T) and Norme Française (NF) E 11-097 standards. It has a satin-chrome finish for glare-free reading. The shipping weight for this gauge is 2.15 lb. and it comes in a fitted wooden case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, is headquartered in North Kingstown, RI.

What's in the Box?

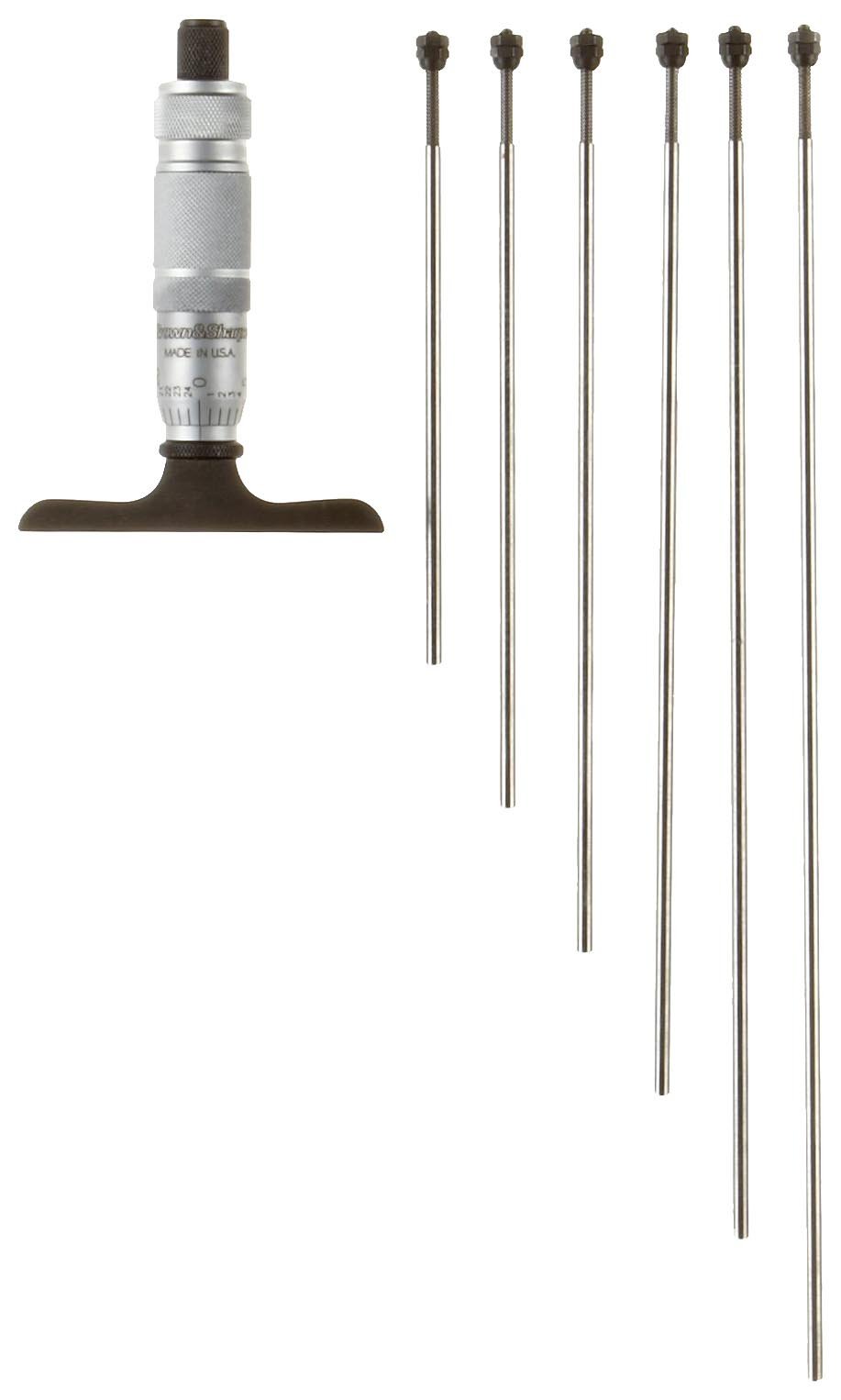

  • Brown & Sharpe 599-603-126-3 depth gauge
  • (6) Measuring rods (0.125" diameter)

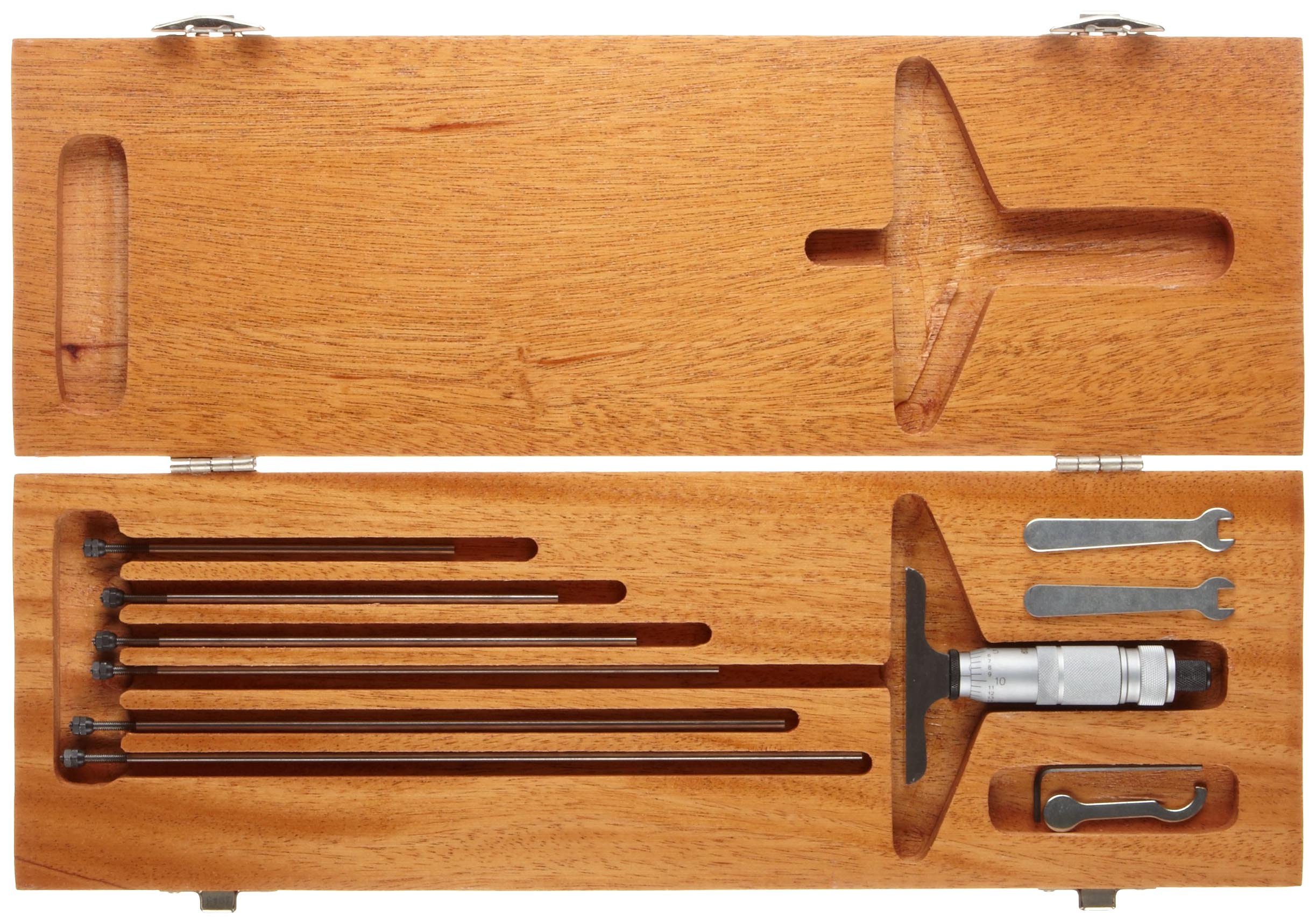

  • Wooden case
