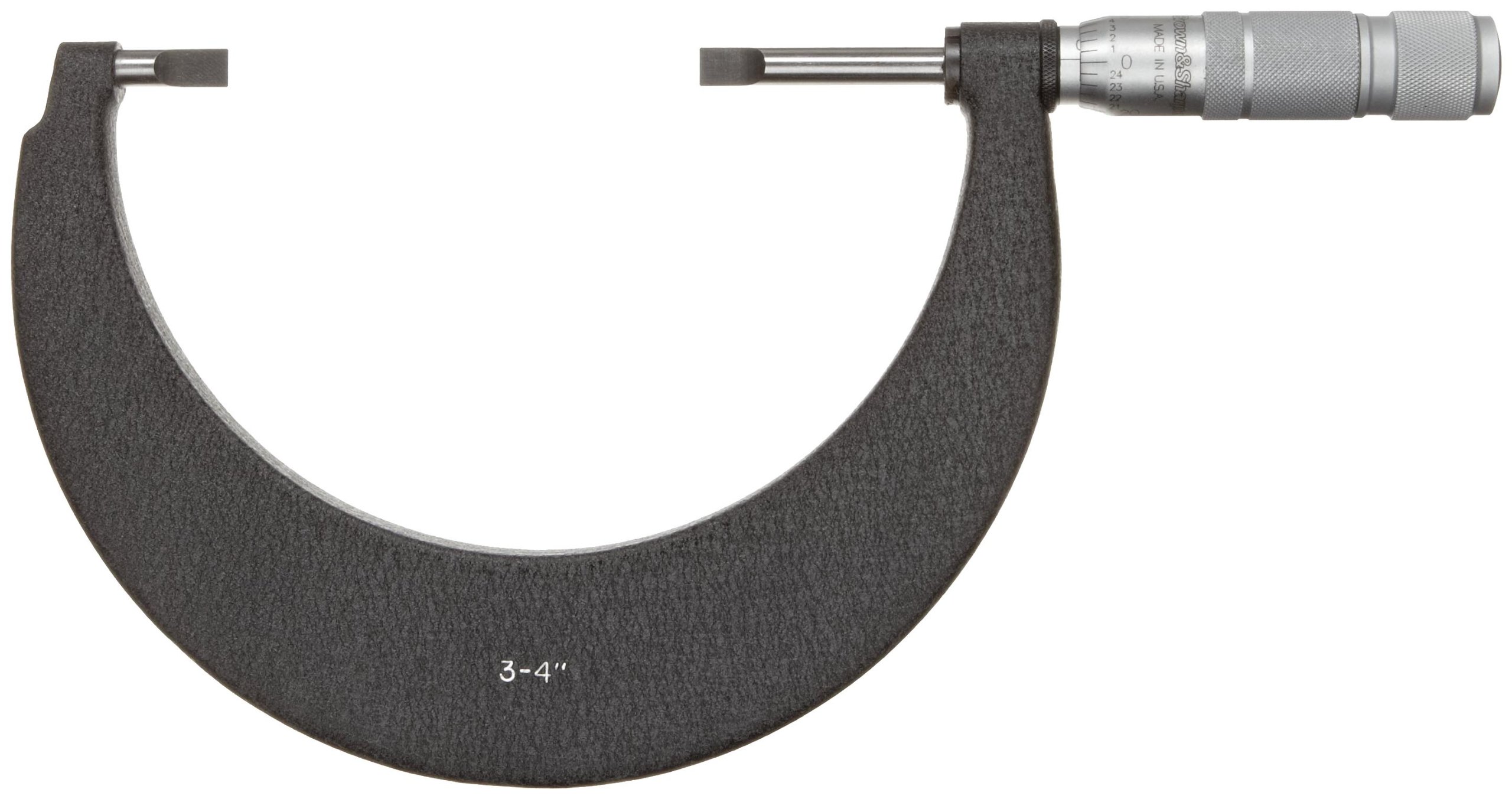

Brown & Sharpe 599-222-2 Outside Blade Micrometer, 3-4" Range, 0.001" Graduation, +/-0.005mm Accuracy

Be the first to review this item

ASIN B0006J3GBU

Product Specifications
Part Number
599-222-2
Style Name
Vernier
Maximum Measurement
3-4"
Gradient Spacing
0.001  inches
UPC
622419256177
EAN
0622419256177
Measurement Accuracy
+/-0.005mm
Number of Items
1
Range
3-4"
Resolution
0.001"
Size Name
3-4"
Specification for this product family (See all  products)
Manufacturer Series Number
Outside Blade Micrometer
Material Type
Steel
UNSPSC Code
41111601
Brand Name
Brown & Sharpe
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 17 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Blade anvil and spindle for measurement of groove diameter of shafts and keyways
  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Non-rotating spindle helps provide steady positioning during measurement
  • Black enamel finish for protection and durability of frame
  • High-grade tool steel construction for durability

Package Details

Shipping Weight: 0.85 pounds
Package Size: 10.3 x 5.5 x 1.1 inches

Product Description

The Brown & Sharpe outside blade micrometer has a vernier scale in inch units for taking precise outside diameter (OD) measurements, and a blade anvil and spindle for measurement of groove diameter of shafts and keyways. The spindle does not rotate during adjustment, to help provide steady positioning for measurement.

The micrometer’s high-grade tool steel frame has a black enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.001”, and has a satin chrome rust- and glare-resistant finish. The spindle and anvils are made of hardened steel for durability, and are lapped to help provide accuracy. A ring lock helps provide secure locking of the measurement position. The unit comes with a fitted wooden case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, played a key role in setting industrial standards in the United States. Brown & Sharpe was acquired by Hexagon Metrology in 2001, and is headquartered in North Kingstown, RI.
