Brown & Sharpe 599-181-901-1 Chrome Frame Outside Micrometer Set, 0-3" Range, 0.0001" Graduation

Be the first to review this item

ASIN B0006J3EJO

Specifications for this item
Number of Items
1
Range
0-3"
Material Type
Carbide Tipped
Part Number
599-181-901-1
Resolution
0.001"
UPC
622419437842
Brand Name
Brown & Sharpe
EAN
0622419437842
Manufacturer Series Number
Chrome Frame Outside Micrometer Set
Maximum Measurement
0-3"
Stem Outside Diameter
6.5  millimeters
UNSPSC Code
41111601
Style Name
Vernier
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 7 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Set includes three vernier scale micrometers with flat anvil/spindle pairs for taking outside diameter (OD) measurements from 0" to 3"
  • 0.0001" graduations on the thimble and sleeve for precise readings
  • Tungsten carbide-tipped measuring faces resist wear, and friction-drive thimbles provides uniform pressure for precise measurements
  • Spindle lock holds measurements in place

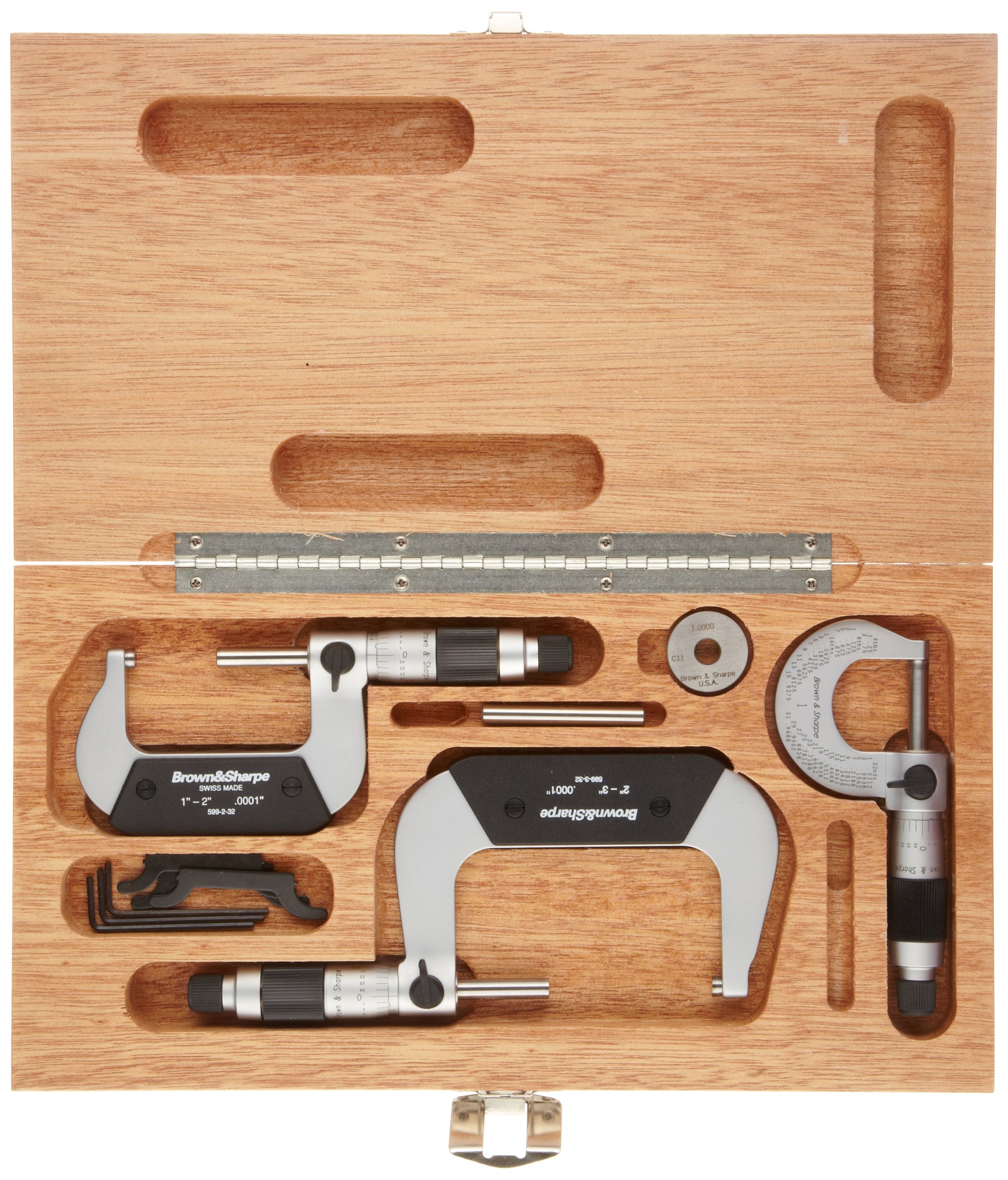

  • Comes with a 1" round reference disk, a 3" long setting rod, and a fitted wooden storage case

Package Details

Shipping Weight: 4.2 pounds
Package Size: 13.5 x 7.3 x 2.3 inches

Product Description

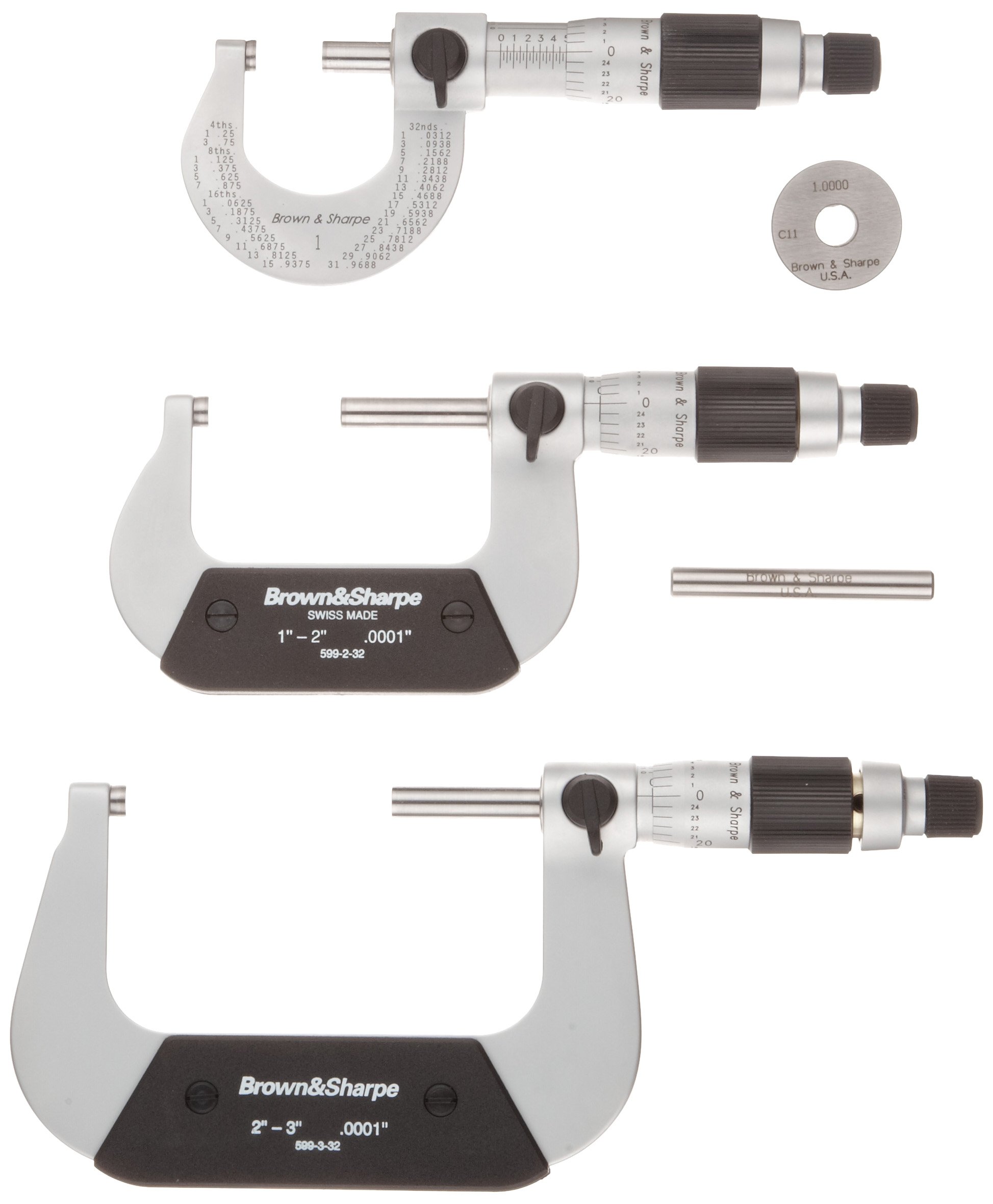

The Brown & Sharpe 599-181-901-1 Chrome Frame Outside Micrometer Set includes three vernier scale micrometers with flat anvil/spindle pairs for taking outside diameter (OD) measurements from 0" to 3". The set comes with micrometers in the following sizes: 0" to 1", 1" to 2", and 2" to 3". The vernier scale on each thimble and sleeve is graduated to 0.0001" with an accuracy of 0.004mm for precise readings. The micrometers have tungsten carbide-tipped measuring faces that resist wear and convertible friction-drive thimble mechanisms for uniform or variable pressure during adjustment. The frame, thimble, and sleeve of each micrometer have a satin chrome rust- and glare-resistant finish. The 1" to 2" and 2" to 3" micrometers have heat-insulated frames to help reduce temperature-related expansion or contraction. A spindle lock helps provide secure locking of the measurement position. The micrometers meet DIN (Deutsches Institut für Normung) 863 T1 NF E 11-095, and come with an inspection report with a declaration of conformity. The set comes with a 1" round reference disk, a 3" long setting rod, and a fitted wooden storage case.

Specifications
Display typeVernier
Anvil/spindle styleFlat
Measuring range0" to 1"; 1" to 2"; 2" to 3"
Graduations0.0001"
Accuracy0.004mm
Thimble styleFriction
Spindle diameter0.25"

Micrometers are precision measuring instruments that use a calibrated screw to measure distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Brown & Sharpe manufactures precision measuring equipment and metrology hand tools. The company, founded in 1833, is headquartered in North Kingstown, RI.

What's in the Box?

  • Brown & Sharpe 599-1-32 0" to 1" outside micrometer
  • Brown & Sharpe 599-2-32 1" to 2" outside micrometer
  • Brown & Sharpe 599-3-32 2" to 3" outside micrometer
  • 1" round reference disk
  • 3" long setting rod
  • Inspection report and declaration of conformity
  • Wooden storage case
