Brewer XM X-Series Floating Mount Tensioner, 2" Width, 3" Bolt Hole Spacing Width, 15-3/4" Housing Length

Be the first to review this item

ASIN B0051PQE4A

Specifications for this item
Base Width
2  inches
Number of Items
1
Part Number
XM
Brand Name
Brewer Machine & Gear Co.
Size Name
3 inch bolt hole spacing width
UNSPSC Code
27112124

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 14 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Floating tensioner for use with Brewer shaft models SO-2, SO-3, or SO-4 (not included)
  • Cast iron mounts and steel shaft for strength and durability
  • Sliding screw adjustments on both hubs for reliable tensioning in forward and reverse directions
  • Overall length of 15-3/4" for a wide adjustment range
  • Bolt holes spaced 3" apart for secure mounting

Package Details

Shipping Weight: 6.9 pounds
Package Size: 16.4 x 5.5 x 4.4 inches

Product Description

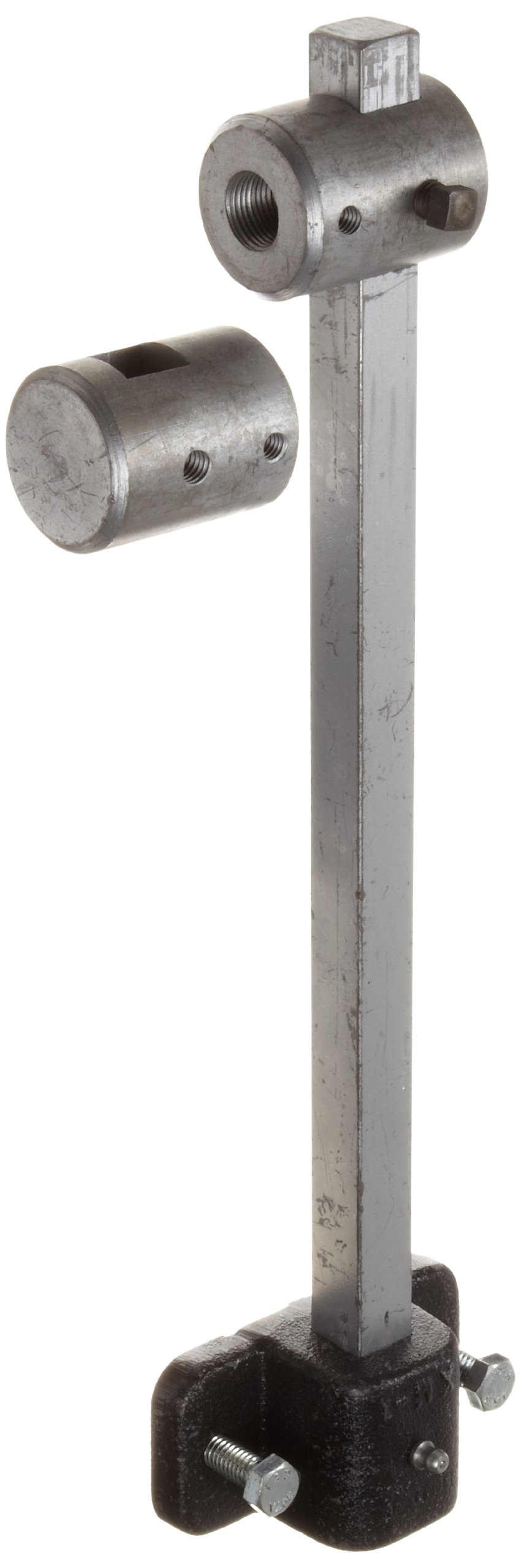

This Brewer XM floating tensioner is constructed of cast iron and steel for strength and durability and is suitable for use with Brewer shaft models SO-2, SO-3, or SO-4 (not included). Its two cast iron sprocket mounts slide vertically on the steel shaft and can be locked in place with screws for reliable tensioning of the drive system in both forward and reverse directions. It has an overall length of 15-3/4" for a wide adjustment range on the shaft, and its mount has bolt holes spaced 3" apart for secure mounting. This floating tensioner is suitable for maintaining tension in both forward and reverse directions for power transmission systems in automobile manufacturing, bottling, food processing, waste management, and other industries.

Belt and chain tensioners reduce belt or chain slack that occurs in power transmission drive systems through normal operation. Slack reduces drive efficiency and decreases the life of drive components. Belt and chain tensioners help to maintain the correct drive belt or chain tension in a system by reducing this slack and transmitting drive torque uniformly, resulting in reduced noise and vibration and decreased sprocket, pulley, belt, or chain wear. They also reduce the risk of over-tensioning that exists with manual retensioning operations. Tensioners are available in three categories: fixed, adjustable, and automatic. Fixed tensioners must be remounted in order to alter the tension of a drive system. Manual tensioners require operators to adjust screws or reposition parts as belt or chain slack increases. Automatic tensioners apply tension as needed through the use of weight, springs, elastomers, or compressed air. Factors to consider in selecting a proper tensioner include drive power, speed, torque, load, operating cycles, and available mounting space. Belt and chain tensioners are used in industrial machinery, conveyor belts, automobiles, and other applications.

Brewer Machine & Gear manufactures tensioners, positioners, and idlers for the power transmission industry. The company, founded in 1944, is headquartered in St. Louis, MO.
