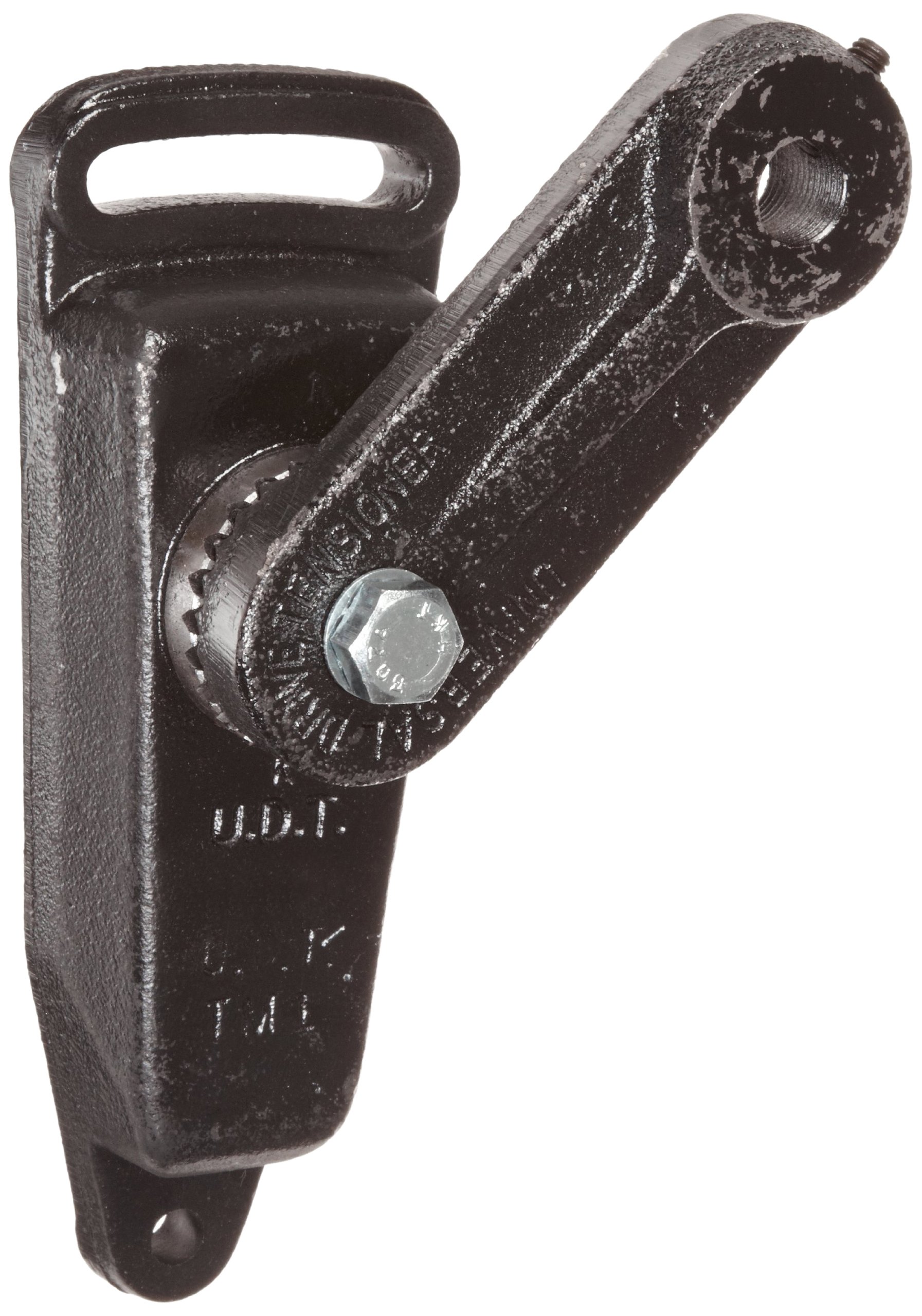

Brewer TM44 T-Series Spring-Loaded Automatic Tensioner, 44 lbs Spring, 2-1/2" Width, 7-1/2" Bolt Hole Spacing Width, 4" Arm Length, 8-11/16" Housing Length

Be the first to review this item

ASIN B0051PQD7S

Specifications for this item
Base Width
2.5  inches
Number of Items
1
Part Number
TM44
Brand Name
Brewer Machine & Gear Co.
Size Name
7-1/2 inch bolt hole spacing width
UNSPSC Code
27112124

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 16 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Spring-loaded automatic tensioner for use with Brewer shaft models SO-2, SO-3, or SO-4 (not included)
  • Painted semi-steel construction for strength and durability
  • 360-degree rotating arm for a maximum reach of 4" and a 44 lb. load capacity
  • Serrated teeth on tensioner base and arm for prevention of slippage
  • Tensioner base is 8-11/16 x 3-1/8 inches (L x W) with 7-1/2" bolt hole spacing for secure mounting

Package Details

Shipping Weight: 6.55 pounds
Package Size: 10.1 x 5.4 x 4.2 inches

Product Description

This Brewer TM44 spring-loaded automatic tensioner has a painted semi-steel base for strength and durability and is suitable for use with Brewer shaft models SO-2, SO-3, or SO-4 (not included). It has a 360-degree rotating arm for a maximum reach of 4". Serrated teeth on the tensioner base and arm prevent slippage. When the rotating arm is locked in place, it can pivot 45 degrees from its position in either direction. Its internal spring mechanism adjusts drive tension automatically and supports loads up to 44 lb. The tensioner base measures 8-11/16 x 3-1/8 inches (L x W) and has bolt holes spaced 7-1/2" apart for secure mounting. (L is length, the vertical distance from bottom to top; W is width, the horizontal distance from left to right.) This spring-loaded automatic tensioner is suitable for maintaining tension in power transmission systems in automobile manufacturing, bottling, food processing, waste management, and other industries.

Belt and chain tensioners reduce belt or chain slack that occurs in power transmission drive systems through normal operation. Slack reduces drive efficiency and decreases the life of drive components. Belt and chain tensioners help to maintain the correct drive belt or chain tension in a system by reducing this slack and transmitting drive torque uniformly, resulting in reduced noise and vibration and decreased sprocket, pulley, belt, or chain wear. They also reduce the risk of over-tensioning that exists with manual retensioning operations. Tensioners are available in three categories: fixed, adjustable, and automatic. Fixed tensioners must be remounted in order to alter the tension of a drive system. Manual tensioners require operators to adjust screws or reposition parts as belt or chain slack increases. Automatic tensioners apply tension as needed through the use of weight, springs, elastomers, or compressed air. Factors to consider in selecting a proper tensioner include drive power, speed, torque, load, operating cycles, and available mounting space. Belt and chain tensioners are used in industrial machinery, conveyor belts, automobiles, and other applications.

Brewer Machine & Gear manufactures tensioners, positioners, and idlers for the power transmission industry. The company, founded in 1944, is headquartered in St. Louis, MO.
