Brewer A-Series Shaft Mounted Tensioner

Be the first to review this item

Product Specifications
Shaft Diameter
N/A  inches
Shaft Length
N/A  inches
Bolt Hole Spacing Width
0  inches
UNSPSC Code
27112124
Length of Threads
N/A  inches
Brand Name
Brewer Machine & Gear Co.

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 4 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Bore Diameter Base Width ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-4 of 4
1-1/2" 2.4375" B0051PPVDU yes $15.84 Buy Options
1/2" 0.8125" B0051PPY6E yes $14.95 Buy Options
1" 1.625" B0051PPX6U yes $29.31 Buy Options
1" 1.625" B0051PPWH0 yes $29.42 Buy Options

Key Features

  • Adjustable take-up idler for restoring an elongated chain or belt to its original tension
  • Shaft mounting for attachment to a shaft or stud
  • Split base and locking screw for easy movement and tight clamping on shaft
  • 360-degree shaft rotation for controlled tensioning
  • Suitable for pairing to make a snubber for head and tail pulleys

Product Description

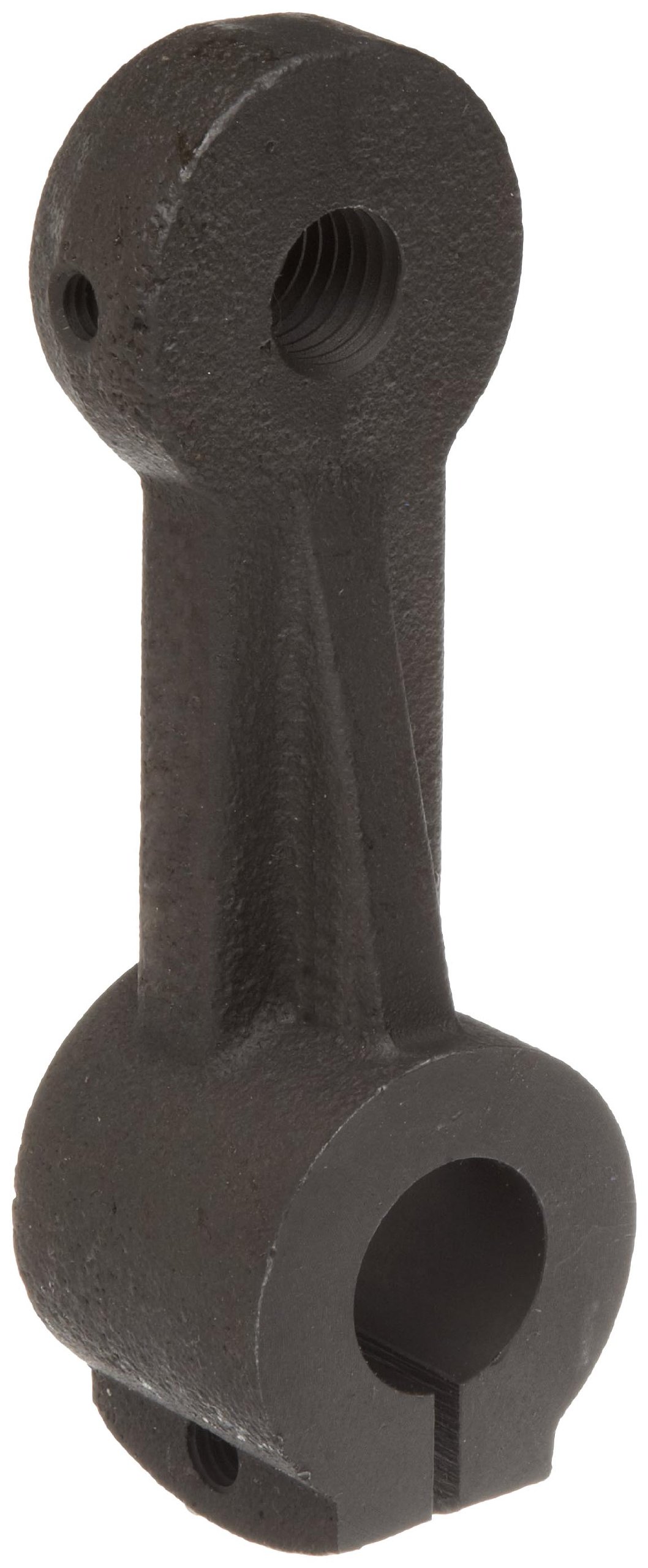

This Brewer A-Series universal drive tensioner is an adjustable take-up idler for restoring an elongated chain or belt to its original tension. (Idler shaft and set collar not included.) It mounts to a shaft or stud for applications without a frame member present. It has a split base and a locking screw for easy movement and tight clamping on the shaft, and it can be rotated for 360-degree controlled tensioning. It also works in pairs to make a snubber for head and tail pulleys. This tensioner is suitable for use with the Brewer SO-Series of matching idler shafts. Contact manufacturer for product interchange.

Belt and chain tensioners reduce belt or chain slack that occurs in power transmission drive systems through normal operation. Slack reduces drive efficiency and decreases the life of drive components. Belt and chain tensioners help to maintain the correct drive belt or chain tension in a system by reducing this slack and transmitting drive torque uniformly, resulting in reduced noise and vibration and decreased sprocket, pulley, belt, or chain wear. They also reduce the risk of over-tensioning that exists with manual retensioning operations. Tensioners are available in three categories: fixed, adjustable, and automatic. Fixed tensioners must be remounted in order to alter the tension of a drive system. Manual tensioners require operators to adjust screws or reposition parts as belt or chain slack increases. Automatic tensioners apply tension as needed through the use of weight, springs, elastomers, or compressed air. Factors to consider in selecting a proper tensioner include drive power, speed, torque, load, operating cycles, and available mounting space. Belt and chain tensioners are used in industrial machinery, conveyor belts, automobiles, and other applications.

Brewer Machine & Gear manufactures tensioners, positioners, and idlers for the power transmission industry.  The company, founded in 1944, is headquartered in St. Louis, MO.
