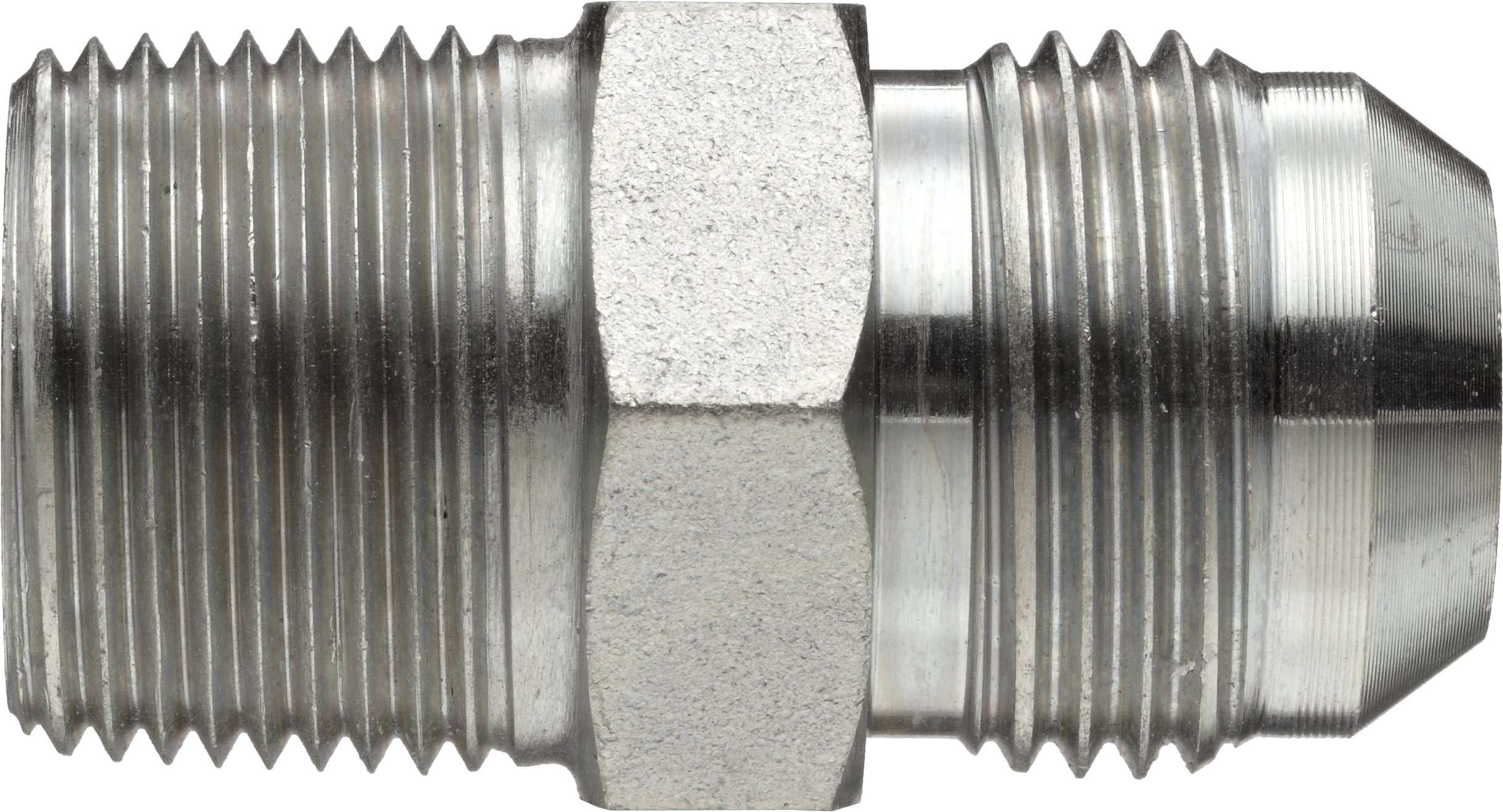

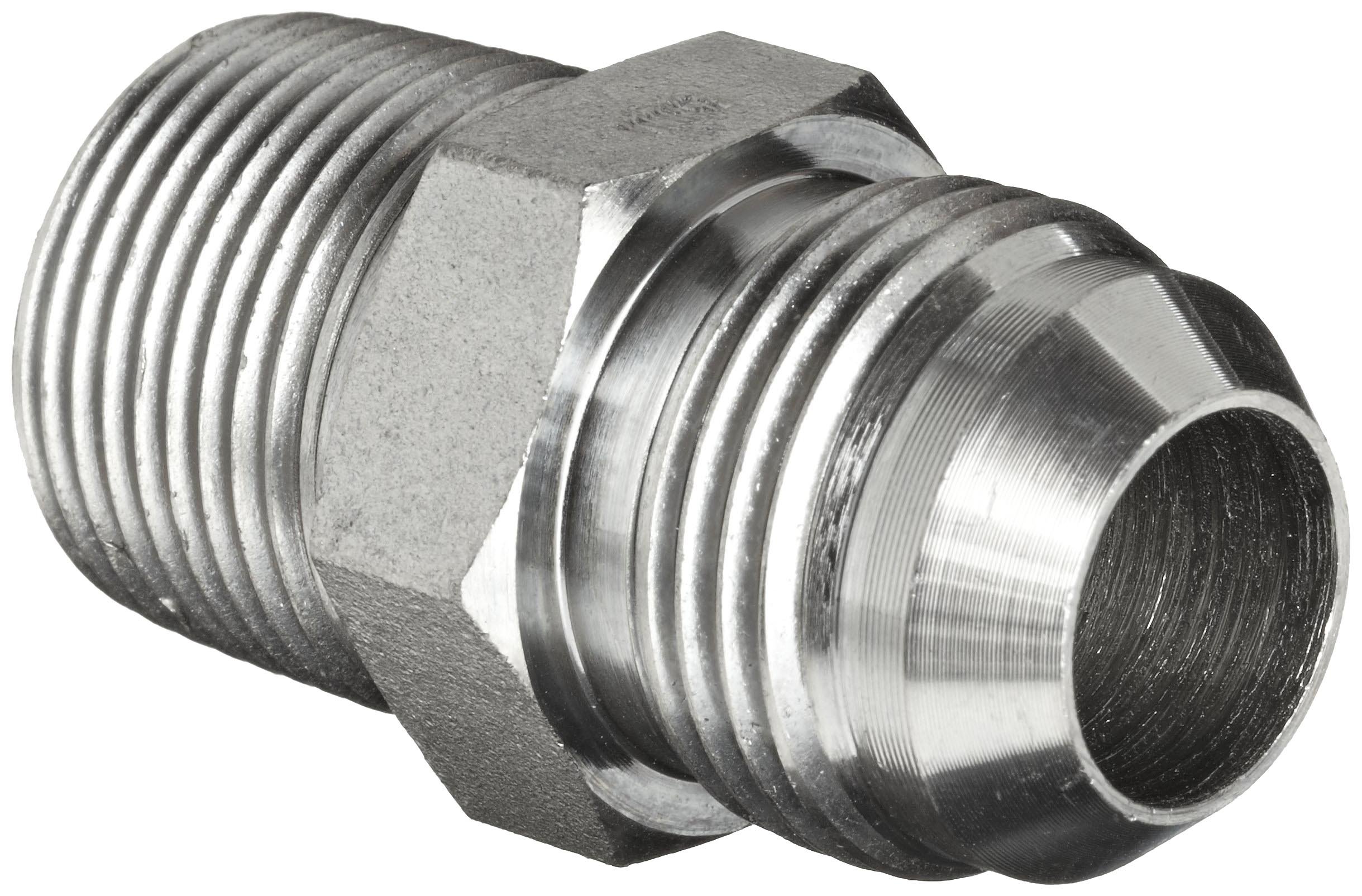

Brennan 2404 Series, Steel JIC Tube Fitting, MJ-MP Adapter, Tube OD x NPTF Male

Be the first to review this item

Product Specifications
Number of Items
1
Item Shape
Adapter
Material Type
Steel
Brand Name
Brennan
Manufacturer Series Number
2404 Series
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
SAE J514
Style Name
Flared
UNSPSC Code
40183100
Maximum Working Pressure
5000  PSI
System of Measurement
Inch
LowerTemperature Range
-63  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 10 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-13 of 13
1" x 1-1/4-11-1/2 B004E10ZUQ yes $3.40 Buy Options
1" x 1-11-1/2 B004I43AHO yes $3.77 Buy Options
1-1/2" x 1-1/2-11-1/2 B004E1108C yes $4.00 Buy Options
1-1/2" x 2-11-1/2 B004E110WS yes $44.68 Buy Options
1-1/4" x 1-1/4-11-1/2 B004E10ZJW yes $7.49 Buy Options
1/2" x 1/2-14 B004I439DY yes $1.79 Buy Options
1/4" x 1/4-18 B004I43948 yes $0.95 Buy Options
1/4" x 1/8-27 B004I4392A yes $0.80 Buy Options
1/4" x 3/8-18 B004I439ES yes $1.19 Buy Options
3/4" x 1-11-1/2 B004I43AWO yes $5.13 Buy Options
3/8" x 1/2-14 B004I439FW yes $1.59 Buy Options
3/8" x 3/8-18 B004I43998 yes $1.19 Buy Options
5/8" x 3/4-14 B004I43A1K yes $2.69 Buy Options

Key Features

  • Adapter for connecting pipes or fittings of different types
  • Fitting has a JIC flared male connector on one end and an NPTF male connector on the other
  • Made of steel for greater rust resistance than iron
  • Working pressure of up to 5000 psi
  • Operating temperature ranges from -63 to 400 F

Product Description

The Brennan 2404 series MJ-MP adapter fitting is made of steel and has JIC male and NPTF male connectors. This adapter fitting connects pipes or fittings with different end types, diameters, or materials. It has a Joint Industrial Council (JIC) flared male connector on one end and a National Pipe Taper Fuel (NPTF) male connector on the other. The fitting is made of steel for its better weldability and increased rust resistance over iron. The working pressure for this fitting is up to 5000 pounds per square inch (psi), and its operating temperature ranges from -63 to 400 degrees F. This tube fitting meets Society of Automotive Engineers (SAE) standard J514 for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Brennan Industries manufactures critical flow components. The company, founded in 1953 and headquartered in Solon, OH, meets International Organization for Standardization (ISO) 9001:2008 standards and its fittings meet Society of Automotive Engineers (SAE) specifications.
