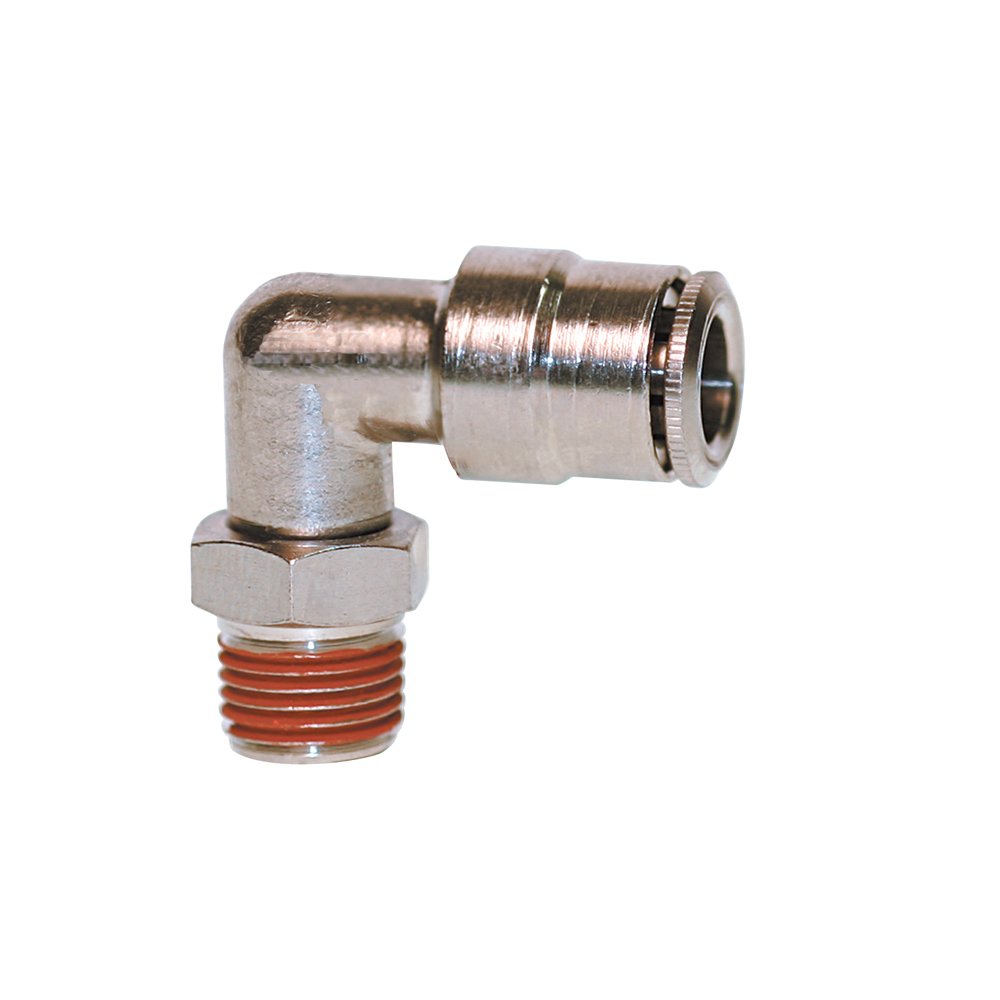

Brennan PCNB2501 Series, Nickel-Plated Brass Push-to-Connect Tube Fitting, 90 Degree Elbow, Tube OD x NPT Male

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
90 Degree Elbow
Material Type
Brass
Brand Name
Brennan
Manufacturer Series Number
PCNB2501 Series
Upper Temperature Range
175  Degrees Fahrenheit
Specification Met
ISO 14743
Style Name
Push-to-Connect
UNSPSC Code
40183100
Maximum Working Pressure
290  PSI
System of Measurement
Inch
LowerTemperature Range
-4  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 17 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Tube Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-8 of 8
1/4" x 1/4" NPT Male B004I43AV0 3 $4.46 Buy Options
3/8" x 1/8" NPT Male B004E10ZHE 1 $7.89 Buy Options
3/8" x 1/4" NPT Male B004E10ZHY 8 $6.08 Buy Options
3/8" x 3/8" NPT Male B004E10ZIS 3 $7.66 Buy Options
3/8" x 1/2" NPT Male B004E10ZSS 2 $9.49 Buy Options
1/2" x 1/4" NPT Male B004E10ZU6 1 $9.20 Buy Options
1/2" x 3/8" NPT Male B004E10ZVK 2 $9.85 Buy Options
1/2" x 1/2" NPT Male B004E1100A 1 $9.32 Buy Options

Key Features

  • 90-degree elbow for connecting two pipes or fittings at an angle
  • Push-to-connect fitting connects to pipes or tubing on one end and has an NPT male connector on the other
  • Made of nickel-plated brass for durability and corrosion resistance
  • Working pressure of up to 290 psi
  • Operating temperature ranges from -4 to 175 degrees F

Product Description

The Brennan PCNB2501 series 90-degree elbow fitting is made of nickel-plated brass and has tube and NPT male connectors. This 90-degree elbow fitting, or "ell," connects two pipes at a 90-degree angle to change the direction of flow between pipes. It is a push-to-connect fitting that connects to pipes or tubing on one end and has a National Pipe Taper (NPT) male connector on the other. The fitting is made of nickel-plated brass for durability and corrosion resistance. The working pressure for this fitting is up to 290 pounds per square inch (psi), and its operating temperature ranges from -4 to 175 degrees F.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Brennan Industries manufactures critical flow components. The company, founded in 1953 and headquartered in Solon, OH, meets International Organization for Standardization (ISO) 9001:2008 standards and its fittings meet Society of Automotive Engineers (SAE) specifications.
