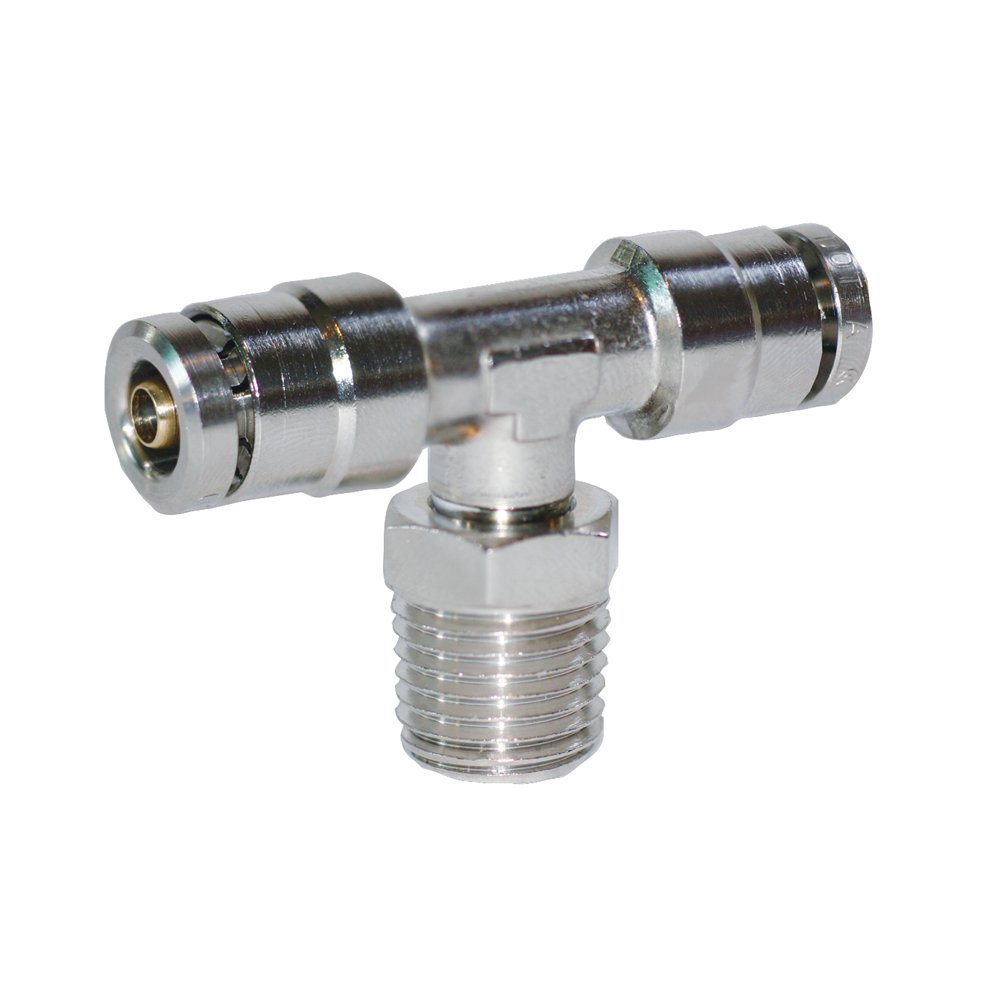

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Brennan PCDT2601-B Series, Nickel-Plated Brass Push-to-Connect Tube Fitting, Branch Tee, Tube OD x NPT Male x Tube OD

Be the first to review this item

Product Specifications
Number of Items
1
Item Shape
Tee
Material Type
Brass
Brand Name
Brennan
Manufacturer Series Number
PCDT2601-B Series
Upper Temperature Range
175  Degrees Fahrenheit
Specification Met
ISO 14743
Style Name
Push-to-Connect
UNSPSC Code
40183100
Maximum Working Pressure
290  PSI
System of Measurement
Inch
LowerTemperature Range
-4  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 7 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-9 of 9
1/2" x 1/2" NPT Male x 1/2" B004E110DM yes $4.51 Buy Options
1/2" x 1/4" NPT Male x 1/2" B004E110DC yes $12.03 Buy Options
1/2" x 3/8" NPT Male x 1/2" B004E110D2 yes $11.97 Buy Options
1/4" x 1/4" NPT Male x 1/4" B004E10ZBU yes $2.76 Buy Options
1/4" x 1/8" NPT Male x 1/4" B004E10Z60 yes $2.71 Buy Options
1/4" x 3/8" NPT Male x 1/4" B004E1101E yes $3.64 Buy Options
3/8" x 1/2" NPT Male x 3/8" B004E11078 yes $11.08 Buy Options
3/8" x 1/4" NPT Male x 3/8" B004E1100K yes $3.57 Buy Options
3/8" x 3/8" NPT Male x 3/8" B004E1102I yes $8.38 Buy Options

Key Features

  • Branch tee with female connections on the two straight ends and a male connection on the branch
  • Push-to-connect fitting connects to pipes or tubing on two ends and has an NPT male connector on the other
  • Made of nickel-plated brass for durability and corrosion resistance
  • Working pressure of up to 290 psi
  • Operating temperature ranges from -4 to 175 degrees F

Product Description

The Brennan PCDT2601-B series branch tee fitting is made of nickel-plated brass and has tube and NPT male connectors. This branch tee fitting has three openings to connect and branch three pipes, two female connections on the main run and one male branch at an angle from the middle of the tee. Pipe dimensions for tees are represented as A x B x C. "A" and "B" indicate the main run on the fitting, and "C" indicates the branch. It is a push-to-connect fitting that connects to pipes or tubing on two ends and has a National Pipe Taper (NPT) male connector on the other. The fitting is made of nickel-plated brass for durability and corrosion resistance. The working pressure for this fitting is up to 290 pounds per square inch (psi), and its operating temperature ranges from -4 to 175 degrees F.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Brennan Industries manufactures critical flow components. The company, founded in 1953 and headquartered in Solon, OH, meets International Organization for Standardization (ISO) 9001:2008 standards and its fittings meet Society of Automotive Engineers (SAE) specifications.
