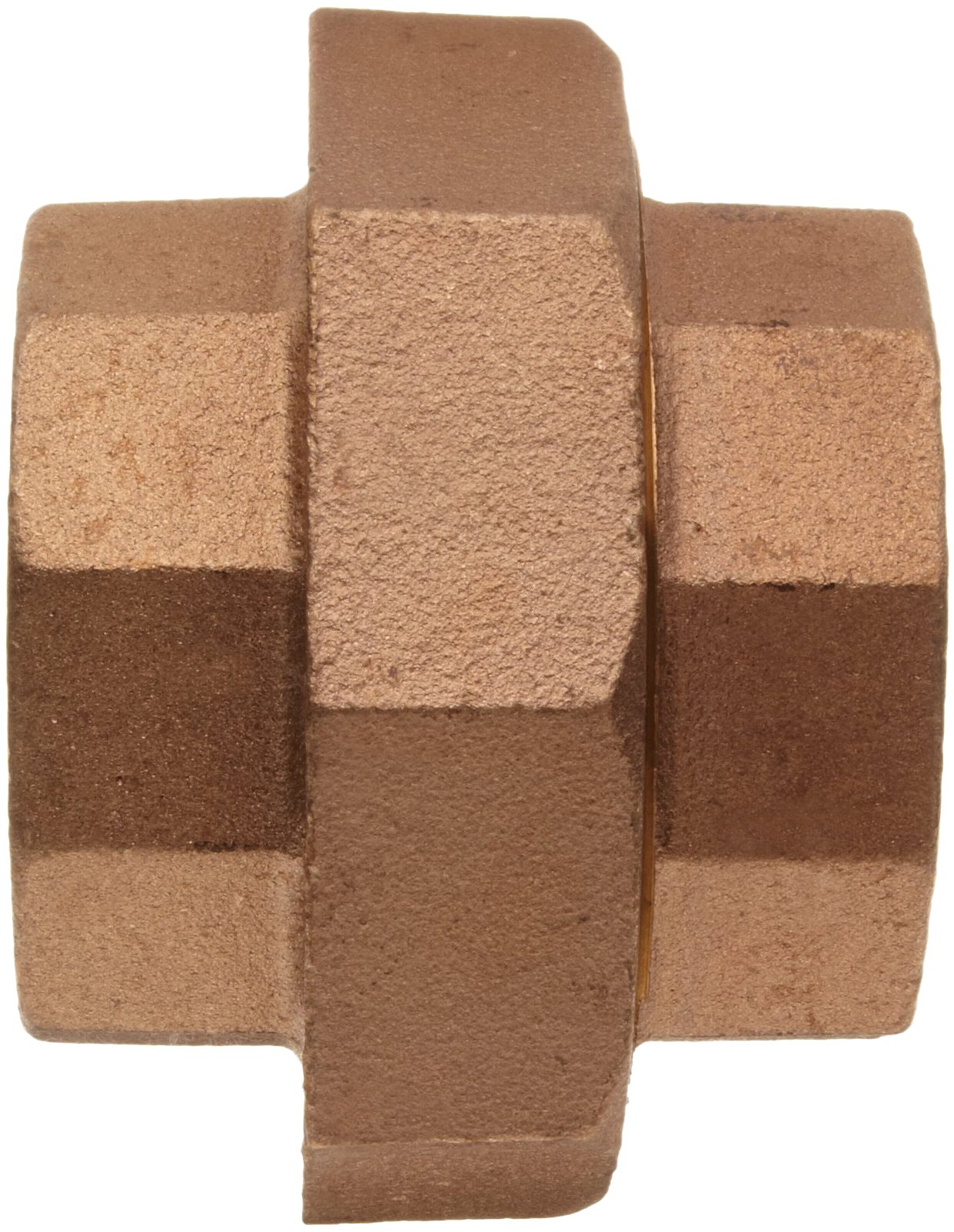

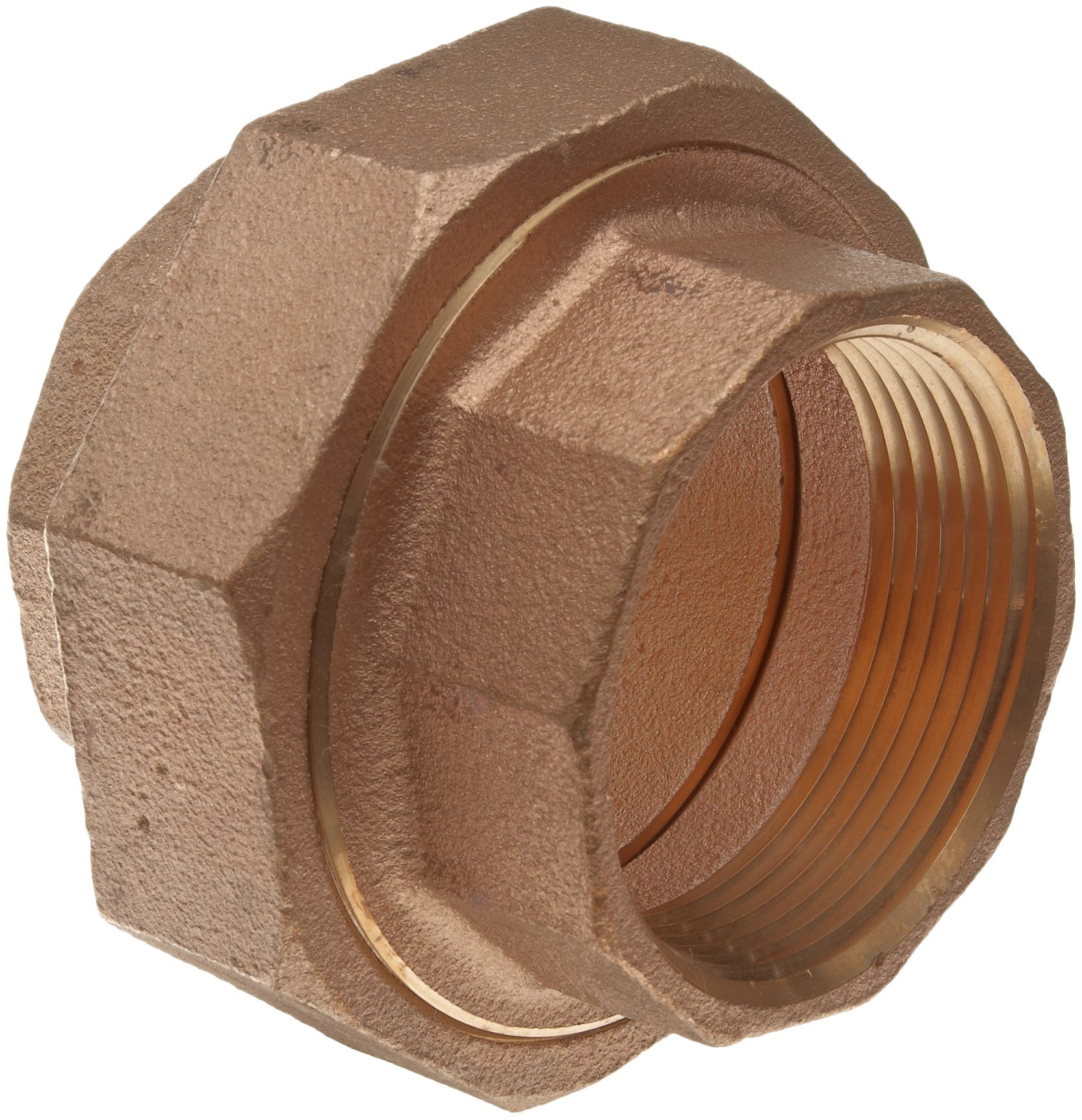

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lead Free Brass Pipe Fitting, Union, Class 125, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Union
Specification Met
ANSI/ASME B16.14, ANSI/ASME B16.15, ANSI/ASME B16.18, ANSI/ASME B1.20.1, ASTM B584, NSF-61
Material Type
Brass
Pressure Rating Class
125
Style Name
Threaded
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 20 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-13 of 13
1/8" 1-5/32" 1 B003OYJGLS 20 $8.00 Buy Options
1/4" 1-13/32" 1 B003OYJGMC 5 $12.35 Buy Options
3/8" 1-53/64" 1 B003OYJGMM 15 $11.58 Buy Options
1/2"   5 B00ICIX9YG Usually ships in 1 to 2 months $36.70 Buy Options
1/2" 1-23/32" 1 B003OYJGN6 39 $11.89 Buy Options
3/4" 2-5/64" 1 B003OYJGOU 14 $14.28 Buy Options
1"   5 B00ICITW60 1 $70.06 Buy Options
1" 2-3/8" 1 B003OYJGP4 61 $17.42 Buy Options
1-1/4" 2-3/8" 1 B003OYJGPY 7 $22.12 Buy Options
1-1/2" 2-1/2" 1 B003OYJGQI Usually ships in 1 to 2 months $29.51 Buy Options
2" 2-7/8" 1 B003OYJGQS 5 $45.60 Buy Options
2-1/2" 3-5/16" 1 B003OYJGRC 1 $75.02 Buy Options
3" 3-45/64" 1 B003OYJGRW 2 $116.06 Buy Options

Key Features

  • Union for connecting and extending two pipes
  • Female National Pipe Taper (NPT) threads on both ends for connecting two male threaded pipes
  • Made from lead-free brass for higher corrosion resistance than steel
  • Relative softness of metal enables tighter seals and greater ease in installation
  • Meets standard ASTM B-584-06 for lead-free quality assurance

Product Description

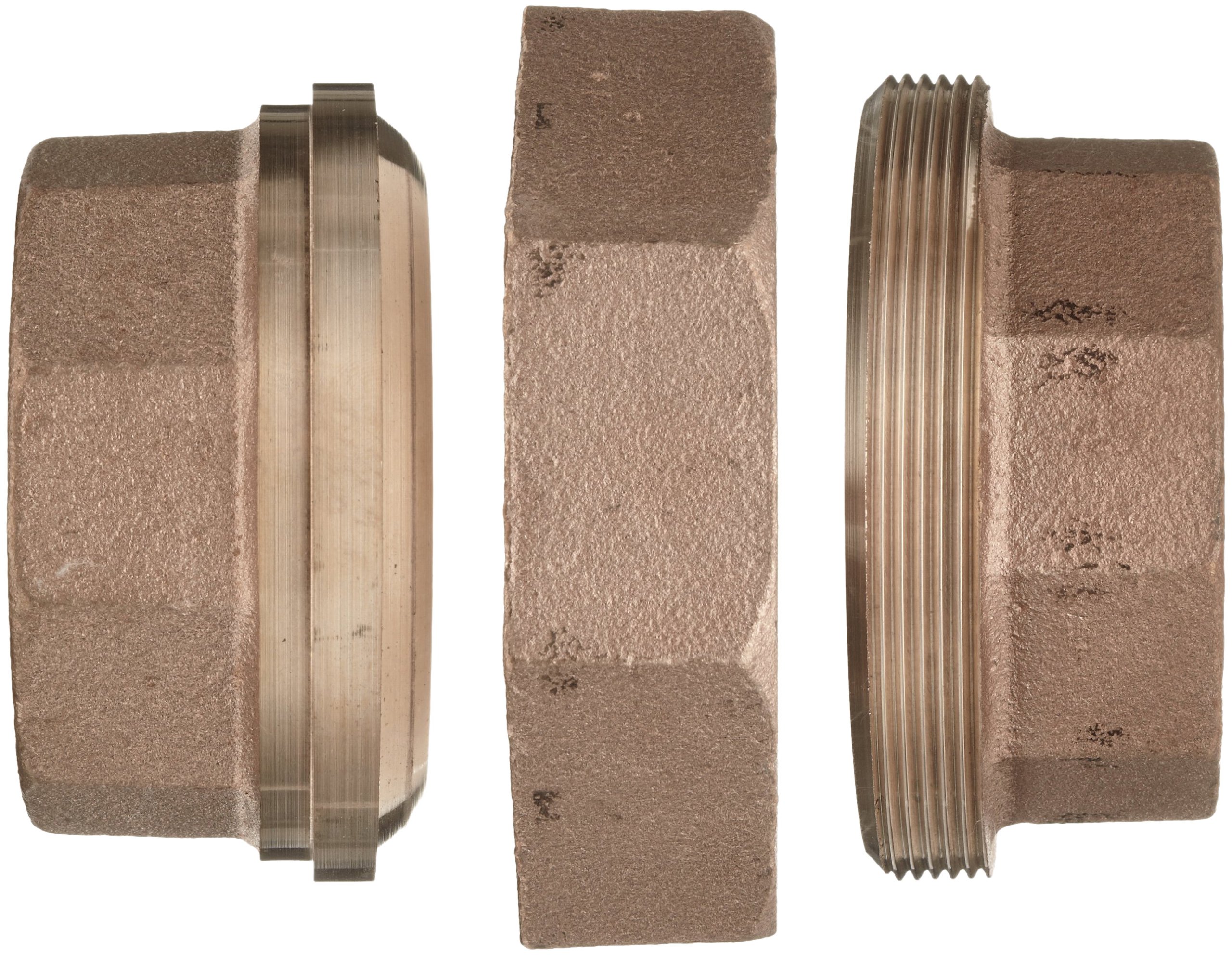

The Merit Brass union is a class 125 lead free brass pipe fitting for connecting and extending two male threaded pipes. The union has three pieces and includes a threaded connection that can be screwed or unscrewed to connect or disconnect pipes more easily than couplings. It has NPT threads on both ends for creating tighter seals than straight threads and is made of lead-free brass which is comparable in strength to stainless steel and more corrosion resistant. This class 125 fitting meets standards ASTM B-584-06 (C89833), ANSI B 1.20.1, and ANSI B 16.15 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. The company, family-owned since 1937 and headquartered in Cleveland, OH, distributes pipe fittings in the United States and Canada.
