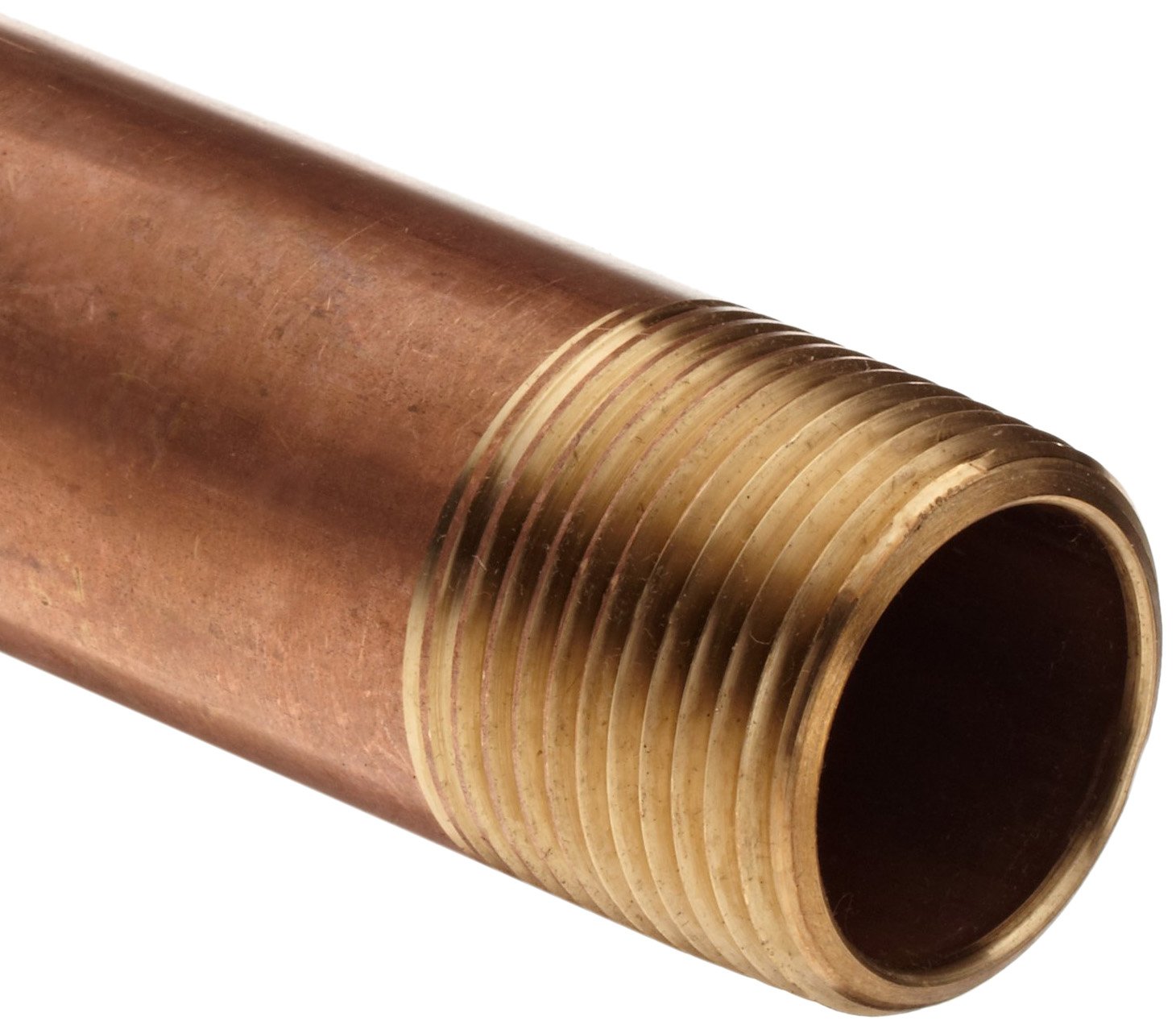

Red Brass Pipe Fitting, Nipple, Schedule 40 Seamless, NPT Male

Be the first to review this item

Product Specifications
Schedule
40
Specification Met
ASTM B-687-88
Item Shape
Nipple
Material Type
Brass
Pressure Rating Class
Not Rated
UNSPSC Code
40170000
Style Name
Threaded
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 263 Next 20 »
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 263 Next 20 »
1/8" 3 1/2" 25 B00N9T2QKQ Temporarily out of stock. Order now and we'll deliver when available. $42.48 Buy Options
1/8" 39/64" 25 B00N9TBI1O Temporarily out of stock. Order now and we'll deliver when available. $60.98 Buy Options
1/8" 3/4" 25 B00N9T97J4 Temporarily out of stock. Order now and we'll deliver when available. $60.98 Buy Options
1/8" 12" 25 B00N9T8WYA Temporarily out of stock. Order now and we'll deliver when available. $24.71 Buy Options
1/8" 3" 25 B00N9T642W Temporarily out of stock. Order now and we'll deliver when available. $109.75 Buy Options
1/8" 5" 25 B00N9T3XD0 Temporarily out of stock. Order now and we'll deliver when available. $34.40 Buy Options
1/8" 2" 25 B00N9T2E1C Temporarily out of stock. Order now and we'll deliver when available. $48.54 Buy Options
1/8" 1" 25 B00N9SVWBG yes $21.45 Buy Options
1/8" 3 1/2" 25 B00N9SWOMC Temporarily out of stock. Order now and we'll deliver when available. $29.09 Buy Options
1/8" 4-1/2" 1 B003PDNE5M yes $1.72 Buy Options
1/8" 5-1/2" 1 B003PDNE66 yes $2.01 Buy Options
1/8" 5" 1 B003PDNE5W yes $1.88 Buy Options
1/8" 4" 1 B003PDNE5C yes $1.52 Buy Options
1/8" 3/4" 1 B003PDNE2A yes $0.90 Buy Options
1/8" 6" 1 B003PDNE6G yes $2.15 Buy Options
1/8" 9-1/2" 1 B003PDNE8E yes $3.80 Buy Options
1/8" 9" 1 B003PDNE84 yes $3.48 Buy Options
1/8" 8-1/2" 1 B003PDNE7U yes $3.48 Buy Options
1/8" 8" 1 B003PDNE7K yes $2.83 Buy Options
1/8" 7-1/2" 1 B003PDNE7A yes $2.83 Buy Options

Key Features

  • Nipple for connecting and extending pipes
  • Male National Pipe Taper (NPT) threads for connecting female threaded pipes
  • Made from brass for higher corrosion resistance than steel
  • Made of Alloy 230 from seamless red brass pipe for greater ease in machining than yellow brass
  • Meets NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and higher

Product Description

The Merit Brass nipple is a seamless schedule 40 red brass pipe fitting with male National Pipe Taper (NPT) threads for connecting and extending female threaded pipes. The fitting has NPT threads for creating tighter seals than straight threads. Made of red brass, this schedule 40 seamless nipple is easier to clean than regular brass and more corrosion resistant than stainless steel. Seamless pipe is produced from a solid piece of metal that is heated and moved over a form until the steel is shaped into a hollow tube. It can withstand pressure better than ductile or welded pipes. The nipple meets standard NSF/ANSI 61 for use with drinking water supplies of pH 6.5 and higher and ASTM B-687 for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
