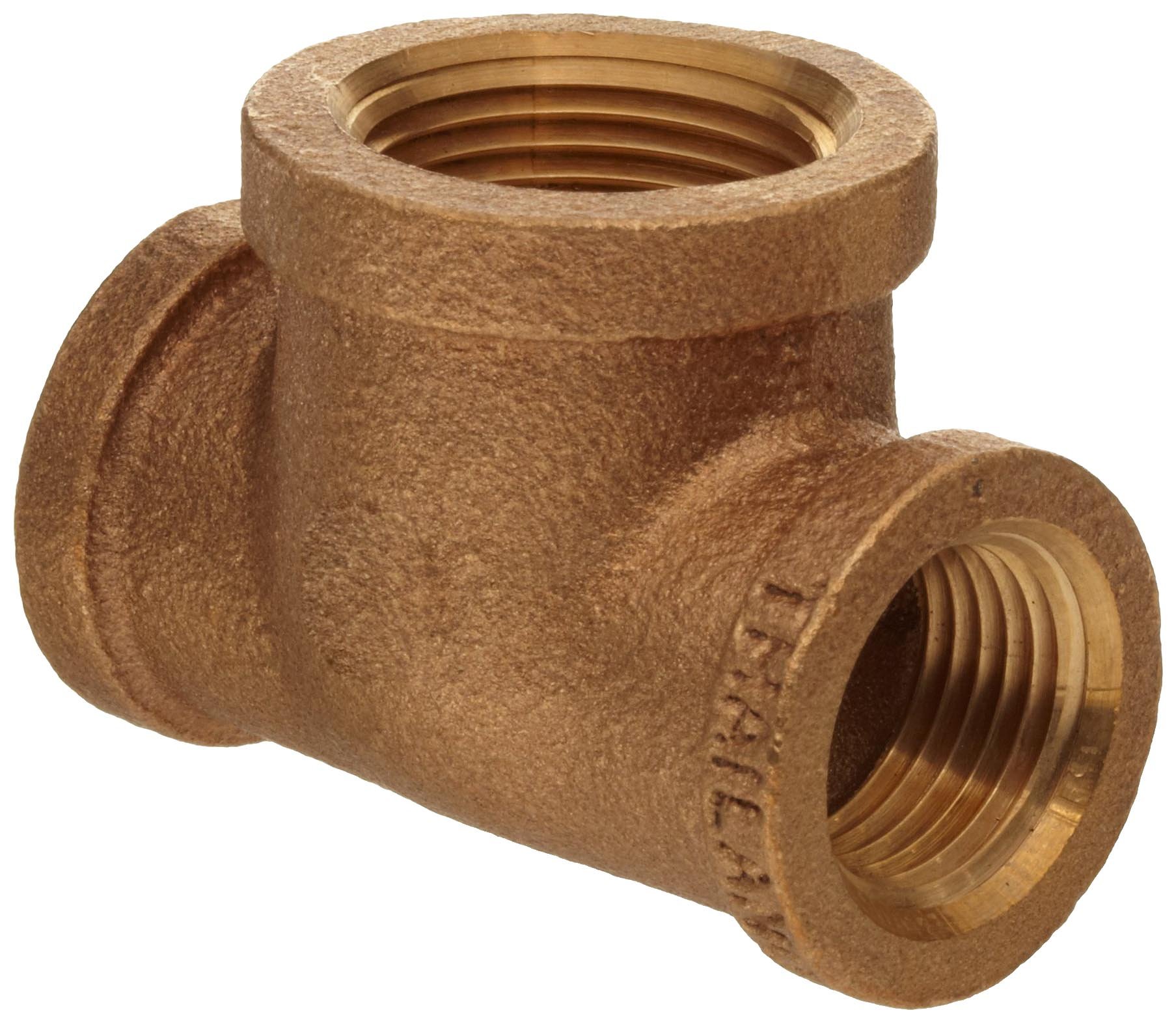

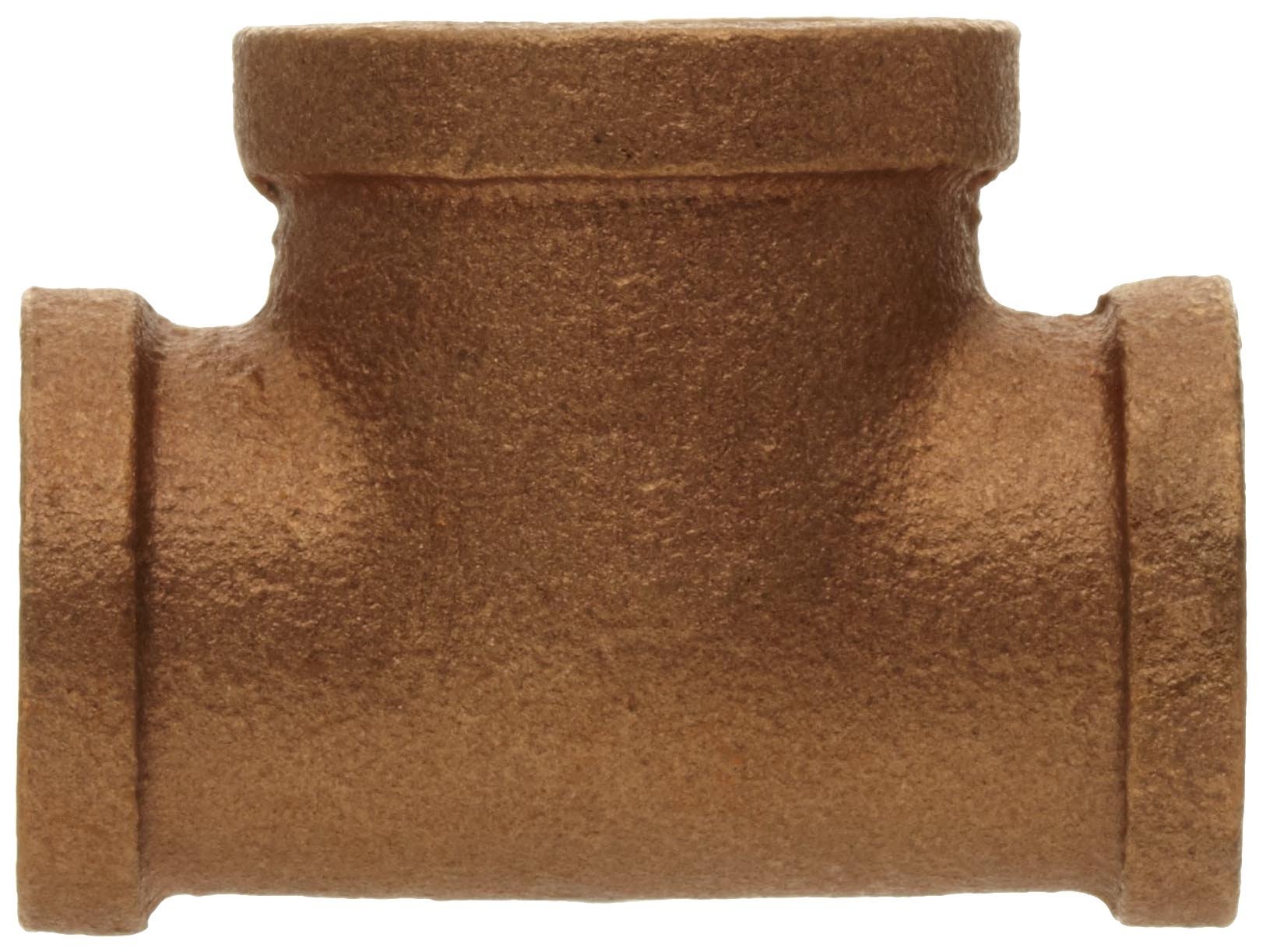

Brass Pipe Fitting, Class 125, Reducing Tee, NPT Female

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Tee
Material Type
Brass
Pressure Rating Class
125
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Small Parts
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 1 hr 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 40 Next 20 »
Pipe Size Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 40 Next 20 »
1/4" x 1/8" x 1/4" 1-5/16" B004ZLBSVK yes $5.00 Buy Options
3/8" x 1/4" x 3/8" 1-1/2" B004ZLBT5A yes $5.14 Buy Options
1/2" x 1/4" x 1/2" 1 1/8" B00N9TOU9Q Usually ships in 1 to 2 months $79.92 Buy Options
1/2" x 1/4" x 1/2" 1-13/16" B004XUKQMA yes $5.35 Buy Options
1/2" x 3/8" x 1/2"   B00N9TM962 Usually ships in 1 to 2 months $81.05 Buy Options
1/2" x 3/8" x 1/2" 1-7/8" B004ZLBU2C yes $5.48 Buy Options
1/2" x 3/4" x 1/2" 1 5/8" B00N9TNHL8 Usually ships in 1 to 2 months $125.43 Buy Options
1/2" x 3/4" x 1/2" 2-1/4" B004XUKQP2 yes $7.66 Buy Options
3/4" x 1/4" x 3/4"   B00N9TOJXI Usually ships in 1 to 2 months $115.33 Buy Options
3/4" x 3/8" x 3/4" 2" B004ZLBYW8 yes $10.48 Buy Options
3/4" x 1/2" x 1/2" 2-11/64" B004ZLBZS6 yes $8.62 Buy Options
3/4" x 1/2" x 3/4" 2-11/64" B004XUKQKW yes $7.79 Buy Options
3/4" x 3/4" x 1/2" 2-5/16" B004ZLBY6E Usually ships in 1 to 2 months $8.60 Buy Options
3/4" x 1" x 3/4" 2-39/64" B004ZLC7VA yes $16.11 Buy Options
1-1/4" x 1/2" x 1-1/4" 2-39/64" B004ZLCG66 yes $17.66 Buy Options
1-1/4" x 3/4" x 1-1/4" 2-13/16" B004ZLCGB6 yes $17.66 Buy Options
1-1/4" x 1" x 1-1/4" 3-19/32" B004ZLCGFW yes $22.46 Buy Options
1" x 3/8" x 1"   B004ZLC6RU yes $13.96 Buy Options
1" x 1/2" x 1/2"   B004ZLC83C yes $14.02 Buy Options
1-1/2" x 1/2" x 1-1/2" 2-43/64" B004ZLCIV4 yes $22.80 Buy Options

Key Features

  • Reducing T-shaped pipe fitting for connecting and branching different sized pipes
  • Female National Pipe Taper (NPT) threads on the run and branches
  • Made from brass for machinability and higher corrosion resistance than steel
  • NPT thread for compatibility with a range of threads
  • More economical than steel

Product Description

This class 125 reducing tee is a brass t-shaped pipe fitting with female National Pipe Taper (NPT) threads on the run and branches for connecting and branching three pieces of male pipe or fittings. Pipe dimensions for tees are represented as A x B x C. “A” and “B” indicate the main run on the fitting, and “C” indicates the branch. This fitting has female NPT threads on all three ends for creating tighter seals to male pipes than straight threads. The class 125 reducing tee is made from brass, which is more economical, machinable, and offers greater corrosion resistance than steel. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This fitting meets standards ANSI/ASME B16.15, ASME B1.20.1, ASTM B584, and ALLOY C83600 for quality assurance.

Pipe dimensions for tees are represented as A x B x C. On a reducing tee, “A” is the pipe end on the left, “B” is at the top or middle end, and “C” is at the end on the right.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
