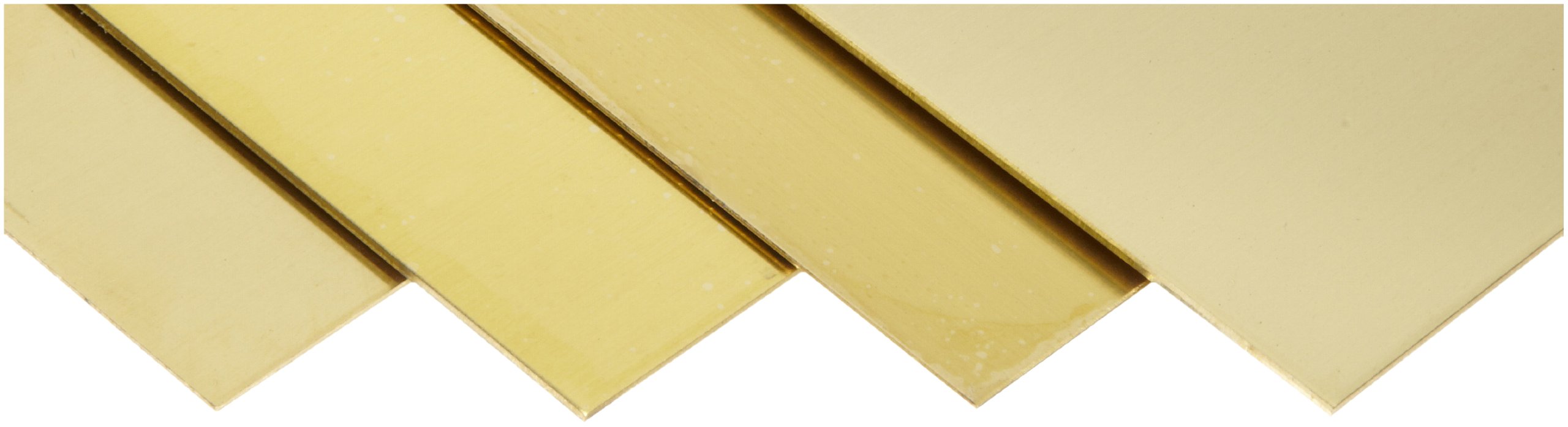

260 Brass Sheet Sample Pack, Unpolished (Mill) Finish, H02 Temper, ASTM B36, Varying Thicknesses, 4" Width, 4" Length (Pack of 4)

Be the first to review this item

ASIN B000HKTEHS

Product Specifications
Brand Name
Small Parts
Part Number
4603
Thickness
(Multiple)  inches
Thickness Tolerance
+/-0.0035  inches
Overall Width
4  inches
Width Tolerance
+0.125/-0  inches
Overall Length
4  inches
Length Tolerance
+0.125/-0  inches
Indentation Hardness
60-86 rockwell_b
Number of Items
4
Tensile Strength Max
61600  PSI
Specification for this product family (See all  products)
Exterior Finish
Unpolished (Mill)
Item Shape
Sheet
Specification Met
ASTM B36
Temper
H02
Material Composition
Solid
Grade
260
Material Type
Brass
UNSPSC Code
30000000
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 5 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pack of four sheets with thicknesses of 0.016", 0.025", 0.04", 0.063"
  • 260 brass, also known as yellow brass or cartridge brass, is corrosion resistant and has high formability
  • Meets ASTM B36 specifications
  • Unpolished (mill) surface has no finish
  • H02 temper has been cold worked to a 1/2 hard temper

Package Details

Shipping Weight: 0.74 pounds
Package Size: 3.9 x 3.9 x 0.2 inches

Product Description

The four 260 brass sheets with H02 temper are unpolished, meet American Society for Testing and Materials International ASTM B36 specifications, and have a standard tolerance. The pack contains one each of the following thickness: 0.016", 0.025", 0.04", and 0.063". The 260 brass alloy, also known as yellow brass and cartridge brass, is corrosion resistant and has high formability due to its zinc content. The material has an H02 temper, meaning it has been cold worked to a 1/2 hard temper.

Copper, brass, and bronze are known as red metals because they contain copper, which has a reddish color. Copper, a term that applies to alloys containing at least 99.3% copper, offers very high thermal and electrical conductivity and provides corrosion resistance, formability, and machinability. Brass is an alloy of copper and varying levels of zinc, sometimes with additional elements. It provides greater strength and better machinability than copper or bronze. Bronze is commonly an alloy of copper and tin, but sometimes it is copper alloyed with other elements such as aluminum, phosphorus, manganese, or silicon. Tin gives bronze more corrosion resistance than brass and greater strength than copper. Copper and its alloys have temper designations, meaning the material has undergone a process to achieve certain properties of strength and hardness.

Tensile strength, used to indicate the material's overall strength, is the peak stress it can withstand before it breaks. Corrosion resistance describes the material's ability to prevent deterioration caused by atmosphere, moisture, or other medium. Wear resistance indicates the ability to prevent surface damage caused by contact with other surfaces. Hardness (commonly measured as indentation hardness) describes its resistance to permanent surface deformation. Formability indicates how easily the material can be permanently shaped. Machinability describes how easily it can be cut, shaped, finished, or otherwise machined, while weldability characterizes the ability to be welded.
