Brady TLS2200 Thermal Labeling System

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Item Weight
7.54 pounds
662820185505 , 094712894170
Brand Name
Manufacturer Series Number
0094712894170 , 0662820185505

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 14 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Portable label printer is a labeling tool for identifying a variety of items, like cables, file folders, and equipment
  • Prints on continuous tape and die cut labels
  • 203 dpi thermal transfer printing stays crisp and bright longer than direct thermal printing
  • TrueType fonts from 4 to 72 point, on materials up to 2" wide and print length up to 54". ABC keyboard for simplicity
  • Printer Includes a 1 Year Limited warranty

Package Details

Shipping Weight: 7.7 pounds
Package Size: 15.5 x 13.5 x 5.6 inches

Product Description

The Brady TLS2200 Portable Label Printer prints via thermal transfer at 203 dots per inch (dpi) from 4 to 72 point, on materials up to 2” wide with print length up to 54", has an LCD display, and uses a simple ABC keyboard. For use in identifying a variety of items, from cables to equipment, this label printer has an ABC keyboard and prints single- or multi-line on over 140 label materials up to 2” wide and print lengths up to 54” long, in TrueType fonts. Use the TLS2200 to create die-cut, barcode, and continuous tape labels with 203 dpi for clear, crisp printing. The thermal transfer printing method stays bright and lasts longer than direct thermal printing.

The quick loading cartridge makes switching jobs faster than other label printers; the label printer automatically senses the cartridge label type and size. Labeler can hold a continuous roll up to 50’ long. The memory feature stores up to 10 setups. Labeler is light-weight: 2.75 lbs (1.25 kg) for portability. The label printer runs on the rechargeable battery or optional AC power. Printer has sleep mode to conserve battery; set the printer to sleep after 1, 3, or 5 minutes of nonuse.

Brady Corporation manufactures signs, tags, printers, and other industrial safety and identification products. Brady was founded in 1914, is headquartered in Milwaukee, Wisconsin, and meets International Organization for Standardization (ISO) 9000 standards. Visit the Brady Label Printer Store to see more Brady label printers

TLS2200 Applications

Function TLS2200 Specification
Label Types / Application Functions
Banner Portrait, Banner Landscape, Wire, Patch Panel, Terminal Block, DESI Strip, Fixed Length
Circuit Board Labeling, Data Communications Labeling, Facility, Safety & Maintenance Identification, General & Industrial Labeling, Healthcare ID, Laboratory ID, Security ID, Panel Identification, Wire & Cable Marking
Print Technology
Thermal Transfer
Print Resolution
203 dpi
Print Speed
12 mm/sec
Color Capability
Single Color Printing
Backlit Screen
2.75 lbs.
Power Supply
Rechargable Batter, AC Power (optional)
PC Connect Printing
Yes - Serial
Stand Alone Printing
Compatible Software
Labelmark Software, Windows based driver for 3rd party software use
21,000 characters, 10 label lists
File Transfer from PC to Printer
Continuous vs. Die Cut Labels
Continuous and Die Cut Labels
Materials Supported
Continuous, Die Cut, Bluk, 500+ Stock Parts
Tape Widths
0.250" - 2.000"
Max Label Width
Max Print Width
Label Roll Length
50 ft/500 ft Bulk
Text Sizes
4 - 72 pt.
Multi-Line Print
Print Rotation
128, IFT 25
44 on keypad

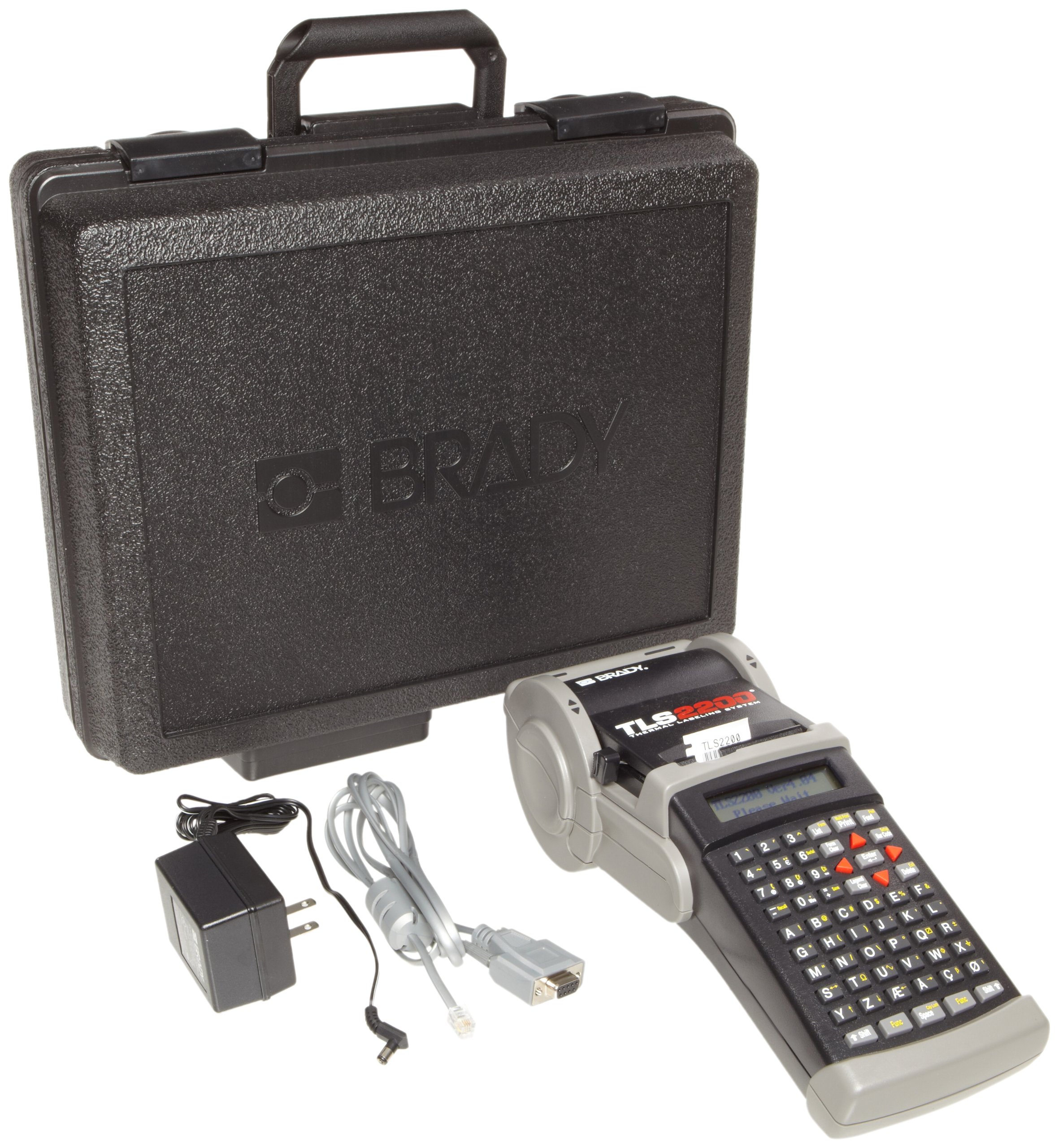

What's in the Box?

  • Brady TLS2200 handheld label printer
  • Hard plastic case
  • PC cable
  • AC power cord
  • Rechargeable battery
