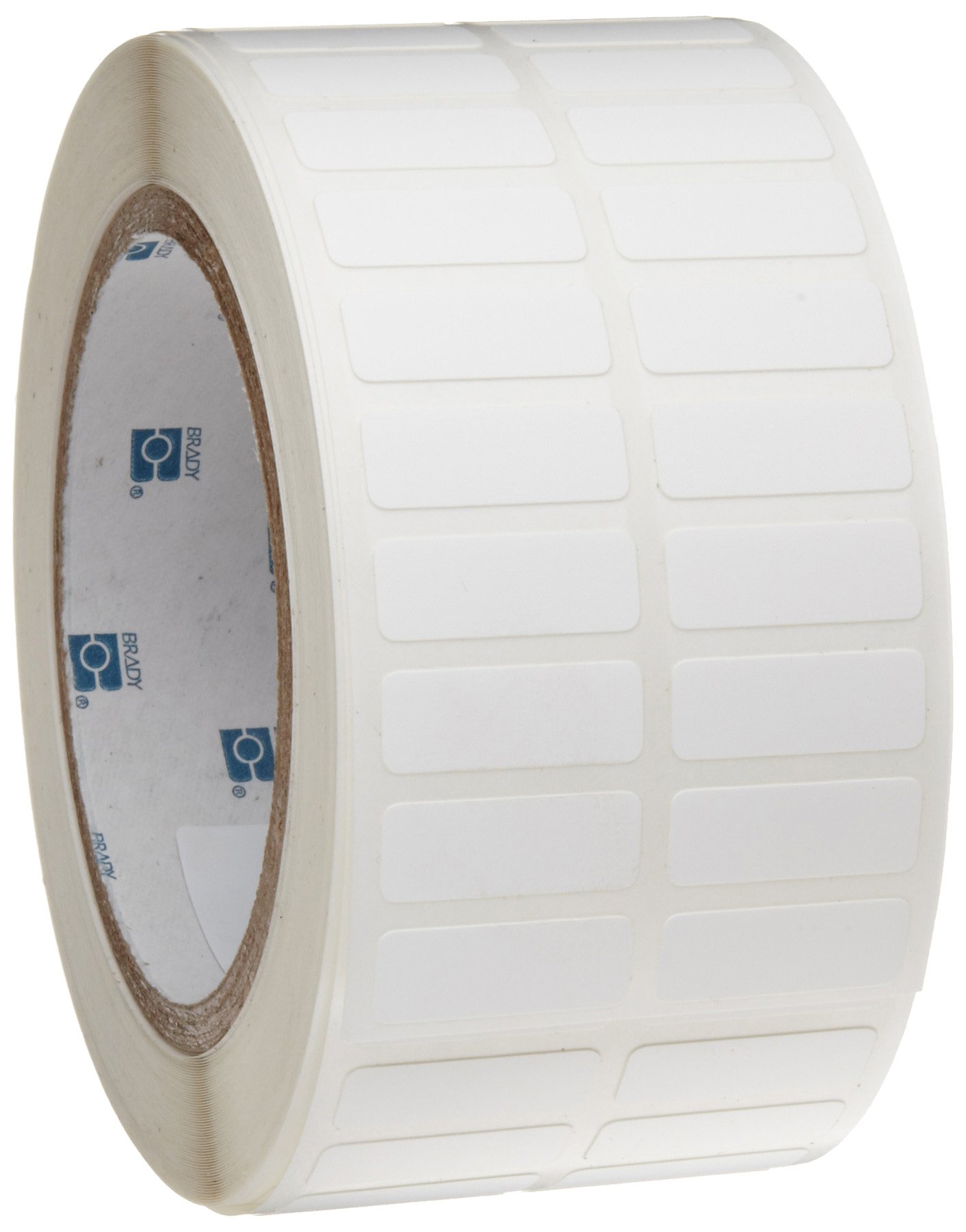

Brady THT-152-499-3 0.375" Width x 1" Height, B-499 Nylon Cloth, Matte Finish White Thermal Transfer Printable Label (3000 per Roll)

Be the first to review this item

ASIN B0057JYG4K

Specifications for this item

Brand Name: Brady
Color: White
EAN: 0662820623786
Manufacturer Series Number: 62378
Material Type: Nylon
Mfr Part #: THT-152-499-3

Overall Height: 1 inches
Overall Width: 0.375 inches
Pkg Qty: 3000
Roll Dimensions: 0.375"x1"
UPC: 662820623786

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, May 23? Order in-stock items in the next 23 hours 27 minutes and choose One-Day Shipping at checkout.

Key Features

Laboratory identification, vial top
Used for wiremarking and general labeling applications
UL Recognized, CSA Accepted, RoHS compliant

Package Details

Shipping Weight: 0.5 pounds
Package Size: 4.6 x 4.2 x 2.5 inches

Product Description

From the Manufacturer

Brady B-499 Thermal Transfer / Dot Matrix Printable Nylon Cloth Label

Wire and electronic component marking. Permanent adhesive. High adhesion makes all purpose wire marking ideal for environments where heat, cold, oil and dirt are present. Also ideal for laboratory vial identification. Not intended for outdoor use.

Material Description

Print Technology: Thermal transfer
Material Type: Polyamide coated nylon cloth
Finish: Matte white
Adhesive: Permanent acrylic

Recommended Thermal Transfer Ribbons
Thermal transfer ribbons are only needed for labels that do not have self-contained print ribbons

Brady Series R4300
Brady Series R4900
Brady Series R6000
Brady Series R6000 Halogen Free (previously known as R6000HF)
Brady Series R6200
Brady Series R4500 colored (red, blue and green)

Regulatory & Agency Approvals

UL: B-499 is a UL Recognized Component to UL969 Labelling and Marking Standard when printed with Brady Series R4300, R4900, R6000, R6000 Halogen Free thermal transfer ribbons and R2000 and R5000 dot matrix ribbons. See UL file MH17154 for specific details. UL information can be accessed online at UL.com. Search in Certifications area.
CSA: B-499 is CSA Accepted to C22.2 No.0.15-95 Adhesive Labels Standard when printed with Brady Series R4300 thermal transfer ribbon. See CSA file 041833 for specific details. CSA information can be accessed online at directories.csa-international.org.
DIN VDE 0472 Part 815: Brady B-499 meets requirements of a halogen-free material per DIN VDE 0472 part 815. (Statement based on review of product construction and confirmation halogen content test run at an independent test laboratory.)
RoHS: Brady B-499 is RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC.

About Brady

Brady manufactures signs, labels, lockout tagout solutions, safety devices, industrial label printers, software, and spill control used to comply with regulatory standards in electronics, telecommunications, manufacturing, electrical, construction, education, and medical industries. The company, founded in 1914, is headquartered in Milwaukee, WI.

PHYSICAL PROPERTIES	RESULTS	TEST METHODS
Substrate Thickness	0.0045 inch (0.115 mm)	ASTM D 1000
Adhesive Thickness	0.0020 inch (0.051 mm)	ASTM D 1000
Total Thickness	0.0065 inch (0.166 mm)	ASTM D 1000
Adhesion to Stainless Steel	45 oz/inch (50 N/100 mm) 20 minute dwell; 80 oz/inch (88 N/100 mm) 24 hour dwell	ASTM D 1001
Adhesion to Textured ABS	35 oz/inch (39 N/100 mm) 20 minute dwell; 40 oz/inch (44 N/100 mm) 24 hour dwell	ASTM D 1002
Adhesion to Polypropylene	24 oz/inch (26 N/100 mm) 20 minute dwell; 24 oz/inch (26 N/100 mm) 24 hour dwell	ASTM D 1003
Tack	29 oz (900 grams); Polyken Probe Tack	ASTM D 2979
Drop Shear	9 hours	PSTC-7 (except use 1/2" x 1" sample)
Tensile Strength & Elongation	80 lb/in (1400 N/100 mm), 50%	ASTM D 1000
Long Term High Service Temperature	No visible effect to label at 90°C, slight discoloration at 110°C but label still functional, at 120°C label is severely discolored	30 days at 193°F (90°C)
Short Term High Service Temperature	No visible effect to label at 145°C, slight shrinkage at 180°C but label still functional	5 minutes at 293°F (145°C)
Lower Service Temperature	No visible effect	30 days at -40°F (-40°C)
Weatherability	Material wrinkled and embrittled	30 days in Xenon Arc Weatherometer (ASTM G155, Cycle 1)
Humidity Resistance	No visible effect	30 days at 100°F, 95% R.H.
UV Light Resistance	No visible effect	30 days in UV Sunlighter 100
Abrasion Resistance	Print still legible at: 150 cycles with R4300, R4900, R6000, R6000 Halogen Free, R6200, R2000 and R5000 ribbons	Taber Abraser, CS-10 grinding wheels, 500 g/arm (Fed. Std. 191A, Method 5306)

Product Description

Printable, nylon cloth Labels for thermal transfer printers. B-499 is not recommended for outdoor use. Print Technology: Thermal transfer. Material Type: Polyamide coated nylon cloth. Finish: Matte white. Adhesive: Permanent acrylic. Recommended Ribbons: Brady Series R4300, Brady Series R4900, Brady Series R6000, Brady Series R6000HF, Brady Series R6200 and Brady Series R4500 colored (red, blue and green) Dot Matrix Ribbons: Brady Series R2000 and Brady Series R5000 B-499 is a UL Recognized Component to UL969 Labelling and Marking Standard when printed with Brady Series R4300, R4900 and R6000 thermal transfer ribbons and R2000 and R5000 dot matrix ribbons. See UL file MH17154 for specific details. CSA: B-499 is CSA Accepted to C22.2 No.0.15-95 Adhesive Labels Standard when printed with Brady Series R4300 thermal transfer ribbon. See CSA file 041833 for specific details. DIN VDE 0472 Part 815: Brady B-499 meets requirements of a halogen-free material per DIN VDE 0472 part 815. (Statement based on review of product construction and confirmation halogen content test run at an independent test laboratory.) Brady B-499 is RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC.
