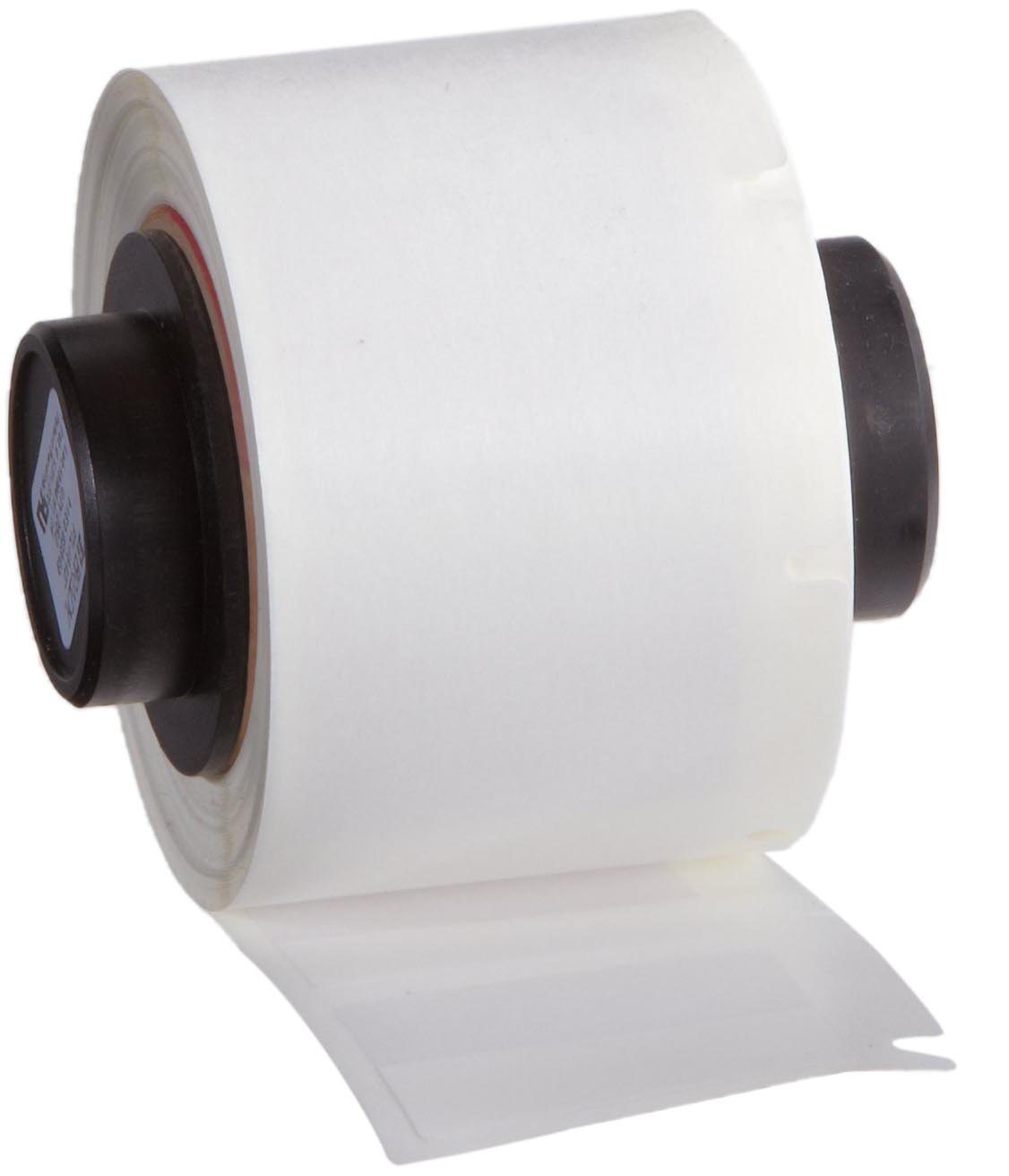

Brady PTL-33-427-YL TLS 2200 and TLS PC Link, B-427 Self-Laminating Vinyl, Matte Finish Yellow/Translucent Label

Be the first to review this item

Product Specifications
Material Type
Vinyl
UNSPSC Code
55121620
Brand Name
Brady

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 19? Order in-stock items in the next 4 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 77 Next 20 »
Model Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 77 Next 20 »
BPTL-109-427 1.5"x4" B004918ZWG yes $140.02 Buy Options
BPTL-23-427 1"x4" B004918YLS yes $186.30 Buy Options
BPTL-30-427 0.75"x1.5" B004918YMC yes $228.40 Buy Options
BPTL-34-427 1.5"x6" B004918YOK yes $235.62 Buy Options
PTL-10-427 0.25"x0.75" B004M5JA32 yes $32.70 Buy Options
PTL-102-427 0.5"x1.25" B004M5JA2I yes $19.74 Buy Options
PTL-103-427 1"x1.25" B004M5JA2S yes $39.53 Buy Options
PTL-104-427 1.5"x1" B004M5JA3C yes $13.18 Buy Options
PTL-105-427-AW 1.1"x0.25" B004M5J9TW yes $48.41 Buy Options
PTL-106-427 1.5"x50' B004M5J9ZG yes $24.90 Buy Options
PTL-107-427 2"x1.5" B004M5JA3M yes $53.23 Buy Options
PTL-109-427 1.5"x4" B004M5JA3W yes $41.26 Buy Options
PTL-11-427 0.5"x0.75" B0042T10UY yes $34.77 Buy Options
PTL-157-427 1.5"x2.5" B004M5JA46 yes $37.02 Buy Options
PTL-17-427 0.5"x1" B0042T560O yes $37.23 Buy Options
PTL-18-427 0.75"x1" B0042SY78C Temporarily out of stock. Order now and we'll deliver when available. $32.47 Buy Options
PTL-18-427-YL 0.75"x1" B004M5J9S8 yes $40.55 Buy Options
PTL-19-427 1"x1" B000LB9R8O yes $34.99 Buy Options
PTL-19-427-BL 1"x1" B004M5J9WY yes $11.64 Buy Options
PTL-19-427-GR 1"x1" B004M5J9Z6 yes $39.38 Buy Options

Key Features

  • B-427 self-laminating vinyl is an excellent material for wire and cable identification, this material has good clarity, conformability and is self-extinguishing
  • B-427 has outstanding water and oil resistance
  • Special features excellent abrasion and smudge resistance
  • Applications are laboratory identification, panel identification, voice/data identification, wire and cable marking
  • Agency approval UL recognized

Product Description

B-427 is an excellent material for wire and cable identification. B-427 is not recommended for use in harsh organic solvents such as methyl ethyl ketone, acetone, or 1,1,1-trichloroethane. Print Technology: Thermal Transfer. Material Type: Translucent vinyl. Finish: Provided in a self-laminated format with a white printable zone and a translucent overlaminating area. Adhesive: Permanent acrylic. RECOMMENDED RIBBONS: Brady Series R4300 black and R4500 colored (red, blue, green) for thermal transfer printing. REGULATORY/AGENCY APPROVALS: B-427 is UL Recognized to UL969 Labeling and Marking Standard when printed with the Brady Series R4300 and R6200 ribbons. See UL files MH17154 for specific details. B-427 is RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC.

From the Manufacturer

Brady

Self-Laminating Cable & Wire Labels (B-427)

  • Conformable material designed to adhere to highly curved surfaces, wires and cables
  • Features a white printable area with clear “tail” that wraps around marker
  • Clear tail serves as over-laminate to protect the text, providing superior resistance to abrasion, dirt, oils, solvents, water and excessive handling
  • This material has good clarity, conformability and is self-extinguishing
  • Service temp: -40ºF to 158ºF Application temp: 50ºF to 158ºF

Material Description

  • Print Technology: Thermal Transfer
  • Material Type: Translucent vinyl
  • Finish: Provided in a self-laminated format with a white printable zone and a translucent overlaminating area.
  • Adhesive: Permanent acrylic

Applications

  • Wire and cable identification

Recommended Thermal Transfer Ribbons

Thermal transfer ribbons are only needed for labels that do not have self-contained print ribbons

  • Brady Series R4300 - Black
  • Brady Series R4500 - Red, Blue, Green
  • Brady Series R6200

Regulatory/Agency Approvals

  • UL: Recognized to UL969 Labeling and Marking Standard when printed with the Brady Series R4300 and R6200 ribbons. See UL files MH17154 for specific details
  • RoHS: Compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC

Material Details

PHYSICAL PROPERTIES RESULTS TEST METHODS
Total Thickness
0.0040 inch (0.102 mm)
ASTM D 1000
Adhesion to Stainless Steel
38 oz/inch (42 N/100 mm) 20 minute dwell; 49 oz/inch (54 N/100 mm) 24 hour dwell
ASTM D 1001
Adhesion to Polypropylene
25 oz/inch (28 N/100 mm) 20 minute dwell; 33 oz/inch (36 N/100 mm) 24 hour dwell
ASTM D 1003
Tack
13.3 oz (378 grams); Polyken Probe Tack
ASTM D 2979
Drop Shear
3.3 Hours
PSTC-7 (except use 1/2" x 1" sample)
Tensile Strength & Elongation
12 lb/in (210 N/100 mm) 152%, Machine; 11 lbs/in (193 N/100 mm) 195%, Cross
ASTM D 1000
Flamibility
ABT less than 10 Seconds
ASTM D 1000
High Service Temperature
Slight discoloration at 140°F (60°C)
30 days at 158°F (70°C)
Low Service Temperature
No visible effect
30 minutes at -40°F (-40°C)
Weatherability
No visible effect
30 days in Xenon Arc Weatherometer (ASTM G155, Cycle 1)
Humidity Resistance
No visible effect
30 days at 100°F, 95% R.H.

About Brady

Brady Corporation manufactures signs, tags, printers, and other industrial safety and identification products. Brady was founded in 1914, is headquartered in Milwaukee, Wisconsin, and meets International Organization for Standardization (ISO) 9000 standards. Visit the Brady Label Finder Store to find a labels for your printer
