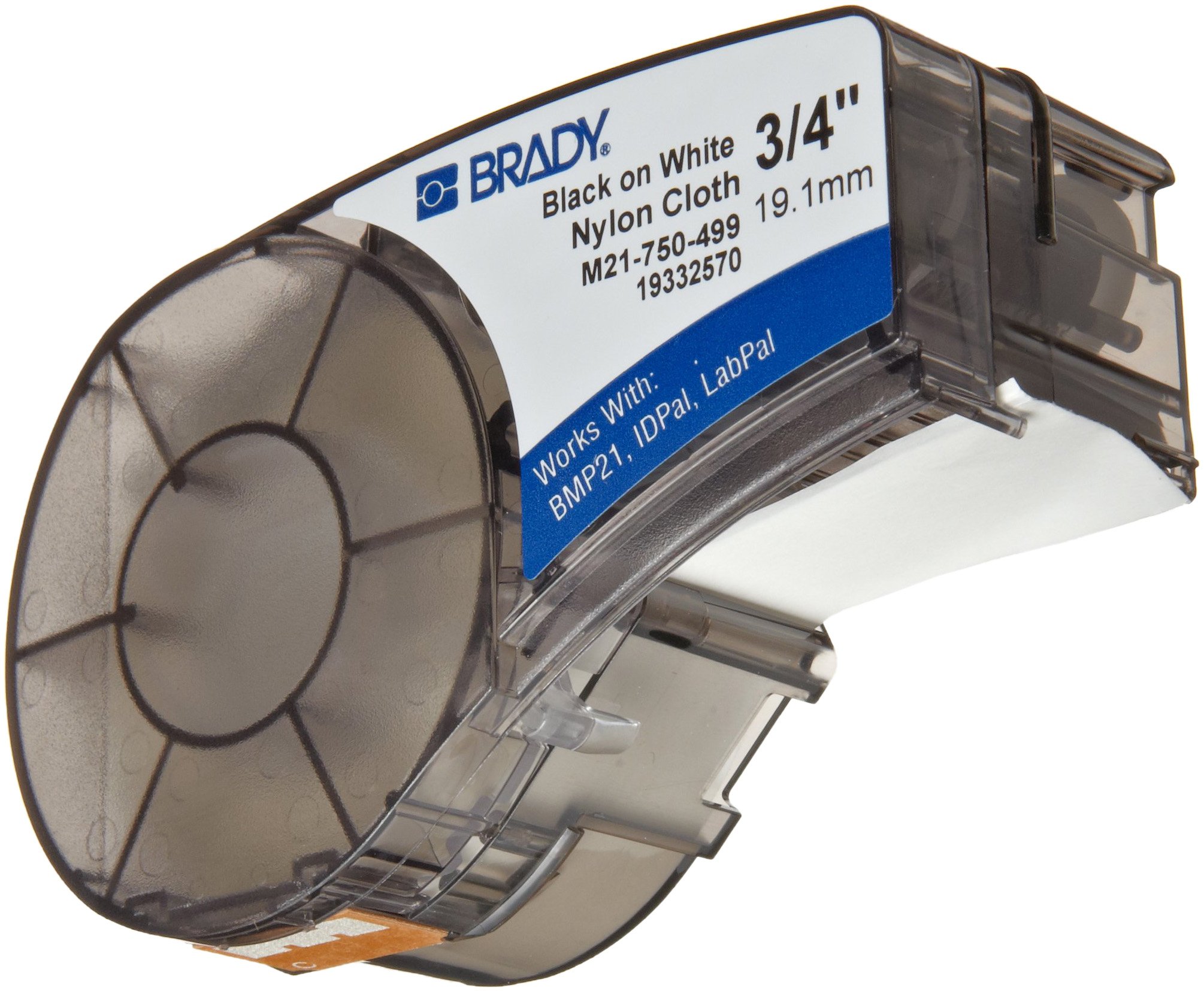

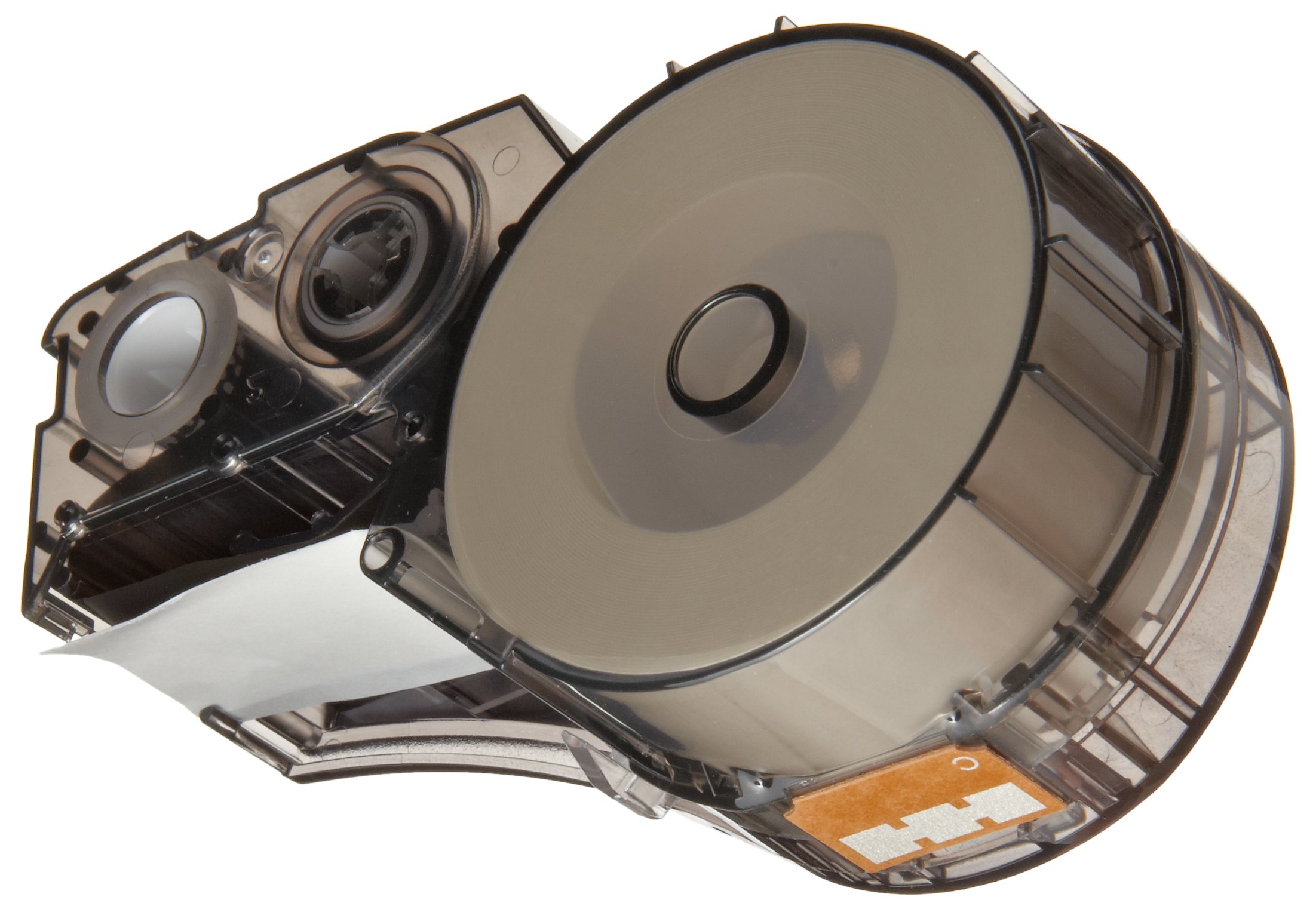

Brady M21-750-499 16' Length, 0.75" Width, B-499 Nylon Cloth, Black On White Label for BMP21, ID PAL, and LABPAL Printers
Be the first to review this item
ASIN B003XU7SPY
Specifications for this item
- Brand Name
- Brady
- Color
- Black On White
- EAN
- 0662820899655
- Manufacturer Series Number
- 110895
- Marking Color
- Black
- Material Type
- Nylon
- Mfr Part #
- M21-750-499
- Overall Height
- 16 feet
- Overall Length
- 16 feet
- Overall Width
- 0.75 inches
- Pkg Qty
- 1
- Roll Dimensions
- 0.75"x16'
- UPC
- 662820899655
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 2 days 22 hours 17 minutes and choose One-Day Shipping at checkout.
Key Features
- Communications cables, general identification, laboratory identification, panel identification, plate, vial, voice/data identification, wire and cable marking
- Autoclave, freezer, liquid nitrogen environment
- Surface are highly textured, low surface energy, powder coated, smooth, textured/rough
- Special features are low profile, high adhesion UL recognized, halogen-free (DIN VDE 0472/parts 815)
Package Details
Shipping Weight:
0.2 pounds
Package Size:
5.3 x 2.8 x 1.8 inches
Product Description
From the Manufacturer
Brady B-499 Thermal Transfer / Dot Matrix Printable Nylon Cloth Label
Wire and electronic component marking. Permanent adhesive. High adhesion makes all purpose wire marking ideal for environments where heat, cold, oil and dirt are present. Also ideal for laboratory vial identification. Not intended for outdoor use.
Material Description
- Print Technology: Thermal transfer
- Material Type: Polyamide coated nylon cloth
- Finish: Matte white
- Adhesive: Permanent acrylic
Recommended Thermal Transfer Ribbons
Thermal transfer ribbons are only needed for labels that do not have self-contained print ribbons
- Brady Series R4300
- Brady Series R4900
- Brady Series R6000
- Brady Series R6000 Halogen Free (previously known as R6000HF)
- Brady Series R6200
- Brady Series R4500 colored (red, blue and green)
Regulatory & Agency Approvals
- UL: B-499 is a UL Recognized Component to UL969 Labelling and Marking Standard when printed with Brady Series R4300, R4900, R6000, R6000 Halogen Free thermal transfer ribbons and R2000 and R5000 dot matrix ribbons. See UL file MH17154 for specific details. UL information can be accessed online at UL.com. Search in Certifications area.
- CSA: B-499 is CSA Accepted to C22.2 No.0.15-95 Adhesive Labels Standard when printed with Brady Series R4300 thermal transfer ribbon. See CSA file 041833 for specific details. CSA information can be accessed online at directories.csa-international.org.
- DIN VDE 0472 Part 815: Brady B-499 meets requirements of a halogen-free material per DIN VDE 0472 part 815. (Statement based on review of product construction and confirmation halogen content test run at an independent test laboratory.)
- RoHS: Brady B-499 is RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC.
About Brady
Brady manufactures signs, labels, lockout tagout solutions, safety devices, industrial label printers, software, and spill control used to comply with regulatory standards in electronics, telecommunications, manufacturing, electrical, construction, education, and medical industries. The company, founded in 1914, is headquartered in Milwaukee, WI.
| PHYSICAL PROPERTIES | RESULTS | TEST METHODS |
|---|---|---|
Substrate Thickness | 0.0045 inch (0.115 mm) | ASTM D 1000 |
Adhesive Thickness | 0.0020 inch (0.051 mm) | ASTM D 1000 |
Total Thickness | 0.0065 inch (0.166 mm) | ASTM D 1000 |
Adhesion to Stainless Steel | 45 oz/inch (50 N/100 mm) 20 minute dwell; 80 oz/inch (88 N/100 mm) 24 hour dwell | ASTM D 1001 |
Adhesion to Textured ABS | 35 oz/inch (39 N/100 mm) 20 minute dwell; 40 oz/inch (44 N/100 mm) 24 hour dwell | ASTM D 1002 |
Adhesion to Polypropylene | 24 oz/inch (26 N/100 mm) 20 minute dwell; 24 oz/inch (26 N/100 mm) 24 hour dwell | ASTM D 1003 |
Tack | 29 oz (900 grams); Polyken Probe Tack | ASTM D 2979 |
Drop Shear | 9 hours | PSTC-7 (except use 1/2" x 1" sample) |
Tensile Strength & Elongation | 80 lb/in (1400 N/100 mm), 50% | ASTM D 1000 |
Long Term High Service Temperature | No visible effect to label at 90°C, slight discoloration at 110°C but label still functional, at 120°C label is severely discolored | 30 days at 193°F (90°C) |
Short Term High Service Temperature | No visible effect to label at 145°C, slight shrinkage at 180°C but label still functional | 5 minutes at 293°F (145°C) |
Lower Service Temperature | No visible effect | 30 days at -40°F (-40°C) |
Weatherability | Material wrinkled and embrittled | 30 days in Xenon Arc Weatherometer (ASTM G155, Cycle 1) |
Humidity Resistance | No visible effect | 30 days at 100°F, 95% R.H. |
UV Light Resistance | No visible effect | 30 days in UV Sunlighter 100 |
Abrasion Resistance | Print still legible at: 150 cycles with R4300, R4900, R6000, R6000 Halogen Free, R6200, R2000 and R5000 ribbons | Taber Abraser, CS-10 grinding wheels, 500 g/arm (Fed. Std. 191A, Method 5306) |
Product Description
The Brady M21-750-499 B-499 nylon cloth tape is 0.75" wide and 16' long, has a permanent acrylic adhesive and a polyamide coating, and prints in black text on a white background with a matte finish. It can be used for marking cables and wires, and for general-purpose labeling on laboratory items, equipment panels, and faceplates. Nylon cloth tape is durable, has good chemical resistance, and resists abrasion. It is made from Brady's B-499 nylon material, which has a protective polyamide coating and permanent acrylic adhesive that keeps tape adhered to surfaces, even in autoclave, freezer, and liquid nitrogen environments (not recommended for outdoor use). This low-profile tape adheres well to surfaces that are smooth, rough, highly textured, or powder coated, as well as to irregular surfaces or surfaces with low surface energy. It is intended for use with Brady MP21, ID PAL, and LABPAL label printers.
Brady M21-750-499 printer label is an Underwriters Laboratories (UL) Recognized component that complies with UL969 labeling and marking standards when used with the appropriate printer. This product meets the requirements of a halogen-free material per Deutsches Institut für Normung (DIN) standard VDE 0472, part 815.
