Brady XPS-1 IDXPERT PermaSleeve, B-342 Heat-Shrink Polyolefin, Wire Marker Sleeves

Be the first to review this item

Product Specifications
Material Type
Polyolefin
UNSPSC Code
41122702
Brand Name
Brady

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 7 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Color Roll Dimensions Range of Wire Diameter Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
Black On White 1.015"x0.235"   1 XPS-125-1 B002FYETR4 227 $51.28 Buy Options
Black On White 0.235"x0.235"   1 XPS-125-CONT B003XU7KXE 18 $41.64 Buy Options
Black On White 1.015"x0.335"   1 XPS-187-1 B002FYM0Q6 180 $56.29 Buy Options
Black On White 0.335"x8' 0.062 - 0.150" 1 XPS-187-CONT B002FYM1X8 26 $48.38 Buy Options
Black On White 1.015"x0.439"   1 XPS-250-1 B002FYIWHC 44 $67.57 Buy Options

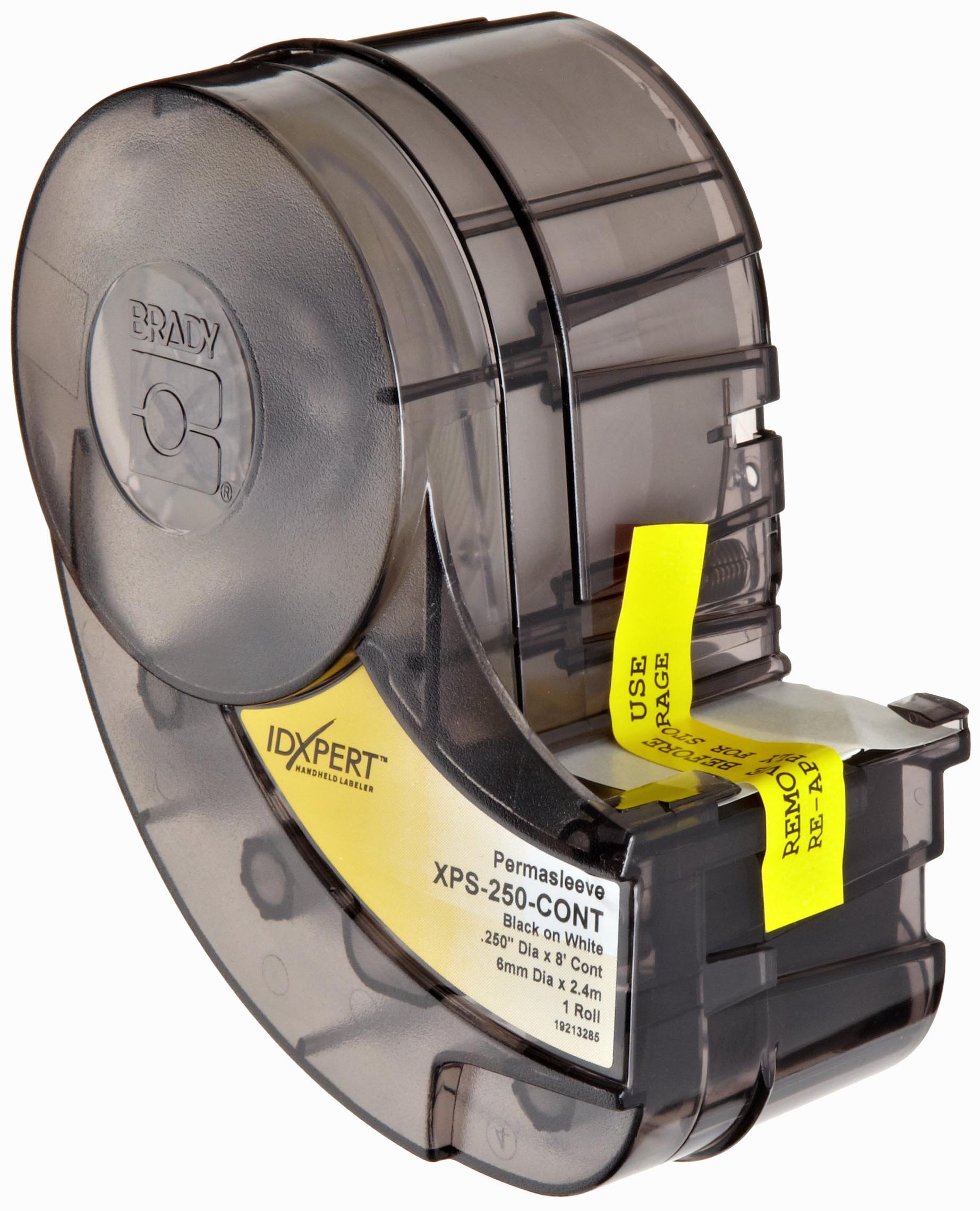

Black On White 1.015"x0.439"   1 XPS-250-CONT B003XU7LEW 7 $50.33 Buy Options
Black On White 1.015"x0.645"   1 XPS-375-1 B003XU7KXO 8 $97.62 Buy Options
Black On White 1.015"x0.645"   1 XPS-375-CONT B003U7GYK0 5 $64.79 Buy Options
Black On Yellow 1.015"x0.235"   1 XPS-125-CONT-YL-BK B003XU7LBU 22 $41.64 Buy Options
Black On Yellow 1.015"x0.335"   1 XPS-187-CONT-YL-BK B003XU7LC4 6 $45.89 Buy Options
Black On Yellow 1.015"x0.439"   1 XPS-250-CONT-YL-BK B003XU7LCE 4 $49.85 Buy Options

Key Features

  • Use these wire marker sleeves for wire and cable marking and panel identification
  • Sleeves are kitted style (individually pre-cut)
  • Brady's permasleeve wire marking sleeves are heat-shrinkable, self-extinguishing and excellent cold-weather performance
  • The operating temperature range is -55 to +135 degrees Celsius
  • Thermal transfer and dot matrix print technology

Product Description

Brady - When Performance Matters Most

Brady B-342 Thermal Transfer / Dot Matrix Printable Nylon Cloth Label

Brady’s non-adhesive, printable heat shrink wire marking sleeves fit around wires or cables for maximum insulation protection and permanent identification. Brady’s heat shrink sleeving is a full-circle design that provides fast and permanent wire marking. Clear, legible text can be printed on the wire and cable sleeving with a Brady printer for reliable wire identification. Brady heat shrink sleeving materials excel in extreme environments, including temperature fluctuations and environments that require abrasion and chemical resistance. Brady offers a variety of materials available to print using thermal transfer and dot matrix printers. B-342 3:1 heat shinkable sleeves for wire identification and insulation purposes are fade resistant and fire retardant. B-342 is available in white, yellow, black, red, orange, green, blue, violet, pink, gray, and brown.

Material Description

  • Print Technology: Thermal transfer and dot matrix
  • Material Type: Irradiated polyolefin heat shrink tubing (3:1 shrink ratio)
  • Temperature Range: -55°C (-67°F) to +135°C (+275°F)
  • Shrink Method: Any industrial grade heat gun may be used to shrink B-342 Markers.

Recommended Thermal Transfer Ribbons
Thermal transfer ribbons are only needed for labels that do not have self-contained print ribbons.

  • Brady R6600 Series for thermal transfer printing - best smear and chemical resistance
  • Brady R4300 Series for thermal transfer printing - general purpose ribbon
  • Brady R4502S for thermal transfer printing silver on dark colored markers
  • Brady R6000 Series Halogen Free (previously known as R6000HF)
  • Brady R6700 for thermal transfer printing white on dark colored markers
  • Brady R5000 Series for dot matrix printing

Regulatory & Agency Approvals

  • UL: B-342 is a UL Recognized Component to UL224 Extruded Insulated Tubing. See UL file E333786 for specific details. UL information can be accessed on line at UL.com. Search in Certifications area.
  • RoHS 2005/618/EC: As of January 2009, Brady began the transition to full RoHS compliant B-342 to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC. To determine if you have RoHS compliant product please contact customer service.
  • SAE: B-342 PermaSleeve Markers meet the material and physical property requirements of SAE AMS-DTL-23053/5C (Class 1) for Insulation Sleeving and SAE AS-81531 for Marking of Electrical Insulating Materials when printed with R6600, R4300, R4502S, R6700 Series thermal transfer ribbons and R5000 Series dot matrix.

About Brady

Brady manufactures signs, labels, lockout tagout solutions, safety devices, industrial label printers, software, and spill control used to comply with regulatory standards in electronics, telecommunications, manufacturing, electrical, construction, education, and medical industries. The company, founded in 1914, is headquartered in Milwaukee, WI. Visit the Brady Label Finder Store to find labels for your printer.

Sizing Chart

Sleeve Size Range of Diameter (in) Range of Diameter (mm) Approximate Gauge
3/32" (0.094)
0.023 - 0.080
0.58 - 2.03
28 to 20
1/8" (0.125)
0.046 - 0.110
1.17 - 2.79
22 to 16
3/16" (0.188)
0.062 - 0.150
1.57 - 3.81
20 to 10
1/4" (0.250)
0.094 - 0.215
2.39 - 5.46
16 to 8
3/8" (0.375)
0.125 - 0.320
3.18 - 8.13
12 to 4
1/2" (0.500)
0.187 - 0.450
4.75 - 11.43
8 to 1
3/4" (0.750)
0.250 - 0.700
6.35 - 17.78
6 to 4/0
1" (1.000)
0.375 - 0.950
9.53 - 24.13
2 to 0.950
1 1/2" (1.500)
0.500 - 1.450
12.7 - 36.83
NA
