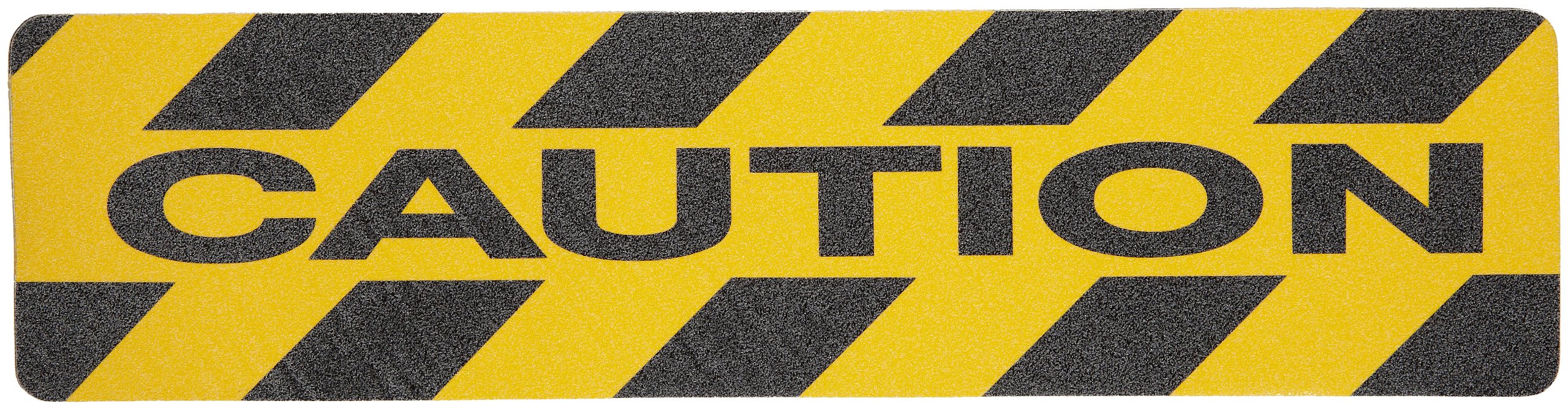

Brady 6" Height, 24" Width, B-916 Grit-Coated Polyester Tape, Black On Yellow Color Anti-Skid Tape Hazard Marking Diecut Cleats, Legend "Caution" (Pack Of 24)

Be the first to review this item

ASIN B003X27DFM

Specifications for this item
Number of Items
24
Overall Height
6  inches
Overall Width
24  inches
Part Number
78160
Temperature Range
-40/158  Degrees Fahrenheit
UPC
754473781606
Brand Name
Brady
Marking Color
Black
Manufacturer Series Number
78160
EAN
0754473781606
UNSPSC Code
55121704
LowerTemperature Range
50  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 8 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Our hazard marking diecut cleats do more than provide an anti-skid surface to your hazardous areas, they also give a clear message to workers
  • Made of B-916 grit-coated polyester tape, an indoor/outdoor anti-skid tape, with a permanent pressure sensitive adhesive
  • Brady B-916 is used for traction on steps, slick floors, and egress pathway marking
  • Adhesive type is permanent pressure sensitive acrylic
  • Average outdoor durability is 1-2 years (average expected outdoor life of product will depend on user definition of failure, climatic conditions, mounting techniques and material color)

Package Details

Shipping Weight: 10.8 pounds
Package Size: 23.5 x 6 x 0.9 inches

Product Description

Brady 78160 anti-skid tape hazard marking diecut cleats. Made of B-916 grit-coated polyester tape in a 6" height, 24" width size. Standard package is 24 cleats. Legend is "CAUTION", with black on yellow color. Brady B-916 is an indoor/outdoor anti-skid tape, with a permanent pressure sensitive adhesive. Substrate type is plastic film. Standard material colors are available with white, black, yellow, red, and clear. Total Thickness (PSTC-33) is 0.026 inches. Adhesive properties are adhesion to steel (PSTC-1), 15 Minute Dwell (average) 93 ounce/inch (100 N/ 100mm), Ultimate Dwell (72 hours) (average) 112 ounce/inch (121 N/ 100mm), Tack (ASTM D 2979) (average) 1500 g (14.6 N). Abrasion Resistance (method 5306 of U.S. federal test method standard no. 191A) H-22 wheels, 1000 g weights withstood up to 70 cycles. Minimum application temperature is 50 degree fahrenheit. Service temperature is -40 degree fahrenheit to 158 degree fahrenheit.

From the Manufacturer

Brady

Brady signs feature bright colors, bold text and intuitive pictographs to ensure that the communication is highly visible and easily understood. The signs are compliant with the latest standards and regulations, and designed to withstand even the harshest industrial environments

ASME (ANSI Z535) Sign Header Guide

ASME (ANSI Z535) and the Occupational Safety and Health Administration (OSHA 1910.145) Specifications for Accident Prevention Signs require the use of Safety Signs to indicate and define specific hazards that, without identification, may lead to accidental injury to workers and/or the public or to property damage. Jump to Brady signs for Danger, Warning, Caution, Notice, or Safety First.

Brady

Stock Sign Materials

Premium Fiberglass Signs - B-120
  • Made of our highest quality, longest lasting sign material
  • Will not peel or fade
  • Guaranteed for 25 years
  • Ideal for outdoors or harsh environments
BradyTuff. Aluminum Signs - B-555
  • Superior abrasion and chemical resistance, indoors or out
  • Protected graphics keep message clear
  • Weather and sunlight resistant
  • Stands up to spills, wash-downs and cleanings
High Performance Polyester Signs - B-302
  • Bright graphics on flexible material, sticks to almost any shape or surface
  • Lasts up to 8 years outdoors, longer indoors
  • Stands up to repeated spills and cleanings
  • Permanent adhesive holds where others fail
BradyTuff. Plastic Signs - B-401
  • Economically priced, perfect for light duty or temporary use
  • Protected graphics for durability
  • 3 to 5 year outdoor life
  • Over 2000 stock legends

See Sign Material Guide

As a global leader in facility signage, there's no other company that can help you communicate critical information better than Brady. We offer more than 8,000 different signs for safety, maintenance and facility identification. Brady signs feature bright colors, bold text and intuitive pictographs to ensure that the communication is highly visible and easily understood. The signs are compliant with the latest standards and regulations, and designed to withstand even the harshest industrial environments.

Brady Corporation manufactures signs, tags, printers, and other industrial safety and identification products. Brady was founded in 1914, is headquartered in Milwaukee, Wisconsin, and meets International Organization for Standardization (ISO) 9000 standards. Visit the Brady Sign Store to see more Brady Signs
