Brady BMP71 Label Printer with USB Connectivity

Click for larger image and other views

How can we improve our images or Product Specifications?

Brady BMP71 Label Printer with USB Connectivity

Be the first to review this item

ASIN B0048BQ1PK

Specifications for this item

Brand Name: Brady
Display: LCD
EAN: 0662820801825
LowerTemperature Range: 40 Degrees Fahrenheit
Manufacturer Series Number: 115157
Maximum Temperature: 120 Degrees Fahrenheit
Number of Items: 1

Overall Height: 4.6 inches
Overall Length: 13.1 inches
Overall Width: 9.5 inches
Part Number: BMP71
UPC: 662820801825
Upper Temperature Range: 120 Degrees Fahrenheit

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wednesday, June 19? Order in-stock items in the next 15 hours 25 minutes and choose One-Day Shipping at checkout.

Key Features

Portable label printer is a labeling tool for identifying a variety of items, like cables, file folders, and equipment
Single-color printing on over 400 label materials up to 2" wide, such as heat-shrink sleeves, self-laminating labels, and raised panel labels
Thermal transfer printing stays crisp and bright longer than direct thermal printing
Automatic label formatting for convenience
Print speed of 1.5" per second for fast and efficient labeling

Package Details

Shipping Weight: 14.3 pounds
Package Size: 18.9 x 14.7 x 8.7 inches

Product Description

The Brady BMP71 Portable Label Printer prints via thermal transfer at 300 dots per inch (dpi) on a variety of materials, has automatic label formatting, and prints at 1.5" per second. With a QWERTY keyboard (standard on most computers), the Brady BMP71 prints in character sizes up to 2” wide. For use in identifying a variety of items, from cables to equipment, this labeler prints single- or multi-line, in character sizes from 4 to 170 point. Use the BMP71 to create self-laminating labels, heat-shrink sleeves, die-cut labels, and continuous tape labels with 300 dpi for clear, crisp printing. Thermal transfer printing stays bright and lasts longer than direct thermal printing. This printer can be used by itself, or with a computer, and connects via USB.

The BMP71 has built-in wizards for electrical, datacomm, and general identification labels, barcodes, and over 500 graphics, and includes a time/date stamp, if desired. It’s easy to store, retrieve, and delete label files, with 200 MB storage for over 100,000 unique label files. Print single or multiple copies of labels, or create complex labels with multiple sections. The full-color LCD is easy-to-read and displays exactly how the label will appear, with indicators displaying the installed label part, label size and color, label and area status, current font size and rotation, amount of material remaining, and the remaining battery charge, to help make labeling easier and more intuitive Built-in touch cell in labels and ribbons allows labeler to automatically format label. Labeler can hold a continuous roll up to 50’ long, and print a label up to 40” (1016 mm) long. The label printer runs on a rechargeable battery or optional AC power, and has a sleep mode to save power when not in use. Labeler operates in temperatures from 40 to 120 degrees F (4 to 49 degrees C) and comes with a 12-month manufacturer warranty.

Label printers, also called label makers or labelers, are a type of computer printer that print on rolled stock or fanfold stock. Label printers are used for many purposes, including asset management, price marking, packaging labels, laboratory specimen marking, and naming file folders. Label printers use a variety of printing technologies, such as laser, thermal transfer and direct thermal mechanisms. Some label printers may interface with a computer to create special types of labels, such as barcodes, while other label printers can create special content using the printer’s own operating system.

Brady Corporation manufactures signs, tags, printers, and other industrial safety and identification products. Brady was founded in 1914, is headquartered in Milwaukee, Wisconsin, and meets International Organization for Standardization (ISO) 9000 standards. Visit the Brady Label Printer Store to see more Brady label printers

BMP71 Highlights

Multiple Printing Options

Mirror
Frame
Reverse

Save Time.
BMP71 comes with built in design wizards for a variety of applications including:

Electrical
Voice and data communications
Safety & general Identification

Cut Material Waste. Large, full color graphical screen shows you:

What your label will look like
Label material and ribbon part number
Label color and size
Remaining material, ribbon and battery life

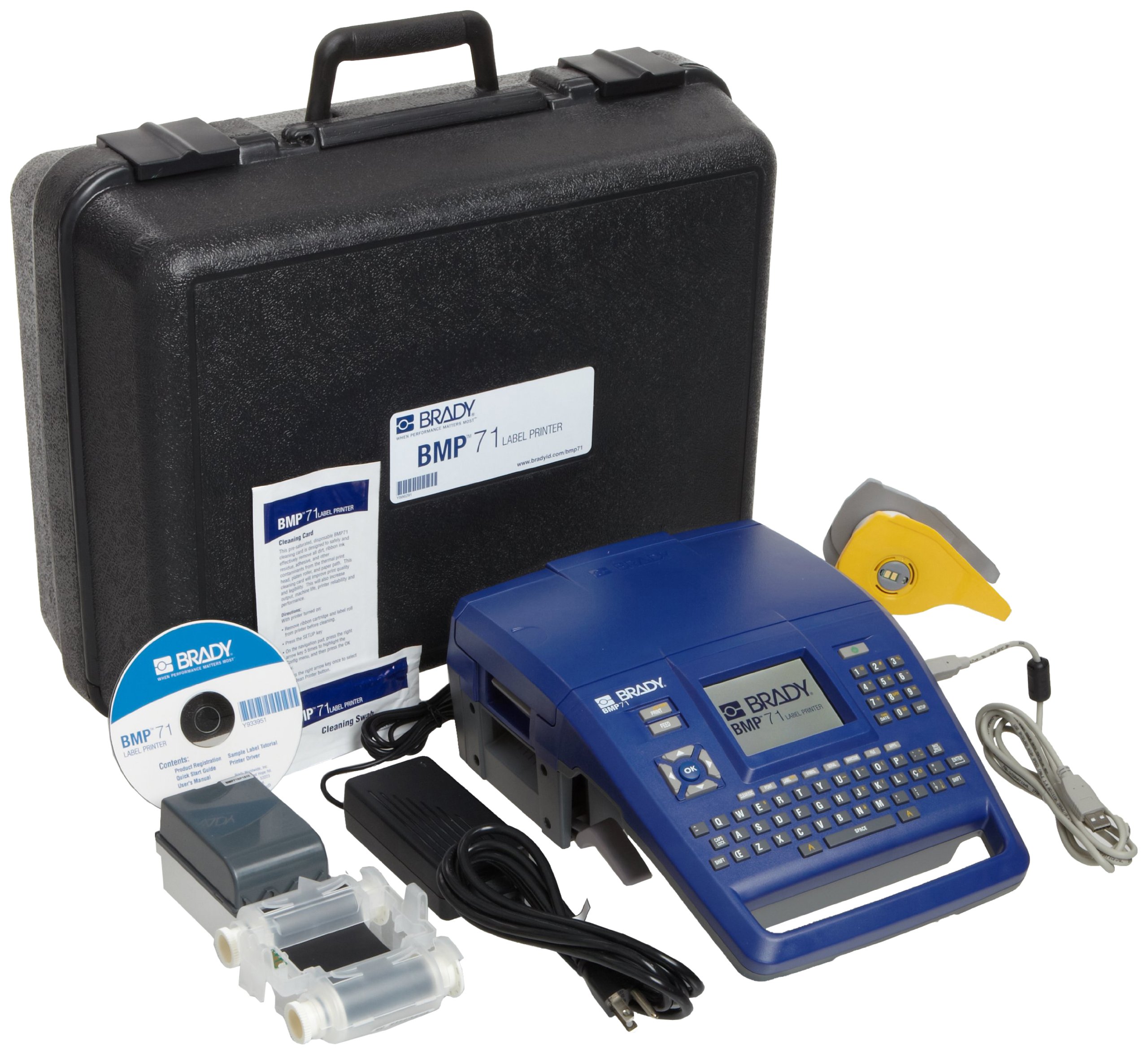

What's in the Box?

BMP 71 label printer
Hard case
Rechargeable battery pack
Battery charger/AC power supply
Roll of M71-31-423 labels
M71-R6000 ribbon cartridge
Cleaning strip
USB cable
CD containing instructions, print driver, and tutorial

Text Options

Multiple font sizes including auto-sizing
Super & sub scripts
Vertical text
Underline, italics, and bold
Expand or condense

More Types of Labels

Colored continuous tapes for equipment ID and safety warnings
PermaSleeve Wire Marker Sleeve
Self-laminating wire & cable markers
Terminal block and patch panel markers
Face plate & outlet markers
General-purpose industrial die-cut labels

More Symbols

Code 39 and 128 bar codes
500+ Symbols including electrical, voice/data, safety & protection, warning, and maching & operational

Function	BMP71 Printer Specifications
Label Types / Application Functions	Banner Portrait, Banner Landscape, Wire, Flag Labels, Patch Panel, Terminal Block, DESI Strip, 110 Block, 66 Block, Pipe Markers, Safety Labels, Fixed Length
Applications	Circuit Board Labeling, Data Communications Labeling, Facility, Safety & Maintenance Identification, General & Industrial Labeling, Healthcare ID, Laboratory ID, Security ID, Panel ID, Wire & Cable Marking, Pipe Marking
Print Technology	Thermal Transfer
Print Resolution	300 dpi
Print Speed	38 mm/sec
Color Capability	Single Color Printing
Keyboard	QWERTY
Backlit Screen	Yes
Portability	Yes
Weight	5.49 lbs.
Power Supply	Rechargable Batter, AC Power
PC Connect Printing	Yes - USB
Stand Alone Printing	Yes
Compatible Software	Labelmark Software, MarkWare Software, Windows based driver for 3rd party software use
Memory	200 MB
File Transfer from PC to Printer	Yes
Continuous vs. Die Cut Labels	Continuous and Die Cut Labels
Materials Supported	Continuous, Die Cut, Bluk, 400+ Stock Parts
Tape Widths	0.250" - 2.000"
Max Label Width	2.000"
Max Print Width	1.750"
Label Roll Length	50 ft/500 ft Bulk
Text Sizes	4 - 174 pt.
Multi-Line Print	Yes
Print Rotation	Yes
Serialization	Yes - Multiple and Linked
Barcode	39 and 128
Symbols	Over 500

Brady BMP71 Labels

Indoor Outdoor Labels

Economy Polypropylene Tape (B-529) - For use indoors on smooth, flat surfaces
I/O Vinyl Film (B-595) - Aggresive permanent adhesive, very pliable, conforms to rough surfaces, excellent resistance to oils, detergents, dirt, and many solvents.

General Labels

Paper Labels (B-424) - White matte paper labels
Polyester Labels - Clear glossy(B-430), white glossy(B-459), metallized glossy(B-486), white matte

General Adhesive Wire & Cable Makers

Repositionable Vinyl Cloth Labels (B-498) - Industrial strength labels ideal for curved surfaces. Firm adhesive can be removed cleanly and reapplied.
Nylon Cloth Labels (B-499) - Durable industrial strength labels designed to conform to curved surfaces.

Self-Laminating Wire Markers

Self-Laminating Vinyl Labels (B-427) - Has a protected printing area with superior chemical and abrasion resistance with a non-printed clear area that wraps around and over-laminates the printed text.

Voice and Data Communications

Polypropylene Tags (B-412) - Designed for high legibility and tensile strength
Polyester Labels (B-422) - Permanent adhesive, good for powder-coated or textured surfaces

Pre-Printed Die Cut Labels

Polyester Labels (B-428) - For applications that utilize bar codes, alphanumerics, graphic symbols and logos and require nameplate-like quality.
Polyester Labels (B-423) -Permanent Polyester Labels With Gloss Finish

Raised Panel Labels

Foam Backed Polyester Labels (B-593) - Customized rectangular and control button legend plates with less hassle and wasted time than engraved plates. Aggressive adhesive and solvent resistant.

Circuit Board & Component ID

Polyester Labels - White glossy (B-423) and metallized matte (B-428)
Polyimide Labels - Amber matte (B-426) and white glossy (B-457)

Fiber Optic Flags

Polypropylene Labels (B-425) Allows for more legible information on smaller diameter wires. Excellent solvent resistance and print performance.

Tags

Polyethylene Tags (B-145) - 9.5 mil cross laminated polyethylene film with a thermal transfer printable topcoat. used for a variety of tag applications including ID of multi-conductor cables, equipment, lockout, safety warning repair, and work in progress.

Tamper Indicating

Destructible Vinyl Labels - Tamper resistant tape destruct into tiny fragments when being removed. Making any attempts to remove the label very difficult and time consuming. White matte (B-351). Metalized (B-352)
Tamper Resistant Vinyl Film (B-530) - Specialty continuous vinyl film

Static Dissipative

Electrostatic Dissipative Polyester Labels (B-473) - Primarily used for printed circuit boards and electronic component labeling. White glossy.
Electrostatic Dissipative Polyimide Labels (B-478) - 1mm low profile, high temperature white glossy polyimide material with a permanent static dissipative adhesive and liner.

ToughStripe Print-on-Demand Floor Labels

Polyester (B-483) - High adhesion to textured metals and low surface energy plastics.

Temporary & Removable

Repositionable Vinyl (B-581) - Indoor labels designed with special adhesive that makes it easy to remove and re-apply. High gloss, durable, flexible, pressure sensitive adhesion.
