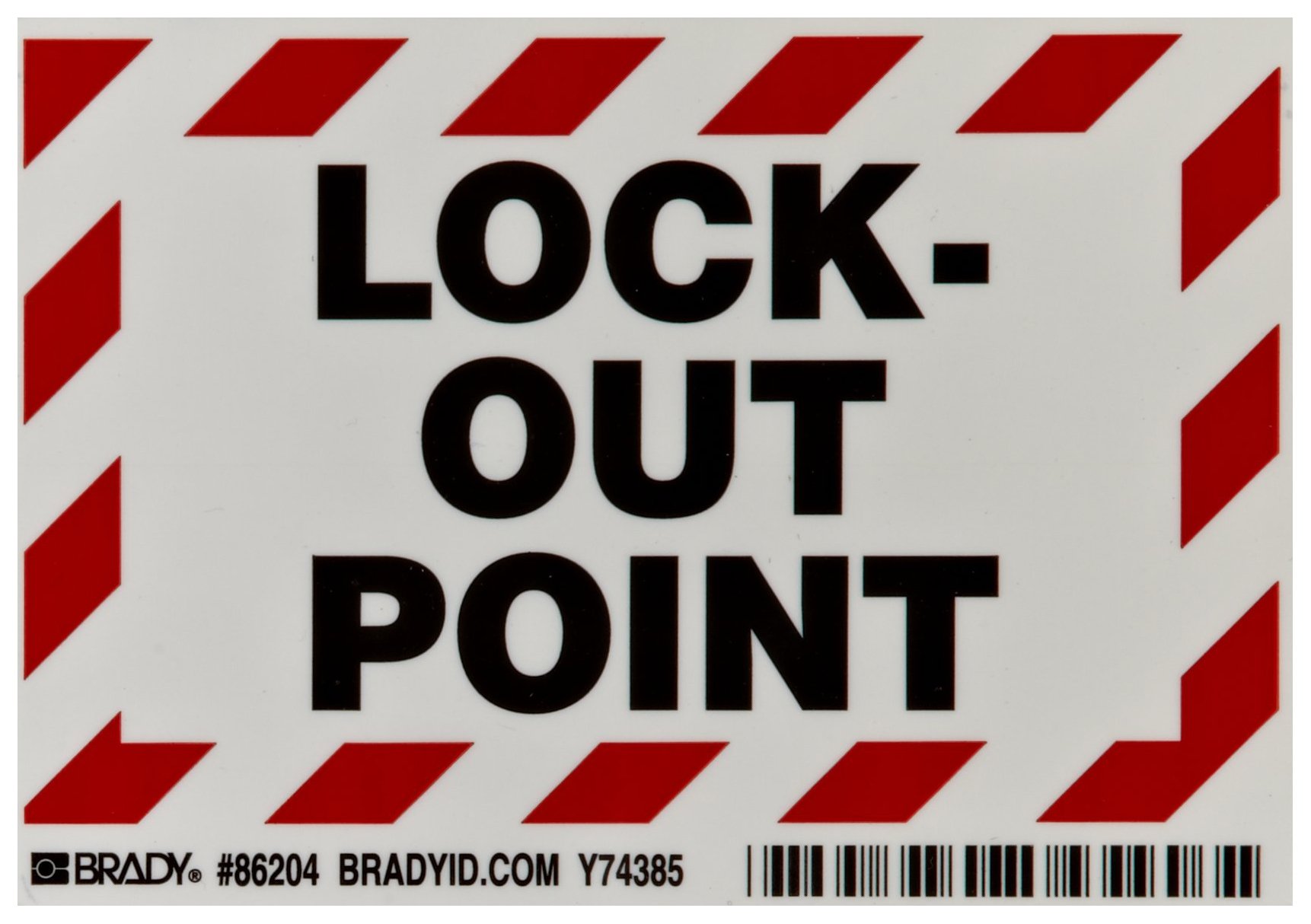

Brady 86204 3-1/2" Height, 5" Width, B-302 High Performance Polyester, Black And Red On White Color Lockout Point Labels, Legend "Lock-Out Point" (Pack Of 5)

Be the first to review this item

ASIN B003X27GEU

Specifications for this item
Number of Items
5
Overall Height
3.5  inches
Overall Width
5  inches
Color Name
Black and Red on White
Material Type
High Performance Polyester (B-302)
Part Number
86204
Temperature Range
-40/110  Degrees Celsius
UPC
754473862046
Size Name
5" x 3.5"
Brand Name
Brady
Marking Color
Black and Red
Manufacturer Series Number
86204
EAN
0754473862046
UNSPSC Code
55121704
LowerTemperature Range
-18  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 12 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Brady offers over 8,000 signs to meet the needs of your safety and facility identification
  • Brady's safety signs use internationally reported pictograms and help promote greater communication of safety messages
  • Brady B-302 is an indoor/outdoor high performance pressure sensitive safety sign and is surface printed polyester, with a polyester overlaminate
  • Brady B-302 is particularly suited for outdoor applications and in harsh environments where excellent abrasion and chemical resistance is required beyond a surface printed label
  • B-302 has a cold temperature adhesive that makes the sign able to apply at -18 degree celsius

Package Details

Shipping Weight: 0.05 pounds
Package Size: 5.1 x 3.6 x 0.2 inches

Product Description

Brady 86204 lockout point labels legend "LOCK-OUT POINT", B-302 high performance polyester, 3-1/2" height, 5" width, black and red on white color. Labels are made of durable, self-sticking polyester and most feature pictograms as well as text. Its Substrate Type is polyester film. The standard material colors are white, yellow and orange while standard legend colors are black, blue, red, green, white, yellow, orange and magenta. The adhesive Properties: adhesion to Steel (PSTC-1); 15 Minute Dwell (Average) - 70 ounce/inch (76 N/100mm); Ultimate Dwell (72 Hrs.) (Average) - 108 ounce/inch (118 N/100mm); Tack (ASTM D 2979) (Average) - 1170 g (11 N); Drop Shear (PSTC-7) (Average) - 20 Hrs. The Abrasion Resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A) is CS-17 wheels, 1000 g wts. with polyester laminate withstands up to 1000 cycles. The Gloss is 120 Gardner Units.
