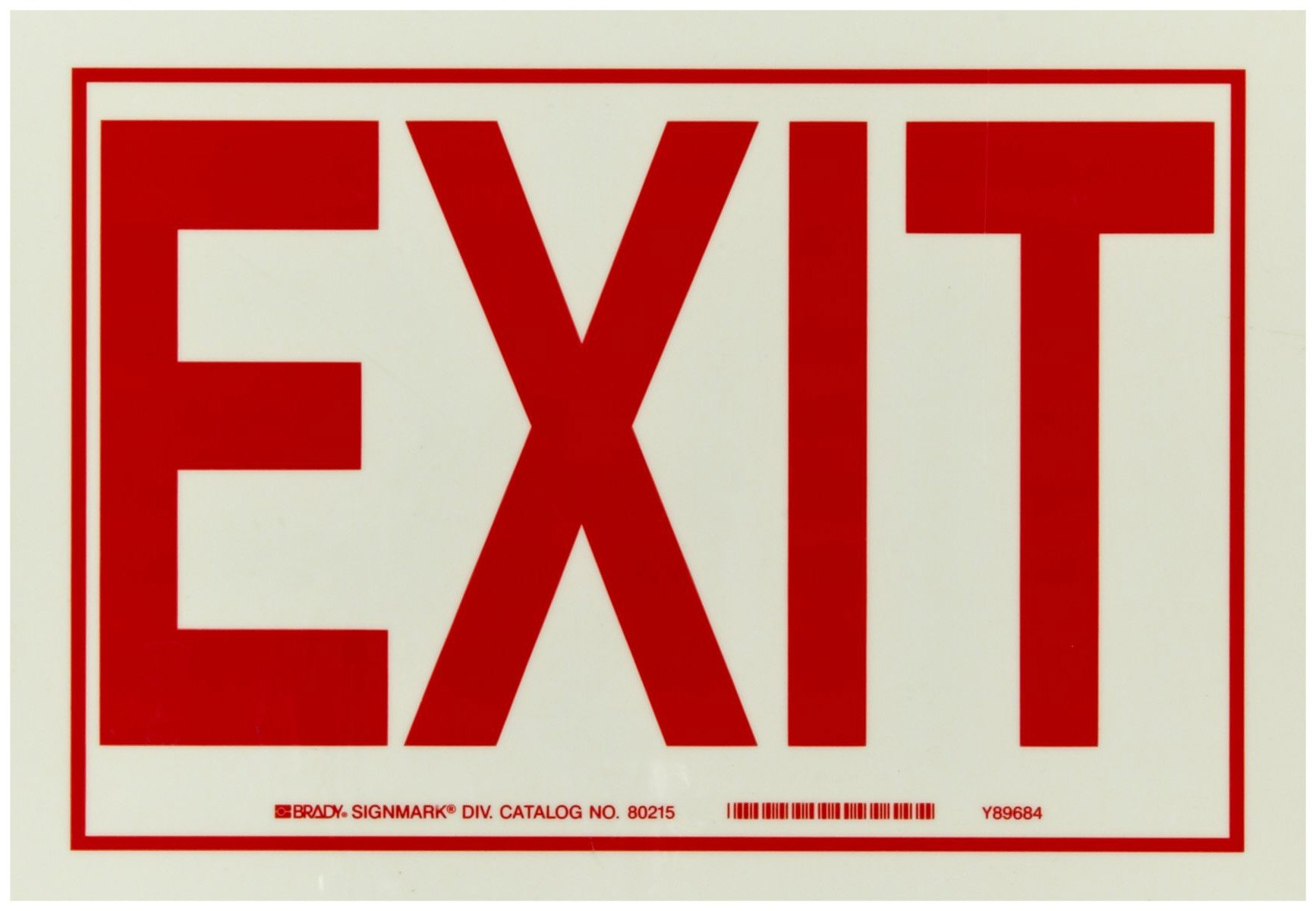

Brady 80215 7" Height, 10" Width, B-324 Polyester, Red On Phosphorescent Color Glow-In-The-Dark Exit And Directional Sign, Legend "Exit"

Be the first to review this item

ASIN B003X27E4W

Product Specifications
Part Number
80215
Material Type
Polyester
Number of Items
1
Color Name
Red/White
EAN
0754473802158
LowerTemperature Range
50  Degrees Fahrenheit
Manufacturer Series Number
80215
Marking Color
Red
Overall Height
7  inches
Overall Width
10  inches
Size Name
7" H x 10" W
Temperature Range
-40/176  Degrees Fahrenheit
UPC
754473802158
Specification for this product family (See all  products)
UNSPSC Code
55121704
Brand Name
Brady

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 17 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Brady offers many different exit/directional signs including bradyglo framed and frameless exit signs which are immediately visible in emergency situations
  • Brady's safety signs use internationally reported pictograms and help promote greater communication of safety messages
  • Brady B-324 is a non-toxic, non-radioactive, explosion safe (does not generate energy to induce explosions) material allowing for sanitary disposal
  • Charge time of 5 minutes 1000 lux will charge the sign for +10 hours of glow time, consistent glow life and unlimited rechargability throughout service life not recommended for outdoor application
  • Adhesive type is pressure sensitive acrylic ,substrate type is phosphorescent polyester film, standard legend colors are black, green, red, and blue

Package Details

Shipping Weight: 0.05 pounds
Package Size: 10 x 7 x 0.1 inches

Product Description

B-324 glow-in-the-dark exit and directional sign 80215 Brady offers many different exit/directional signs including bradyglo framed and frameless exit signs which are immediately visible in emergency situations. Brady B-324 BradyGlo material is a glow-in-the-dark (photoluminescent) pressure sensitive polyester used for exit and directional signs, identification of fire alarms and extinguishers, low location egress pathway markings, and directional systems for escape or evacuations routes. In accordance with ASTM 2030-99 Recommended Uses of Photoluminescent Safety Markings. Legend is "EXIT", red on phosphorescent color, 7" height, 10" width. Relevant Standards is Meets or exceeds the following standards. ASTM E-2072-00 / ASTM E-2073-00, ASTM E-162, ASTM E-648, ASTM E-662, IMO Resolution A.752(18), ISO/CD 15370, Marine safety committee MSC.27(61), DIN 67 510 (Parts 1 - 4), and PSPA Standard 002 Part 2. Meets OSHA 1910.37, Lloyd's register SAS F050294.p. Illuminescent characteristics is charge time of 5 minutes 1000 lux will charge the sign for +10 hours of glow time. Consistent glow life and unlimited rechargability throughout service life. Illumination is 21.6 lux (2 foot-candles) for 2 hours with a 4100k cool white fluorescent lamp. Luminance (after illumination), 10 minutes greater than 25 mcd/m2, 60 minutes greater than 5 mcd/m2, 90 minutes greater than 3 mcd/m2. Properties of adhesive are adhesion to stainless steel (PSTC-101) 15 Minute dwell (Average) - 110 oz/in. Ultimate dwell (72 hours) (Average) - 110 oz/in. Abrasion resistance (Method 5306 Of U.S. Federal Test Method Standard Number 191A) CS-10 Wheels, 250 gram weight legend withstands up to 100 cycles, cs-17 wheels, 1000 gram weight, substrate withstands up to 9000 cycles. Gloss (ASTM D-523) is 60 degree - 121 gardner units. Expected service life of adhesive and printed legend is average of 5 years. Outdoor applications is not recommended for outdoor application.
