Brady 7186-3C 2-1/4" Height, 2-3/4" Width, B-946 High Performance Vinyl, Black On White Color Self-Sticking Vinyl Pipe Marker, Legend "Medical Vacuum"
Be the first to review this item
ASIN B002BWMGI4
Specifications for this item
- Brand Name
- Brady
- EAN
- 0754473877446
- LowerTemperature Range
- -18 Degrees Celsius
- Manufacturer Series Number
- 87744
- Marking Color
- Black
- Material Type
- Vinyl
- Number of Items
- 1
- Overall Height
- 2-1/4 inches
- Overall Width
- 2-3/4 inches
- Part Number
- 7186-3C
- Temperature Range
- -40/180 Degrees Fahrenheit
- UPC
- 754473877446
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 22? Order in-stock items in the next 22 hours 40 minutes and choose One-Day Shipping at checkout.
Key Features
- Markers meet the requirements of the ASME (ANSI) A131 standard for the identification of piping system contents when used with directional flow arrow tape
- Markers are made of durable vinyl that is ideal for indoor and outdoor environments and are supplied on a coated backing material that makes handling and installation easy
- Brady B-946 indoor or outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product
- Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
- Marker ends should be banded with brady directional flow arrow tape to indicate pipe content flow direction
Package Details
Shipping Weight:
0.05 pounds
Package Size:
14 x 3 x 0.1 inches
Product Description

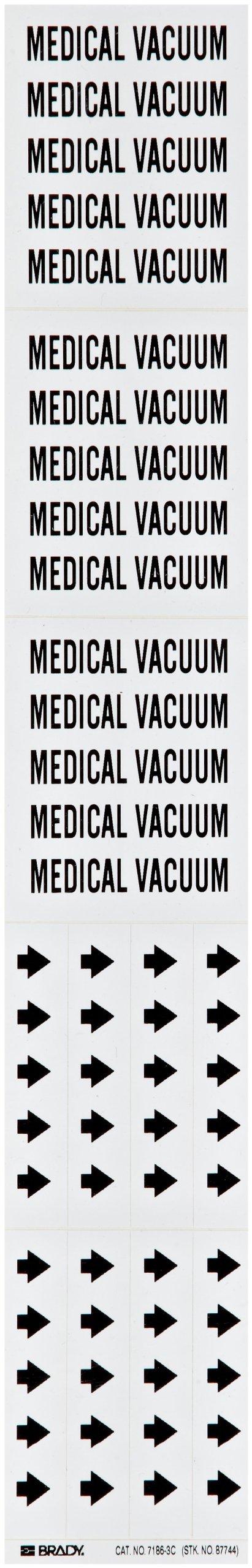

Brady 7186-3C Self-sticking vinyl pipe marker. Legend is "MEDICAL VACUUM". Material type is B-946 high performance vinyl. Color is black on white. Size is 2-1/4" height, 3-3/4" width. It is used for pipemarkers, arrow tape, letters, vehicle placards, pedestal markers, warning panels and safety signs. Permanent cold temperature pressure sensitive acrylic. Vinyl film substrate, standard material colors are white, red, yellow, green, blue and orange. Standard legend colors are black, blue, red, green, white, yellow, orange and magenta. Properties of adhesive are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (Average) 80oz/in. (87.5 N/100mm), ultimate dwell to stainless steel (72 Hours) (Average) 85 oz/in. (93 N/100mm), 15 minute dwell to polypropylene (Average)-60 oz/in. (65 N/100mm), ultimate dwell to polypropylene (72 Hours) (Average)-69 oz/in. (75 N/100mm), 5 minute dwell to powder coated metal (Avg)-60 oz/in. (65 N/100mm), ultimate dwell to powder coated metal (72 Hours) (Average)-75 oz/in. (82 N/100mm)(Note Not recommended for adhesion to bare concrete or unpainted wood tack (ASTM D 2979) (Average) 1100 gram (10.5 N). Abrasion resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A) is CS 10 wheels, 250 gram weight. Legend withstands up to 350 cycles. Gloss is 60 degrees 50 gardner units. Average Outdoor durability is 8-10 years (Average expected outdoor life of product will depend on user definition of failure, climate, mounting techniques and material color).
