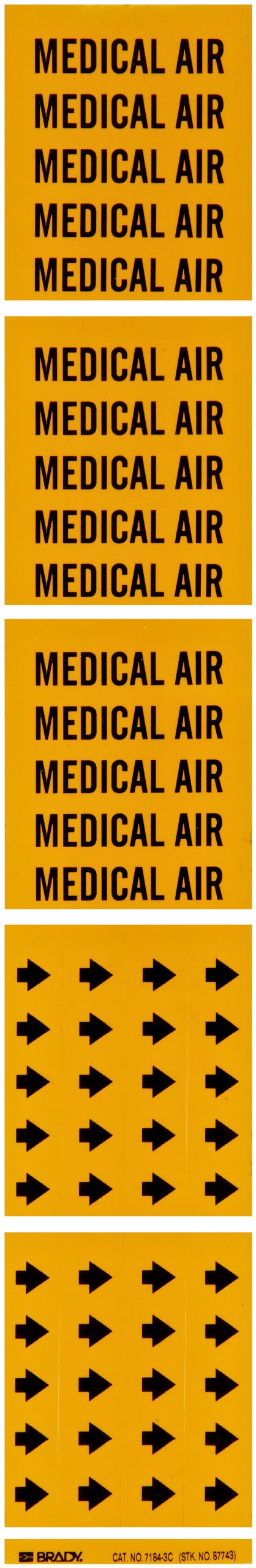

Brady 7184-3C 2-1/4" Height, 2-3/4" Width, B-946 High Performance Vinyl, Black On Yellow Color Self-Sticking Vinyl Pipe Marker, Legend "Medical Air"

Be the first to review this item

ASIN B002C1XEQC

Specifications for this item
Number of Items
1
Overall Height
2-1/4  inches
Overall Width
2-3/4  inches
Material Type
Vinyl
Part Number
7184-3C
Temperature Range
-40/180  Degrees Fahrenheit
UPC
754473877439
Brand Name
Brady
Marking Color
Black
Manufacturer Series Number
87743
EAN
0754473877439
UNSPSC Code
27112300
LowerTemperature Range
-18  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 7 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Markers meet the requirements of the ASME (ANSI) A131 standard for the identification of piping system contents when used with directional flow arrow tape
  • Markers are made of durable vinyl that is ideal for indoor and outdoor environments and are supplied on a coated backing material that makes handling and installation easy
  • Brady B-946 indoor or outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product
  • Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
  • Marker ends should be banded with brady directional flow arrow tape to indicate pipe content flow direction

Package Details

Shipping Weight: 0.05 pounds
Package Size: 24 x 3 x 0.1 inches

Product Description

Brady 7184-3C Self-sticking vinyl pipe marker. Legend is "MEDICAL AIR". Material type is B-946 high performance vinyl. Color is black on yellow. Size is 2-1/4" height, 3-3/4" width. It is used for pipemarkers, arrow tape, letters, vehicle placards, pedestal markers, warning panels and safety signs. Permanent cold temperature pressure sensitive acrylic. Vinyl film substrate, standard material colors are white, red, yellow, green, blue and orange. Standard legend colors are black, blue, red, green, white, yellow, orange and magenta. Properties of adhesive are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (Average) 80oz/in. (87.5 N/100mm), ultimate dwell to stainless steel (72 Hours) (Average) 85 oz/in. (93 N/100mm), 15 minute dwell to polypropylene (Average)-60 oz/in. (65 N/100mm), ultimate dwell to polypropylene (72 Hours) (Average)-69 oz/in. (75 N/100mm), 5 minute dwell to powder coated metal (Avg)-60 oz/in. (65 N/100mm), ultimate dwell to powder coated metal (72 Hours) (Average)-75 oz/in. (82 N/100mm)(Note Not recommended for adhesion to bare concrete or unpainted wood tack (ASTM D 2979) (Average) 1100 gram (10.5 N). Abrasion resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A) is CS 10 wheels, 250 gram weight. Legend withstands up to 350 cycles. Gloss is 60 degrees 50 gardner units. Average Outdoor durability is 8-10 years (Average expected outdoor life of product will depend on user definition of failure, climate, mounting techniques and material color).
