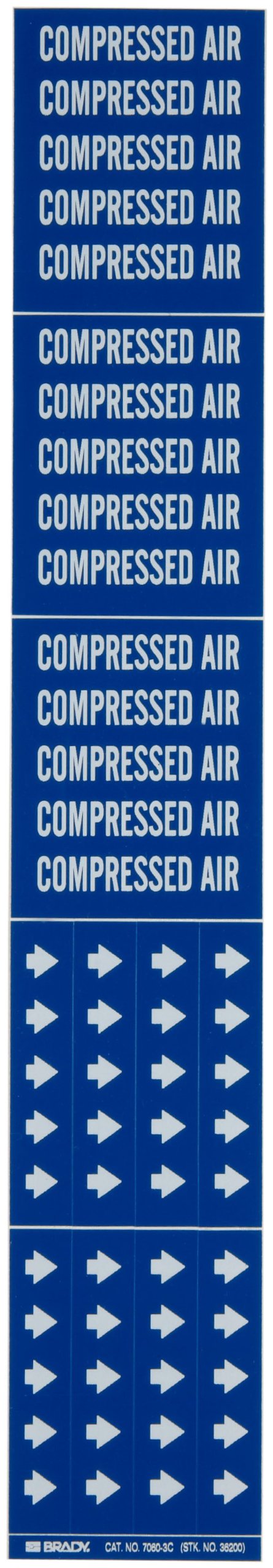

Brady 7060-3C 2-1/4" Height, 2-3/4" Width, 3/4" Or Less Outside Pipe Diameter, B-946 High Performance Vinyl, White On Blue Color Self-Sticking Vinyl Pipe Marker Legend "Compressed Air"

Be the first to review this item

ASIN B003X270J6

Specifications for this item
Number of Items
Overall Height
2-1/4  inches
Overall Width
2-3/4  inches
Material Type
Outside Diameter
3/4  inches
Part Number
Temperature Range
-40/180  Degrees Fahrenheit
Item Weight
0.36 pounds
Brand Name
Marking Color
Manufacturer Series Number
LowerTemperature Range
-18  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, May 5? Order in-stock items in the next 21 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Markers are made of durable vinyl that is ideal for indoor and outdoor environments and are supplied on a coated backing material that makes handling and installation easy
  • Marker ends should be banded with brady directional flow arrow tape to indicate pipe content flow direction
  • Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
  • Markers meet the requirements of the ASME (ANSI) A13.1 standard for the identification of piping system contents when used with directional flow arrow tape
  • Average outdoor durability 8-10 years (average expected outdoor life of product will depend on user definition of failure, climate, mounting techniques and material color)

Package Details

Shipping Weight: 0.05 pounds
Package Size: 14 x 3 x 0.1 inches

Product Description

Brady 36200/7060-3C Self-Sticking Vinyl Pipe Markers. Material of B-946 is High Performance Vinyl. Brady B-946 indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product is used for pipemarkers, arrow tape, numbers and letters, vehicle placards, pedestal markers, warning panels and safety signs. Adhesive type is permanent cold temperature pressure sensitive acrylic, substrate type is vinyl film. Adhesive properties are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (Avg.) - 80 ounce/inch, ultimate dwell to stainless steel (72 hours) (Avg.) - 85 ounce/inch, 15 minute dwell to polypropylene (Avg.) - 60 ounce/inch, ultimate dwell to polypropylene (72 hours) (Avg.) - 69 ounce/inch, 15 minute dwell to powder coated metal (Avg) - 60 ounce/inch, ultimate dwell to powder coated metal (72 hours) (Avg.) - 75 ounce/inch. (Note: Not recommended for adhesion to bare concrete or unpainted wood). Tack (ASTM D 2979) (Avg.) - 1100 gram. Abrasion resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A) is CS 10 wheels, 250 gram wts., legend withstands up to 350 cycles. Gloss is 60 degree 50 gardner units. Legend "COMPRESSED AIR", White on Blue Color, 2-1/4" Height, 2-3/4" Width. Three markers per card plus 8 strips of arrow tape.
