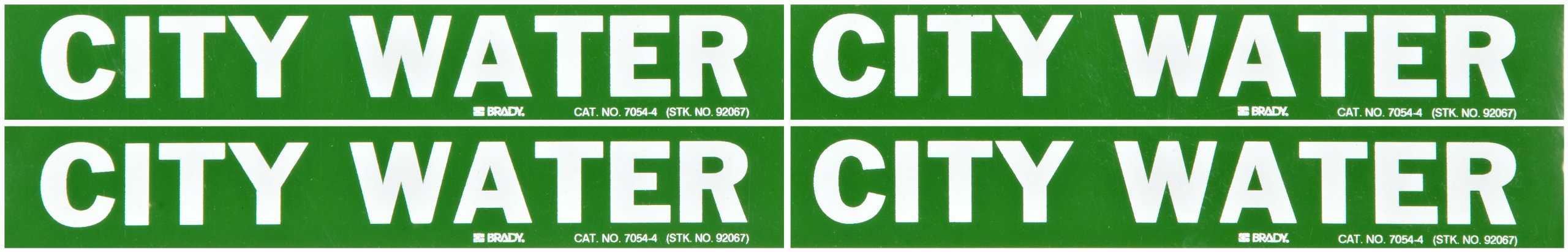

Brady 7054-4 1-1/8" Height, 7" Width, 3/4" - 2-3/8" Outside Pipe Diameter, B-946 High Performance Vinyl, White On Green Color Self-Sticking Vinyl Pipe Marker, Legend "City Water"
Be the first to review this item
ASIN B001AQJL76
Specifications for this item
- Brand Name
- Brady
- EAN
- 0754473920678
- LowerTemperature Range
- -18 Degrees Celsius
- Manufacturer Series Number
- 92067
- Marking Color
- White
- Material Type
- Vinyl
- Number of Items
- 1
- Outside Diameter
- 3/4 - 2-3/8 inches
- Overall Height
- 1-1/8 inches
- Overall Width
- 7 inches
- Part Number
- 7054-4
- Temperature Range
- -40/82 Degrees Celsius
- UPC
- 754473920678
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 22 hours 41 minutes and choose One-Day Shipping at checkout.
Key Features
- Markers are made of durable vinyl that is ideal for indoor and outdoor environments and are supplied on a coated backing material that makes handling and installation easy
- Marker ends should be banded with brady directional flow arrow tape to indicate pipe content flow direction
- Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
- Markers meet the requirements of the ASME (ANSI) A13.1 standard for the identification of piping system contents when used with directional flow arrow tape
- Average outdoor durability 8-10 years (average expected outdoor life of product will depend on user definition of failure, climate, mounting techniques and material color)
Package Details
Shipping Weight:
0.05 pounds
Package Size:
12 x 3 x 0.1 inches
Product Description
Brady 92067/7054-4 B-946 indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product used for pipemarkers, arrow tape, numbers and letters, vehicle placards, pedestal markers, warning panels and safety signs. Permanent cold temperature pressure sensitive acrylic adhesive, vinyl film substrate type, adhesive properties are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (average)- 80ounce/inch (87.5 N/100mm), ultimate dwell to stainless steel (72 hours) (average)- 85 ounce/inch (93 N/100mm), 15 minute dwell to polypropylene (average) 60 ounce/inch (65 N/100mm), ultimate dwell to polypropylene (72 hours) (average) 69 ounce/inch (75 N/100mm), 15 minute dwell to powder coated metal (average) 60 ounce/inch (65 N/100mm) ultimate dwell to powder coated metal (72 hours) (average) 75 ounce/inch (82 N/100mm), abrasion resistance (method 5306 of U.S. federal test method standard no. 191A) is CS 10 wheels, 250g weights, Legend is withstands up to 350 cycles,60 degree 50 gardner units gloss. Legend is "CITY WATER", white on green color. Measures 7" width by 1-1/8" height by 3/4" to 2-3/8" outside pipe diameter by 3/4" character height.
